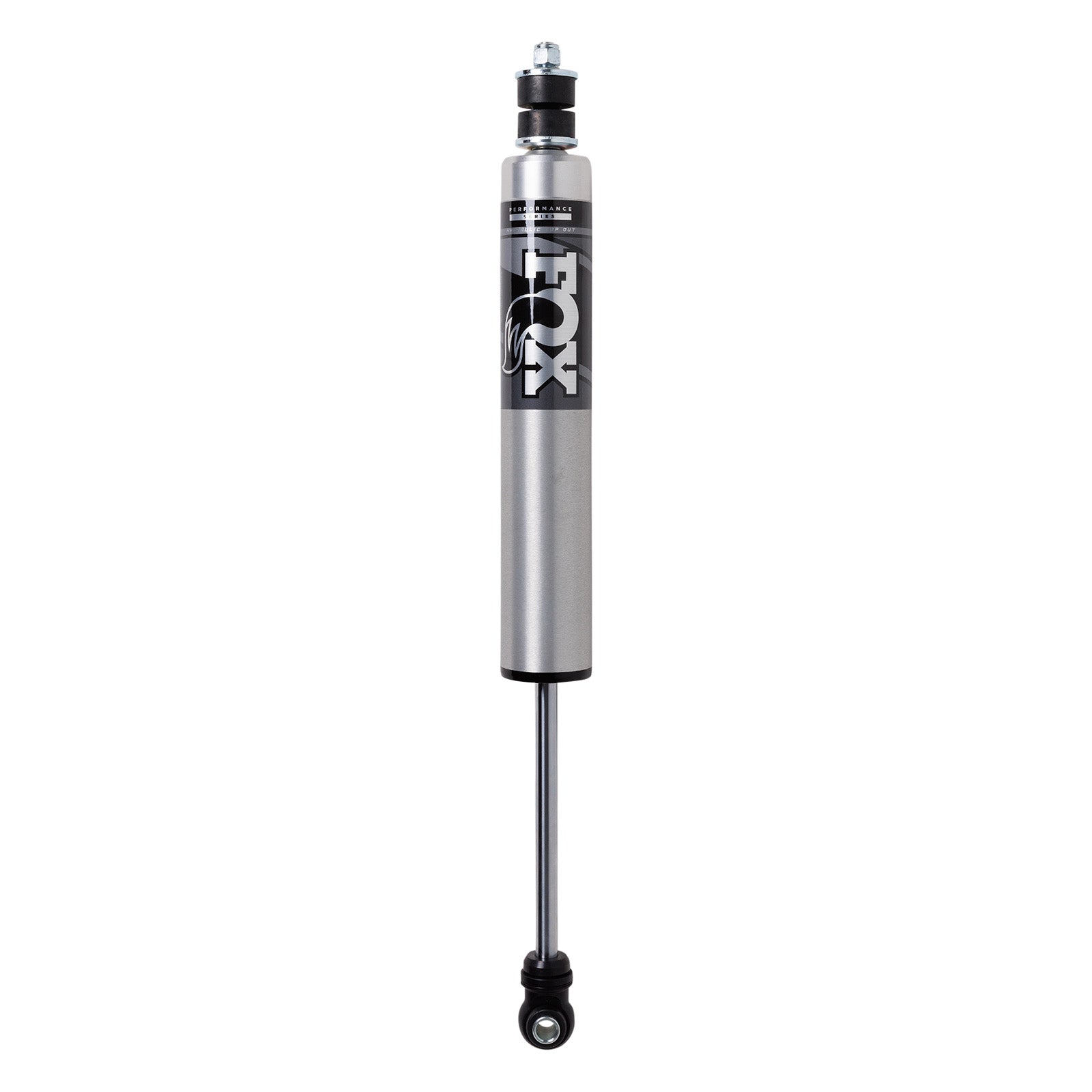

PERFORMANCE SERIES 2.5 SMOOTH BODY IFP HTO SHOCK

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

• 2.5” Impact extruded 6061-T6 aluminum shock body
• Type II clear-anodized body plating
• High-flow velocity-sensitive damping
• 5/8” hard chrome shaft
• Internal floating piston (IFP)
• Hydraulic Top Out (HTO) piston
• Corrosion resistant
• Application specific tune
• Fully rebuildable and re-tunable

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878900683
• Body Diameter (in): 2.5
• Body Material: Aluminum
• Bottom Mount: Eyelet
• Compressed Length (in): 16.28
• Extended Length (in): 23.97
• Fox Catalog: TRUCK
• Label Name: 14-ON Ram 2500, 13-ON Ram 3500, Front, 2.5 Truck PS, IFP, 2-3” Lift, HTO
• Reservoir Type: Internal Floating Piston
• Series: Performance
• Top Mount: Stem
• Travel (in): 7.69
• Type: Smooth Body

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.0000 x 3.0000 x 3.0000 inches
• Weight: 7.0000 POUNDS
