Perf RPM Chrysler Big Block CNC Chamber Hyd Flat

Designed specifically for B & RB series Big-Block Chrysler engines, the Performer RPM 230 cc Cylinder Heads are engineered to deliver the next level of power and performance. These premium cylinder heads feature high-quality components and precision machining to meet the demands of serious street and strip enthusiasts. Manufactured in Edelbrock’s ISO-certified facility in San Jacinto, California, each cylinder head is machined to exacting tolerances for exceptional quality and consistency. With larger 230 cc ports than comparable RPM heads and 73 cc fully CNC combustion chambers, this new design is ideal for high-performance applications that require increased airflow and power, while still maintaining compatibility with off-the-shelf components. These heads are intended for B and RB series Big-Block Chrysler engines not required to meet emission standards. Each Performer RPM 230 cc cylinder head comes fully assembled with premium valvetrain components, including stainless steel one-piece swirl-polished intake and exhaust valves with undercut stems for improved flow, manganese bronze valve guides, ductile iron valve seats, 2-ring positive oil control seals, hardened steel valve spring locators, and Edelbrock Sure-Seat valve springs, retainers, and keepers. Edelbrock’s patented Clean-Cast Technology further enhances performance by eliminating internal casting flaws and creating a smoother surface finish, which improves airflow and coolant circulation. The result is increased power and better cooling right out of the box, making these heads an excellent performance value for any Big-Block Chrysler build. For application-specific use, Part 60025 is designed for Hydraulic Roller applications, while Part 60029 is ideal for Hydraulic Flat Tappet setups.

• Large 230cc Intake ports for maximum flow from an "as-cast" port

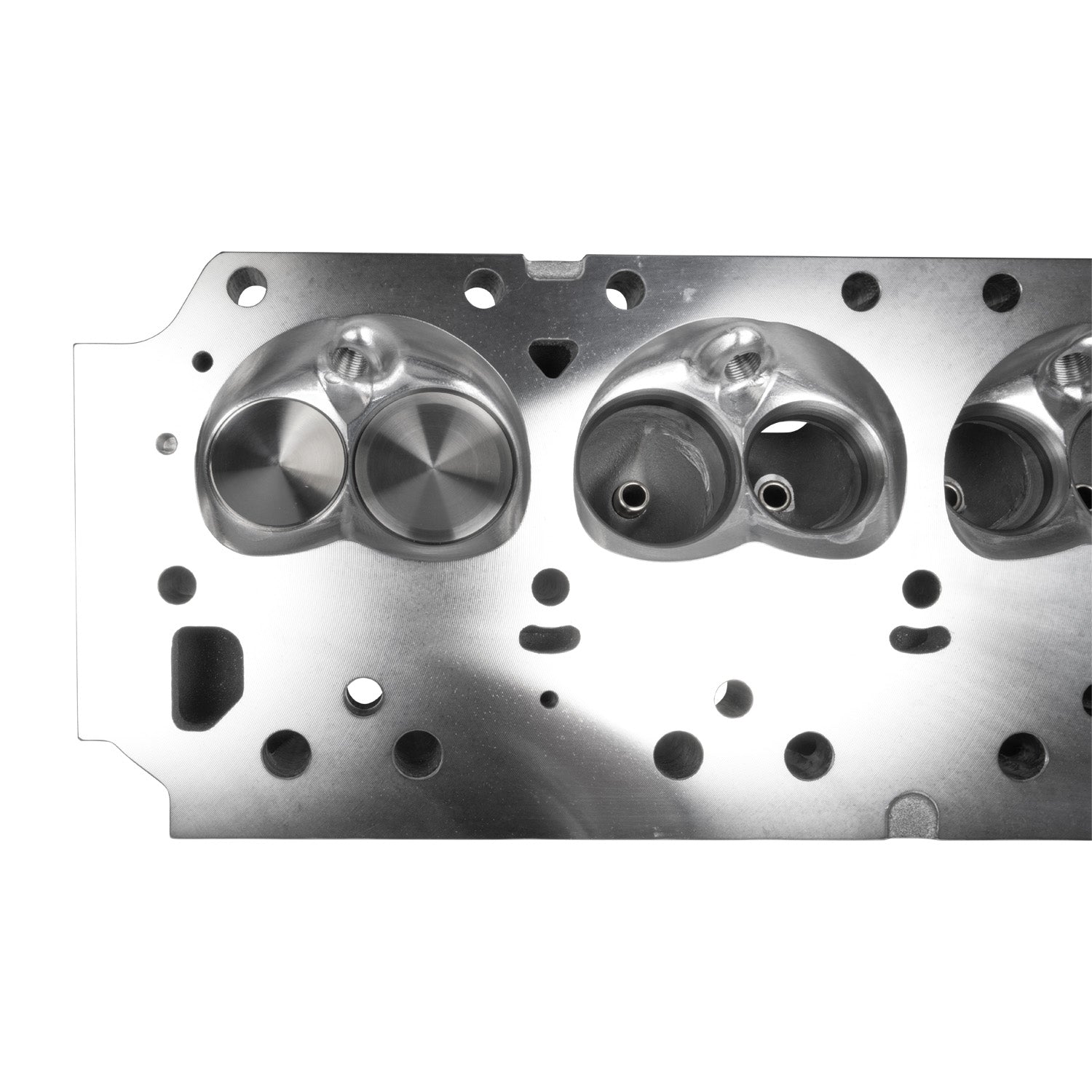

• CNC combustion chambers for cylinder-to-cylinder consistency and performance
• Assembled with spring set for Hydraulic Flat Tappet Camshafts

Vehicle Specific

• 1961-79 Chrysler 361-440 c.i.d. Wedge engines

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347600298
• CNC Machined Exhaust Port: No
• CNC Machined Intake Port: No
• CNC-Machined Combustion Chamber: Yes
• CNC-Machined Exhaust Runner: No
• CNC-Machined Intake Runner: No
• Combustion Chamber Volume: 75
• Cross sell / Upsell Part Numbers: 1723 - Edelbrock Performer RPM Series fuel pump is for Big-Block Chrysler 2191 - Performer 440 Intake Manifold for Chrysler, RB Series 413-440 Engines 7193 - Performer RPM Big Block Chrysler RB Intake Manifold 8592 - Big-Block Chrysler Victor Cylinder Head Bolt Kit 85922 - Edelbrock E-Series Cylinder Head Bolt Kit #85922 for Chrysler big-block
• Cylinder Head Style: Assembled
• Exhaust Port Location: Standard
• Exhaust Port Shape: Rectangle
• Exhaust Runner Volume: 75
• Exhaust Valve Angle: 15
• Exhaust Valve Diameter: 1.81
• Exhaust Valve Job Diameter: 1.81
• Exhaust Valve Stem Diameter: 0.341
• Guide Plates Included: No
• Intake Port Location: Standard
• Intake Port Shape: Rectangle
• Intake Runner Volume: 230
• Intake Valve Angle: 15
• Intake Valve Diameter: 2.19
• Intake Valve Job Diameter: 2.19
• Intake Valve Stem Diameter: 0.341
• Material: Aluminum
• Quantity: Single
• Related Products: 7325 - Cylinder Head Gasket Set for Chrysler 7591 - Valve Cover Gasket Set for Chrysler 7226 - Exhaust Manifold Gasket Set for Chrysler 7225 - Intake Manifold Gasket Chrysler Big-Block; 361-383-400 & 413-426-440; 1958-79 1076 - Edelbrock high quality RTV silicone 3 oz OE silicone gaskets
• Retainer Diameter: 1.5
• Retainer Material: Steel
• Spark Plug Style: Angle
• Steam Holes Drilled: No
• Valve Cover Mounting Style: Perimeter bolt
• Valve Guide I.D: 0.34
• Valve Guide Material: Manganese Bronze
• Valve Guide Size O.D: 0.502
• Valve Lock Material: Steel
• Valve Lock Style: 7
• Valve Locks Included: Yes
• Valve Spring Diameter: 1.55
• Valve Spring Maximum Lift: 0.65
• Valve Spring Type: Dual

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.75 x 10.5 x 8.25 inches
• Weight: 32.2 POUNDS
