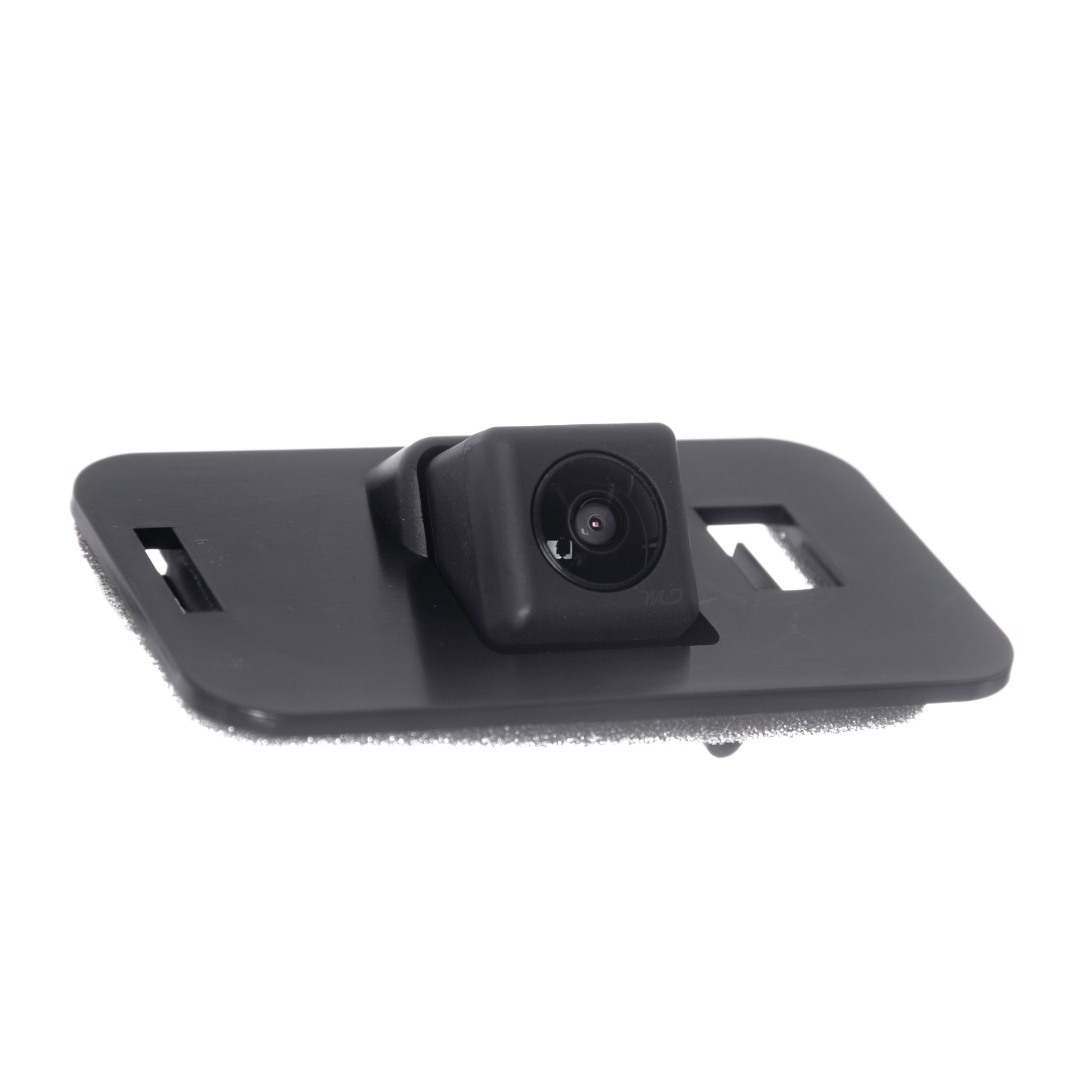

PartsMT Insurance Grade OE Rear Camera - Replaces OEM # 23405751

PartsMT Insurance Quality OE Replacement Aftermarket Backup Camera 2015 Cadillac (Escalade/Escalade ESV w/ Surround View) / 2016 Cadillac (Escalade/Escalade ESV Base/Luxury/Premium Model w/ AVM) / 2015-2016 GMC Yukon/XL/Denali w/ Surround View Replaces Model Number: 23405751, 23135152, 23324497 For use with: 2016 Cadillac Escalade (Base, Luxury, Platinum, Premium) 2015 Cadillac Escalade (Base, Luxury, Platinum, Premium) This is an aftermarket backup camera, not OEM. This camera is Plug-N-Play and connects directly into vehicles existing wire harness connector. No retrofitting or software updates needed. If your vehicle currently does NOT have a backup camera system, this camera will not work. Double check your part number with your local dealership's parts department prior to ordering. Camera Specs: Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic) Minimum Illumination : .1 Lux light sensitivity Signal System : NTSC/PAL Effective Pixel : 728 x 582 Electronic Shutter : 1/50 to 1/100,000 seconds Resolution : 600 TV lines Angle : 170 Degrees Waterproof Rate : IP68 Power : DC 6v-12v

• Direct Plug-N-Play Replacement Rear Camera

Attributes:

• Brand Name: PartsMT
• GTIN: 00810080510388
• Weather Resistant: Yes

Extended Information:

• Country of Origin:
• Emissions : Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 3 x 3 x 3 inches
• Weight: 0.5 POUNDS
