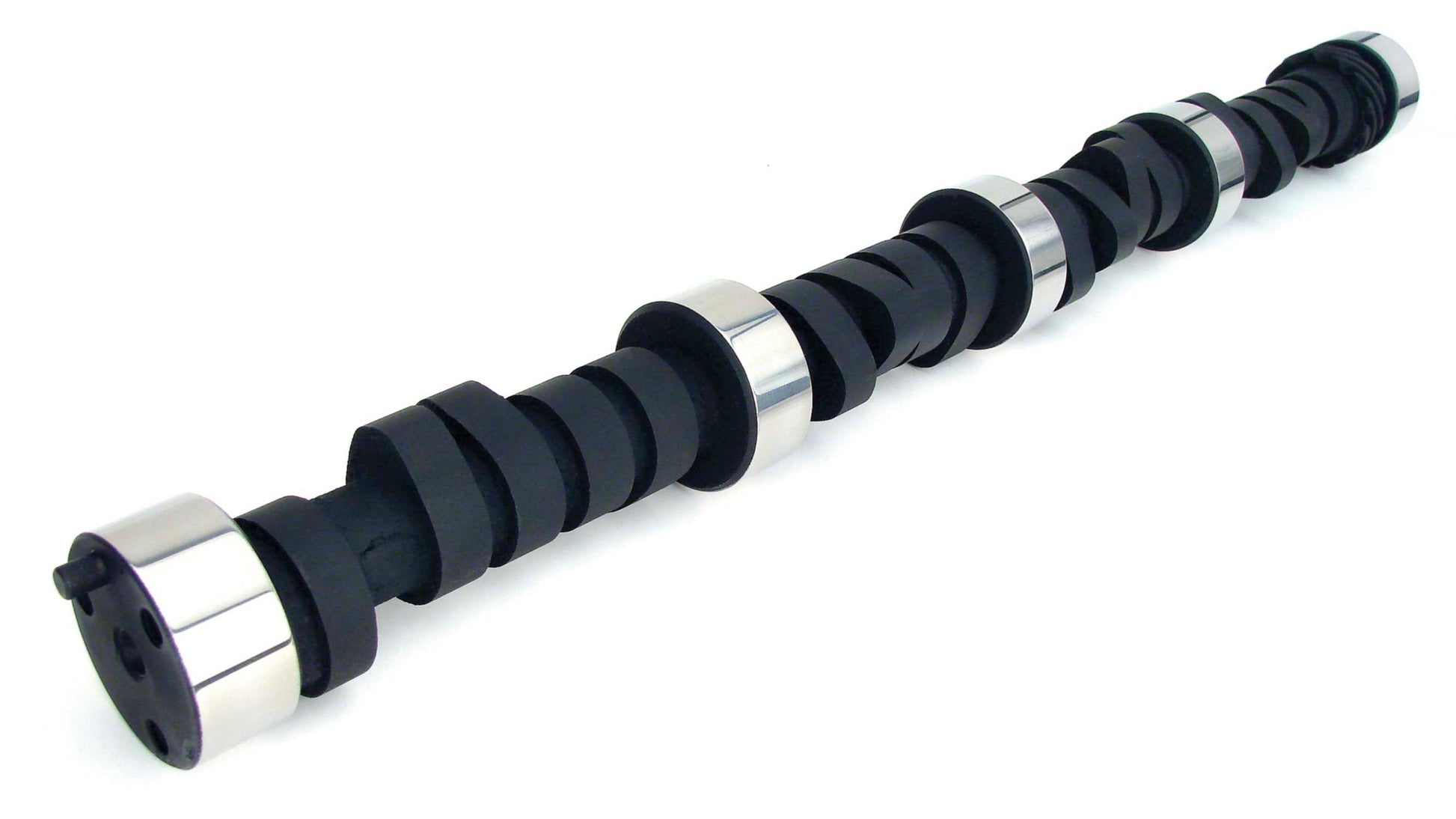

Nitrous HP 224/236 Hydraulic Flat Cam For Chevrolet Small Block

Fits '58-'02 262-400 c.i.d. Chevy Small Blocks</li><li>Street machines with 125+ HP nitrous - 2200+ stall, Gears - Choppy idle</li><li>Xtreme Energyâ„¢ Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.</li><li>For Carb or Tunable Fuel Injection3</li></ul> 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for <a href="{{store url}}catalogsearch/result/?q=08-1000&Category_Code=">'87-'90 Blocks</a> or <a href="{{store url}}catalogsearch/result/?q=08-1001&Category_Code=">'91-'02 Blocks</a> can be purchased, as well as a <a href="{{store url}}Chevrolet-gm/small-block-gen-i-305-350-87-98-Roller/Camshafts.html">'87+ OE-Style Hydraulic Roller Cam</a>. Vehicle Specific

• Fits Chevrolet GEN 1 Small Blocks including the 262
• or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early
• but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1
• LS2
• LS3 or any LS-based 4. 8
• 5. 3
• 5. 7
• 6. 0 and 6. 2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
• 265
• 267
• 283
• 302
• 305
• 307
• 327
• 350 and 400. Does not fit LT1/LT4

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584023845
• Advertised Exhaust Duration: 286
• Advertised Intake Duration: 268
• Amazon ASIN: B000V9CVAW
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 2,000-6,200
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Flat Tappet
• Cam and Lifter Kit Upgrade: CL12-560-4
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Camshaft Series: Nitrous HP
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Exhaust Duration at .050 inch Lift: 236
• Exhaust Valve Lift: 0.49
• Grind Number: NX268H
• Intake Duration at .050 Inch Lift: 224
• Intake Valve Lift: 0.477
• K-Kit Upgrade: K12-560-4
• Lifter Type: Hydraulic Flat Tappet
• Lifters Included: No
• Lobe Separation: 113
• SK-Kit Upgrade: SK12-560-4
• Usage: Street/Strip
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.93 x 2.91 x 2.59 inches
• Weight: 9 POUNDS
