Manual Transmission

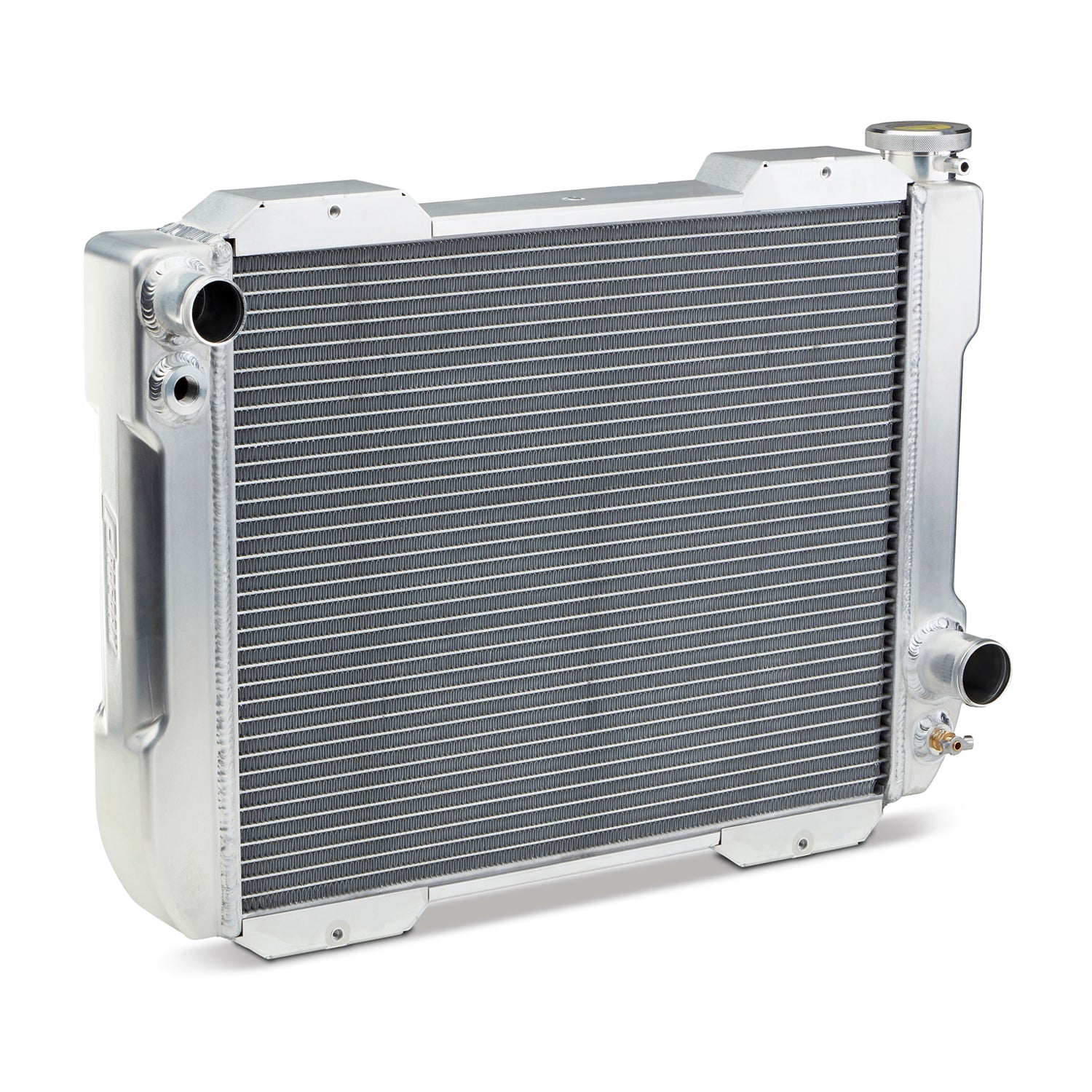

1-2-3 Radiators are just like the name implies, EASY! Proform s new line of radiators and modular accessories all fit together just like they should. These aren t just your ordinary single pass radiators, they offer beautifully tig-welded tanks with a slick looking profile design that is unique to Proform. These radiators also incorporate PROFORM s unique Four-Corner design that makes adding a shroud or bracket easy, because all the mounting holes line up. All radiators are dual one-inch tube, single pass, with optimized louver design to maximize cooling, and deep draw headers for an extra solid tube/header seal. No epoxy or anything else like that just tight tolerances all around. Building your custom cooling system is easy: Stage 1: Start by choosing the radiator that is the right width and inlet/outlet configuration for your vehicle. Stage 2: Choose a single fan or dual fan shroud or bracket that fits your radiator. Stage 3: Choose the correct fan(s) to match your shroud/bracket. To top it off, throw a fan controller into your package and you've just built yourself a really nice cooling system that's ready for the show, streets, or strip!

Attributes:

• Brand Name: Proform
• GTIN: 00037995710065
• Cap Color: Silver
• Color: Silver
• Condition: NEW
• Core Thickness (in): 2.4
• Core Width (in): 17
• Feature/Benefit: Stage 1 All Aluminum Radiator. Optional Shroud and Fans Available
• Finish: Natural
• Height (IN): 18
• Inlet Diameter (in): 1.5
• Inlet Location: Driver Side
• Mounting Style: Universal
• Outlet Diameter (in): 1.75
• Outlet Location: Passenger Side
• Overall Width (in): 22.3 inch
• Part Type: Radiator
• Series: 1-2-3
• Shroud Color: Natural
• Transmission Type: Manual

Extended Information:

• Country of Origin: TW
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
