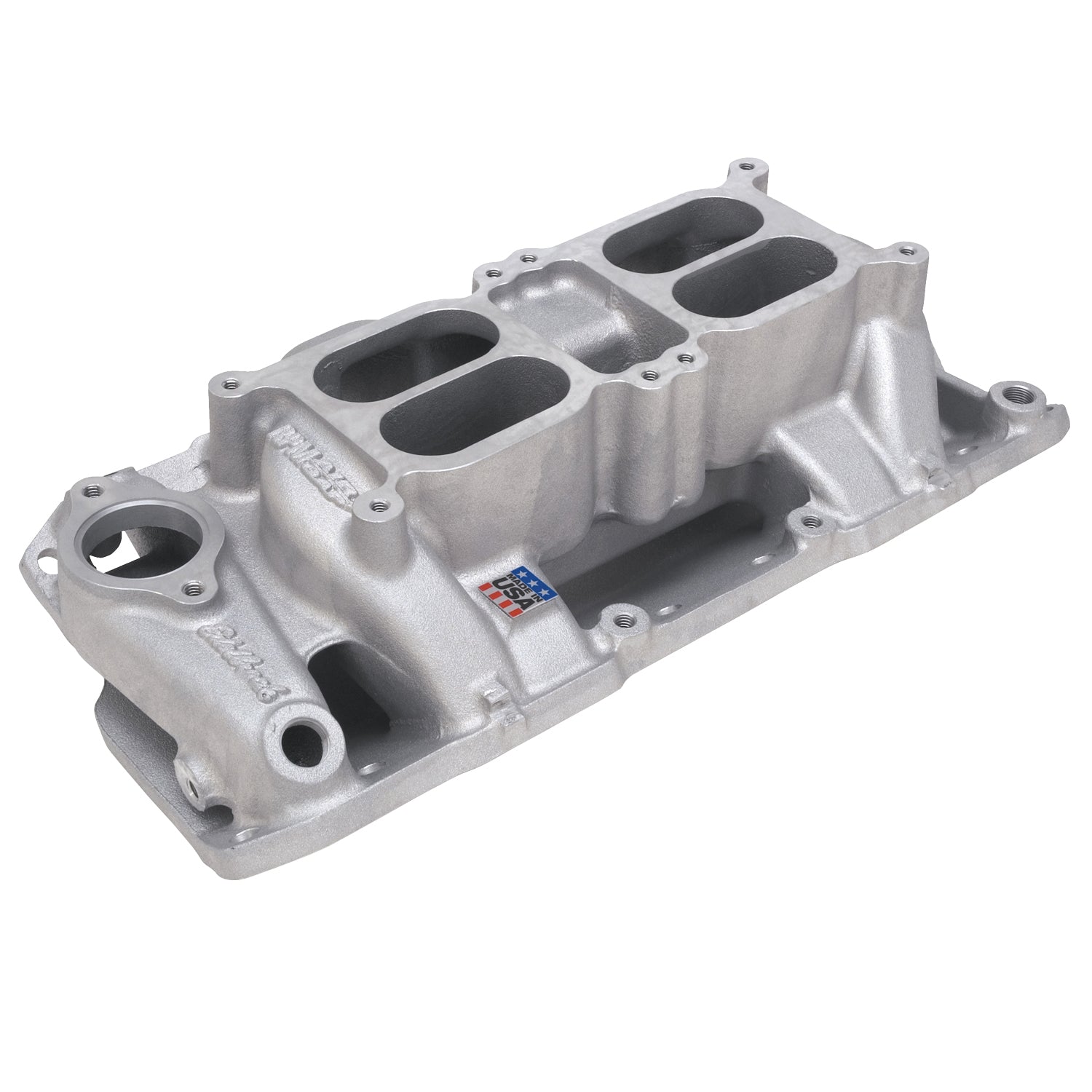

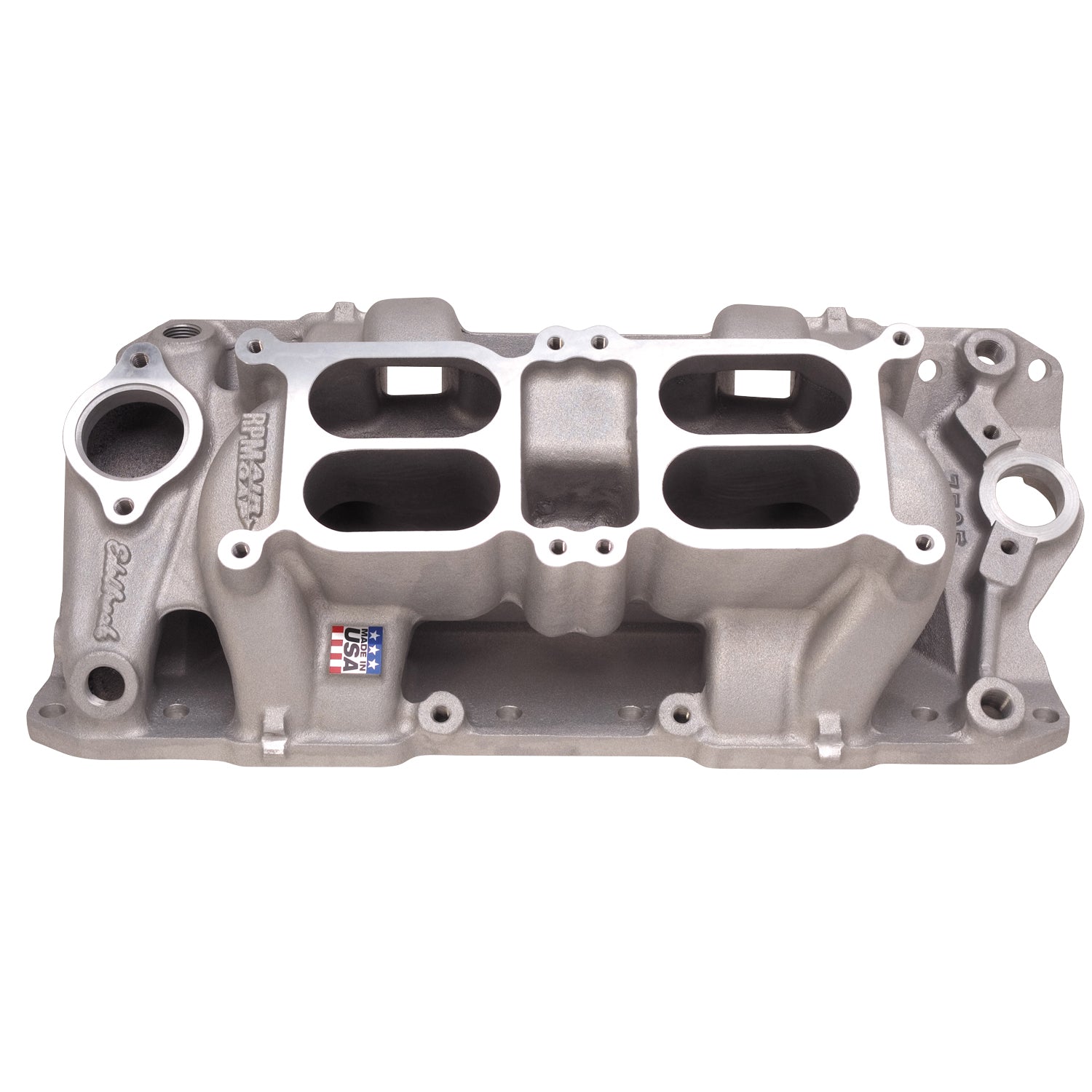

Performer RPM AIR-Gap Small Block Chevy Dual-Quad Intake Manifold

Edelbrock part #7525 RPM Air-Gap dual-quad intake manifold is designed for 1955-86 S/B Chevys, this intake stands 1-5/8" taller than the low-profile C-26 intake and offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge. Will not fit under stock Corvette hood. Vehicle Specific

• Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347075256
• Basic Operating RPM Range: 1500-5500
• CNC Ported: No
• Center Maximum Height: 4.890
• EGR Port: No
• Finish: Satin
• Flange Type: 4150 Dual-Quad (4-Barrel Square Bore)
• Front Maximum Height: 4.570
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 5.200
• Series: RPM Air-Gap
• Single Or Dual Plane Type: Dual
• Vehicle Model: Chevrolet

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.625 x 14.75 x 7.5 inches
• Weight: 19.6 POUNDS
