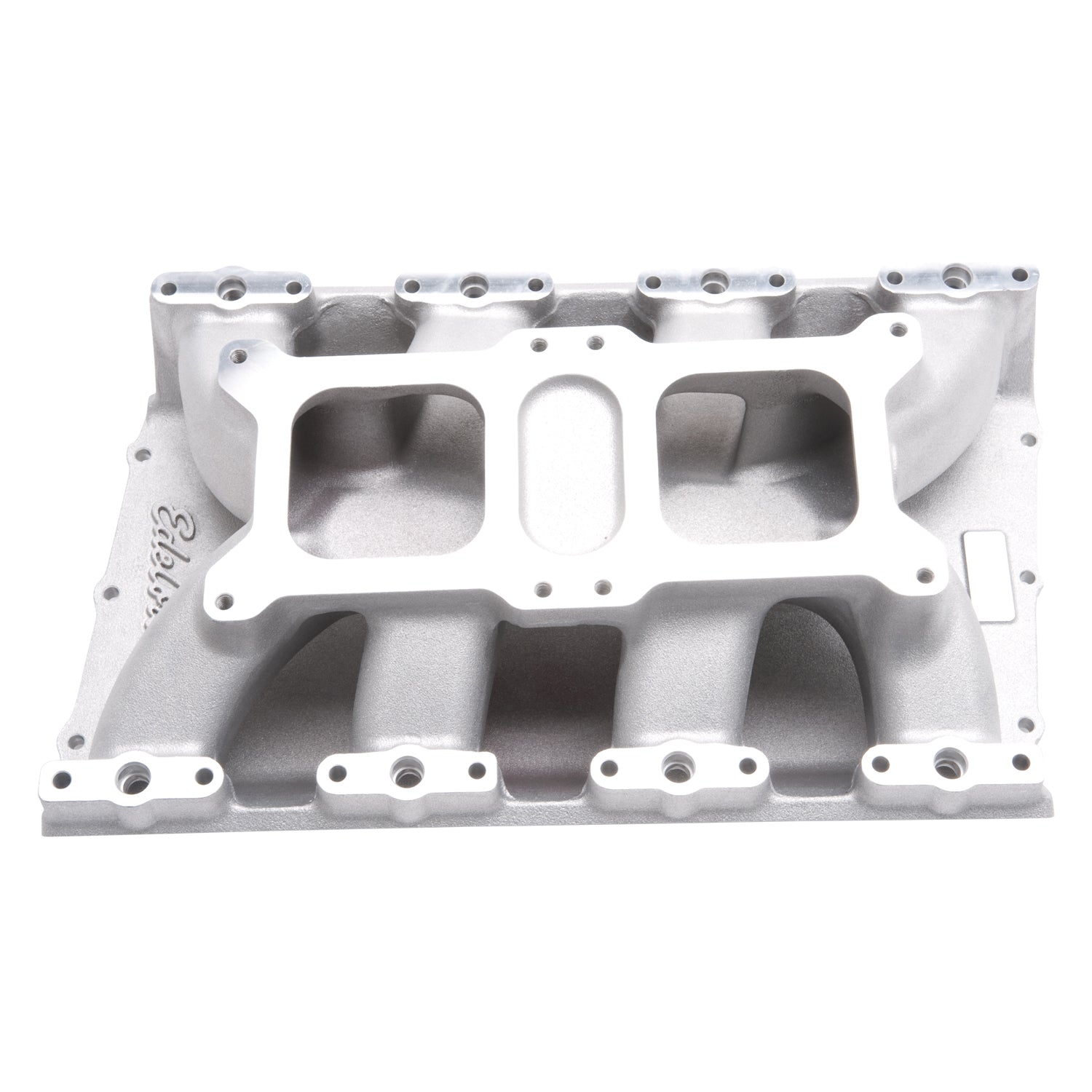

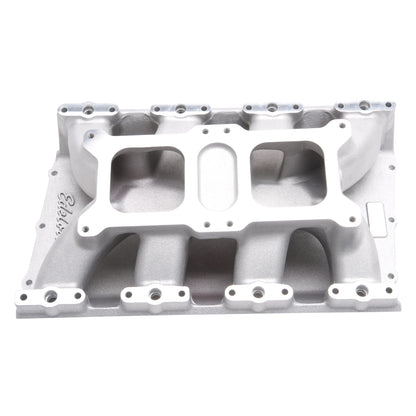

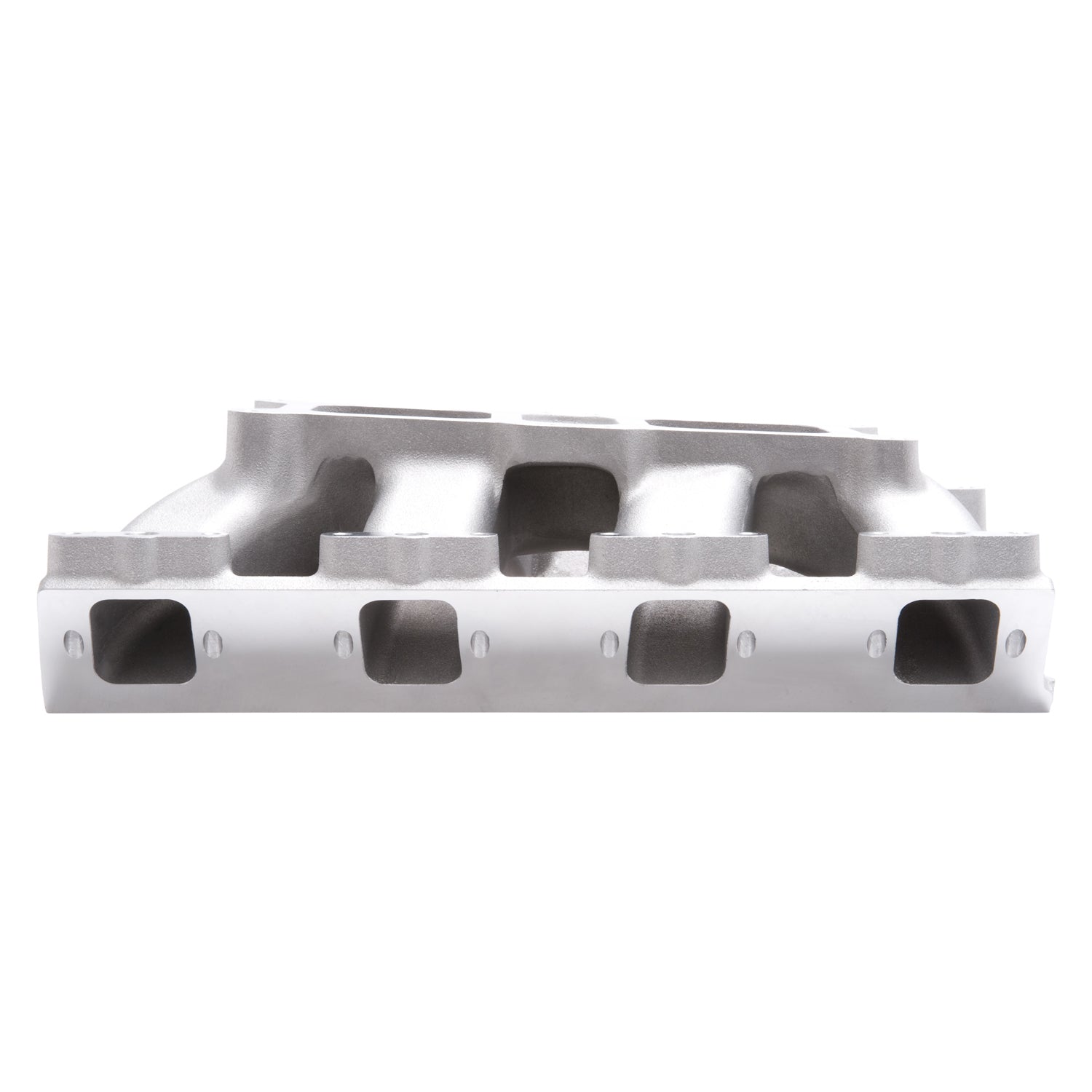

Dual-Quad Hemi Gen II EFI Intake Manifold

Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils. Vehicle Specific

• Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347752454
• Basic Operating RPM Range: 2500-6500
• CNC Ported: No
• Center Maximum Height: 5.100
• EGR Port: No
• Finish: Satin
• Flange Type: 4150 Dual-Quad
• Front Maximum Height: 4.680
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 5.510
• Series: Dual-Quad/Multi Carb
• Single Or Dual Plane Type: Single
• Vehicle Model: Chrysler

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.9 x 15 x 7 inches
• Weight: 26.5 POUNDS
