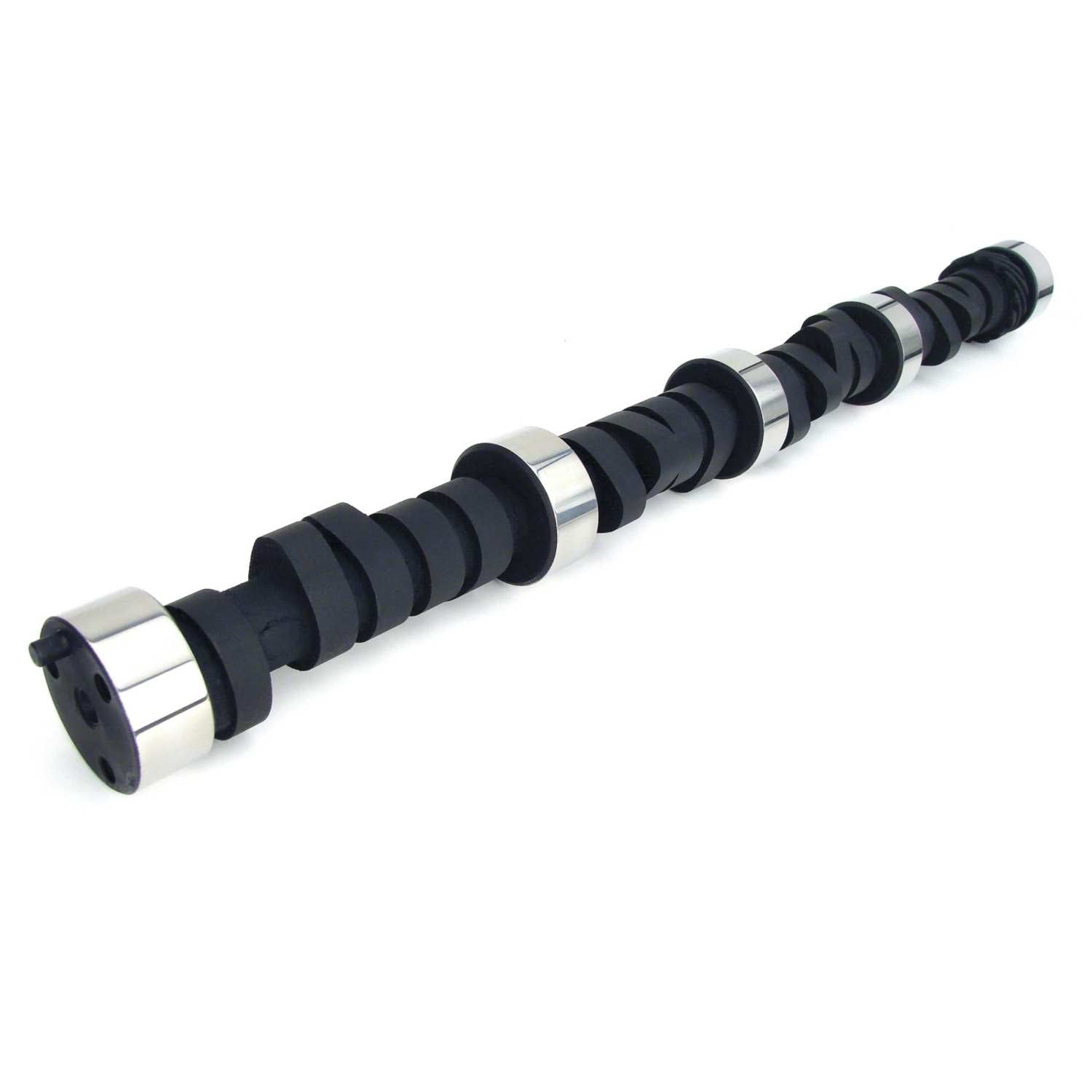

Magnum Marine/Drag Race 256/266 Solid Flat Cam For Chevrolet Big Block 396-454

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or <a href="{{store url}}Tech-support">contact us</a>, and we will assist you with placing an order. Vehicle Specific

• Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584540304
• Advertised Exhaust Duration: 304
• Advertised Intake Duration: 294
• Amazon ASIN: B000V9AYB0
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 3,500-6,500
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Solid Flat Tappet
• Cam and Lifter Kit Upgrade: CL11-604-5
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Camshaft Series: Magnum Marine
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Exhaust Duration at .050 inch Lift: 266
• Exhaust Valve Lift: 0.605
• Grind Number: 294B-8
• Intake Duration at .050 Inch Lift: 256
• Intake Valve Lift: 0.58
• K-Kit Upgrade: K11-604-5
• Lifter Type: Solid Flat Tappet
• Lifters Included: No
• Lobe Separation: 108
• SK-Kit Upgrade: SK11-604-5
• Usage: Marine
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.3 POUNDS
