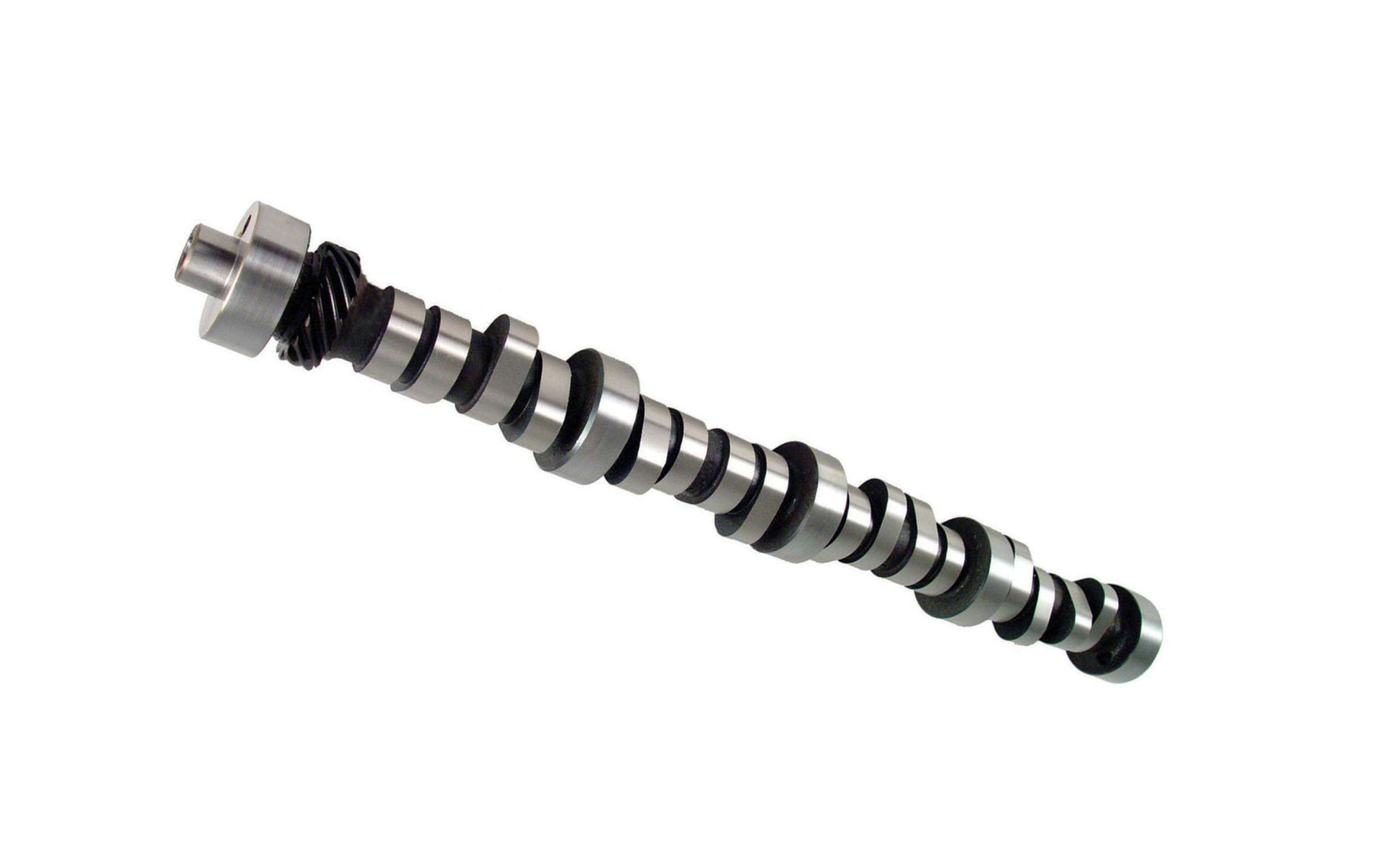

Magnum Computer Controlled/Blower 220/224 Hydraulic Roller Cam For Ford 5.0L

Hydraulic Roller: Supercharged, works well with 5 speed, needs good intake with mass air and larger injectors, mild stall. Vehicle Specific

• Fits Ford 5.0 and 351W w/ factory roller camshafts

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584017288
• Advertised Exhaust Duration: 280
• Advertised Intake Duration: 276
• Amazon ASIN: B001O0FXVQ
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 2,000-6,000
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Roller
• Cam and Lifter Kit Upgrade: CL35-312-8
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Austempered Ductile Iron
• Camshaft Series: Magnum Computer Controlled
• Engine Family: Ford 5.0L (1985-2002)
• Exhaust Duration at .050 inch Lift: 224
• Exhaust Valve Lift: 0.56
• Grind Number: 276HR
• Intake Duration at .050 Inch Lift: 220
• Intake Valve Lift: 0.544
• K-Kit Upgrade: K35-312-8
• Lifter Type: Hydraulic Roller
• Lifters Included: No
• Lobe Separation: 114
• SK-Kit Upgrade: SK35-312-8
• Usage: Street/Strip
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.34 POUNDS
