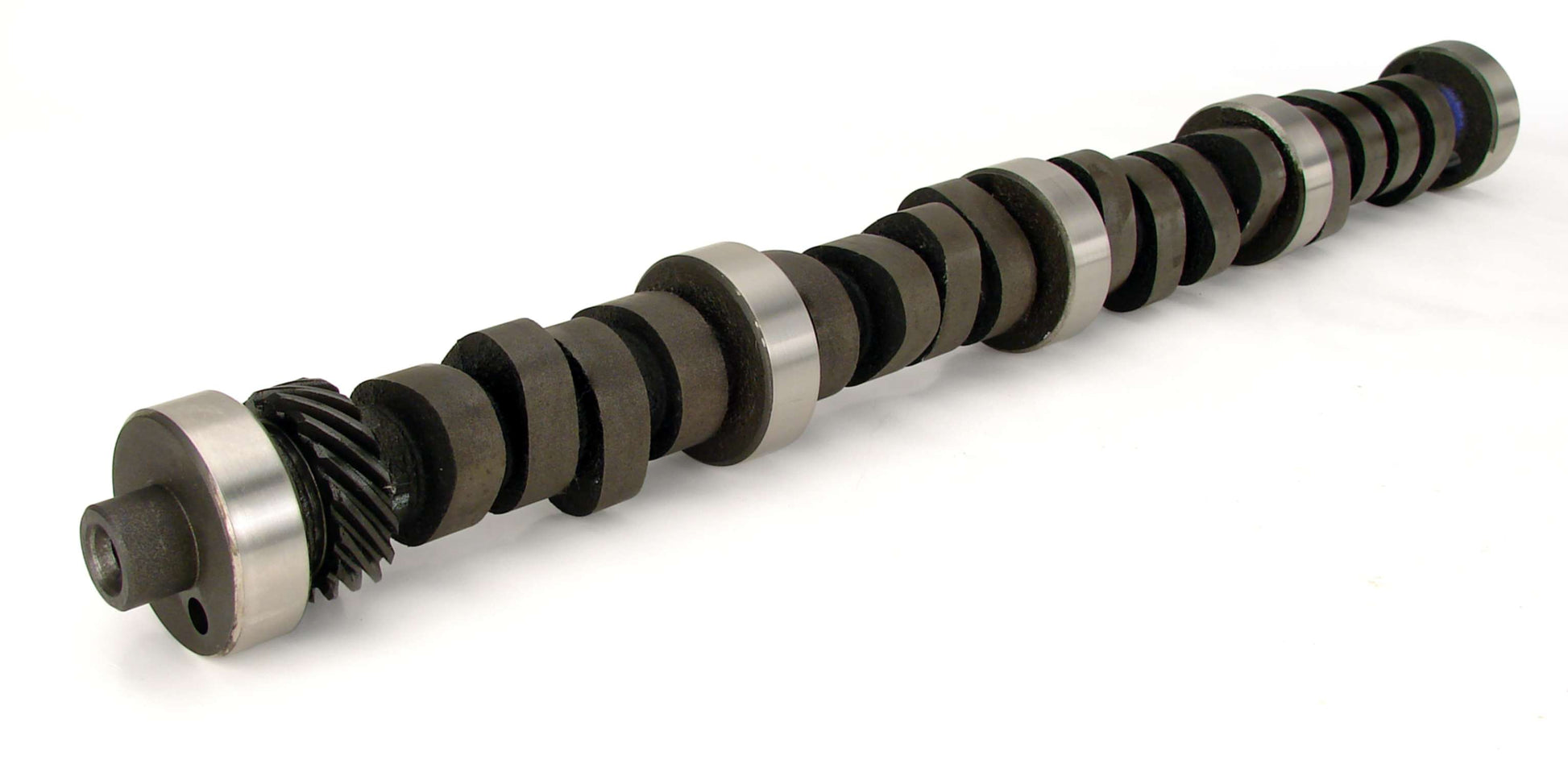

Magnum 253/253 Hydraulic Flat Cam For Ford 221-302

Hydraulic: Ultimate Cam for pro street. 3500+ stall with 10.5:1 compression and low Gear. Radical idle. Vehicle Specific

• Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584611868
• Advertised Exhaust Duration: 305
• Advertised Intake Duration: 305
• Amazon ASIN: B000V9AY8I
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 3,000-7000
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Flat Tappet
• Cam and Lifter Kit Upgrade: CL35-331-4
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Camshaft Series: Magnum
• Engine Family: Ford 351W 8 Cylinder (1969-1996)
• Exhaust Duration at .050 inch Lift: 253
• Exhaust Valve Lift: 0.54
• Grind Number: 305H
• Intake Duration at .050 Inch Lift: 253
• Intake Valve Lift: 0.54
• K-Kit Upgrade: K35-331-4
• Lifter Type: Hydraulic Flat Tappet
• Lifters Included: No
• Lobe Separation: 110
• SK-Kit Upgrade: SK35-331-4
• Usage: Street/Strip
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 9.5 POUNDS
