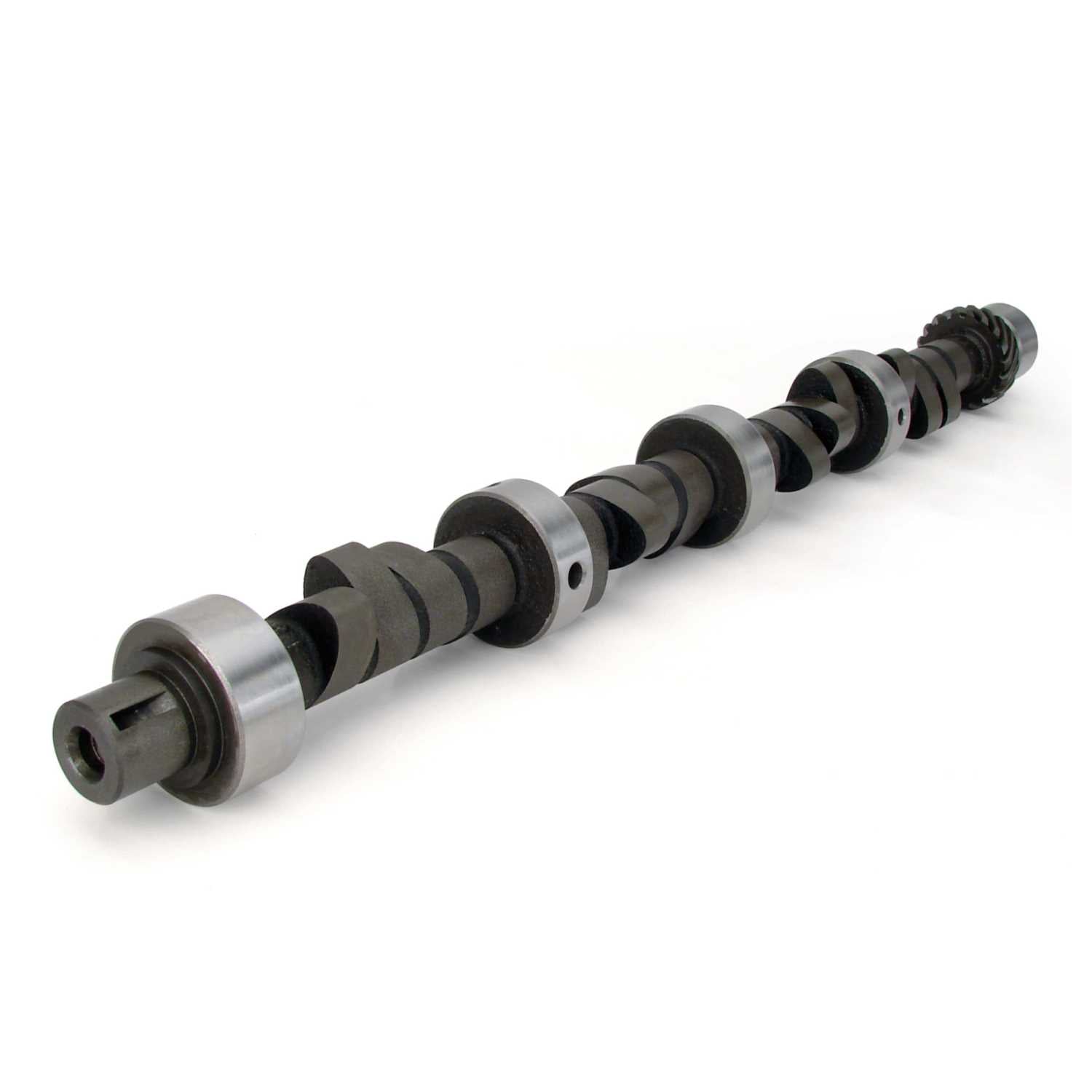

Magnum 248/248 Solid Flat Cam For Chrysler 273-360

Solid: Excellent for Pro Street, Bracket Race, 9.5:1 compression, 3000-3500 stall, 4.10 to 4.30 Gear, aftermarket intake. Vehicle Specific

• Fits Chrysler 273, 318, 340 and 360 LA

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584640578
• Advertised Exhaust Duration: 294
• Advertised Intake Duration: 294
• Amazon ASIN: B000P5954M
• Assembly Lubricant Included: Yes
• Basic Operating RPM Range: 3,000-6500
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Solid Flat Tappet
• Cam and Lifter Kit Upgrade: CL20-248-4
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Camshaft Series: Magnum
• Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
• Exhaust Duration at .050 inch Lift: 248
• Exhaust Valve Lift: 0.525
• Grind Number: 294S
• Intake Duration at .050 Inch Lift: 248
• Intake Valve Lift: 0.525
• K-Kit Upgrade: K20-248-4
• Lifter Type: Solid Flat Tappet
• Lifters Included: No
• Lobe Separation: 110
• SK-Kit Upgrade: SK20-248-4
• Usage: Street/Strip
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.2 x 2.9 x 2.6 inches
• Weight: 9.3035 POUNDS
