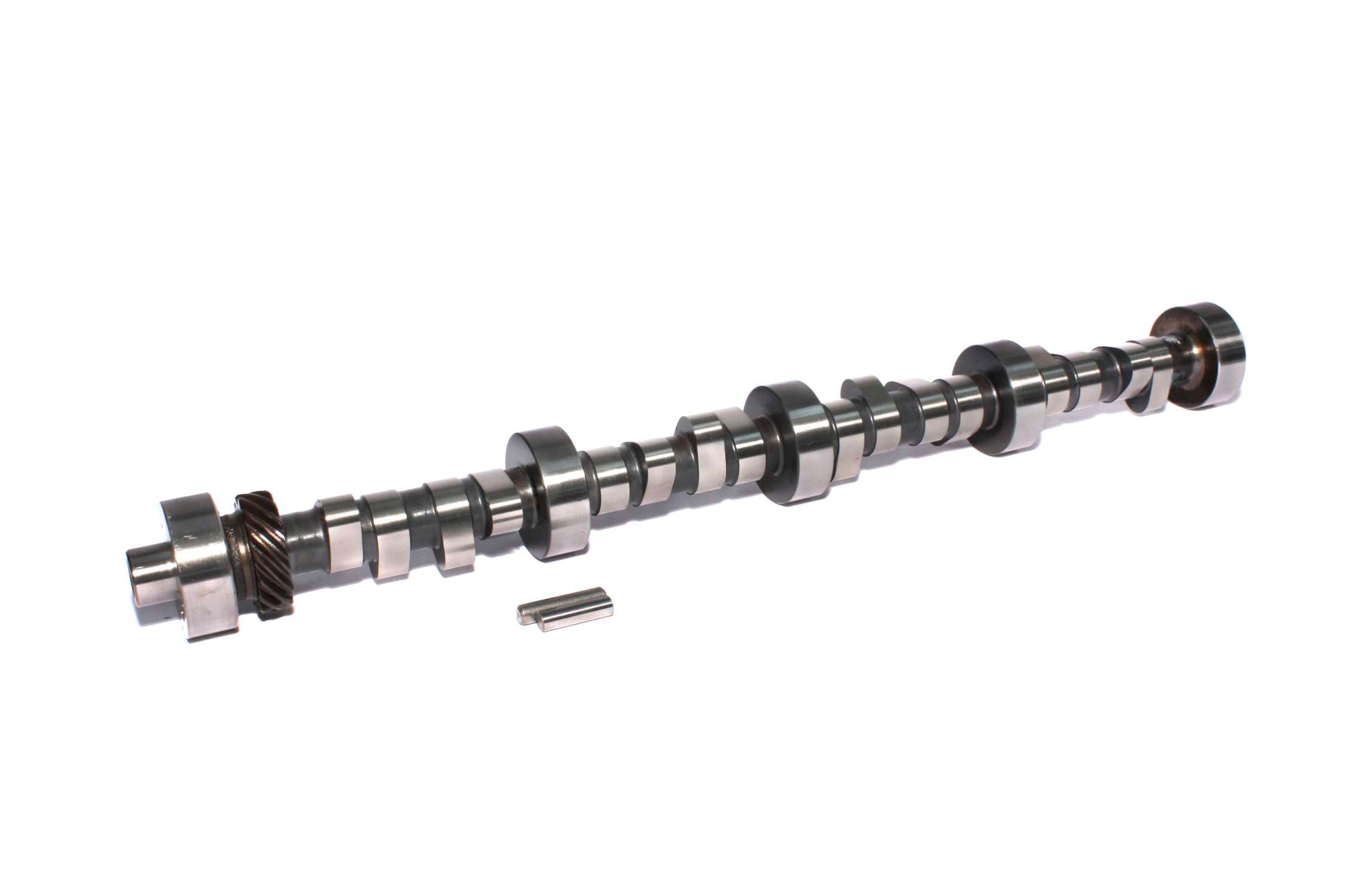

Magnum 230/230 Hydraulic Roller Cam For Ford 221-302

An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs. Vehicle Specific

• Fits Ford 221, 255, 260, 289 and 302 Small Block

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584780380
• Advertised Exhaust Duration: 290
• Advertised Intake Duration: 290
• Amazon ASIN: B000P5B9RS
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 3,000-6500
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: N/A
• Cam Type: Hydraulic Roller
• Cam and Lifter Kit Upgrade: CL31-452-8
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Austempered Ductile Iron
• Camshaft Series: Magnum
• Engine Family: Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
• Exhaust Duration at .050 inch Lift: 230
• Exhaust Valve Lift: 0.544
• Grind Number: 290HR
• Intake Duration at .050 Inch Lift: 230
• Intake Valve Lift: 0.544
• K-Kit Upgrade: K31-452-8
• Lifter Type: Hydraulic Roller
• Lifters Included: No
• Lobe Separation: 110
• SK-Kit Upgrade: SK31-452-8
• Usage: Street/Performance
• Valve Springs Required: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 9.6 POUNDS
