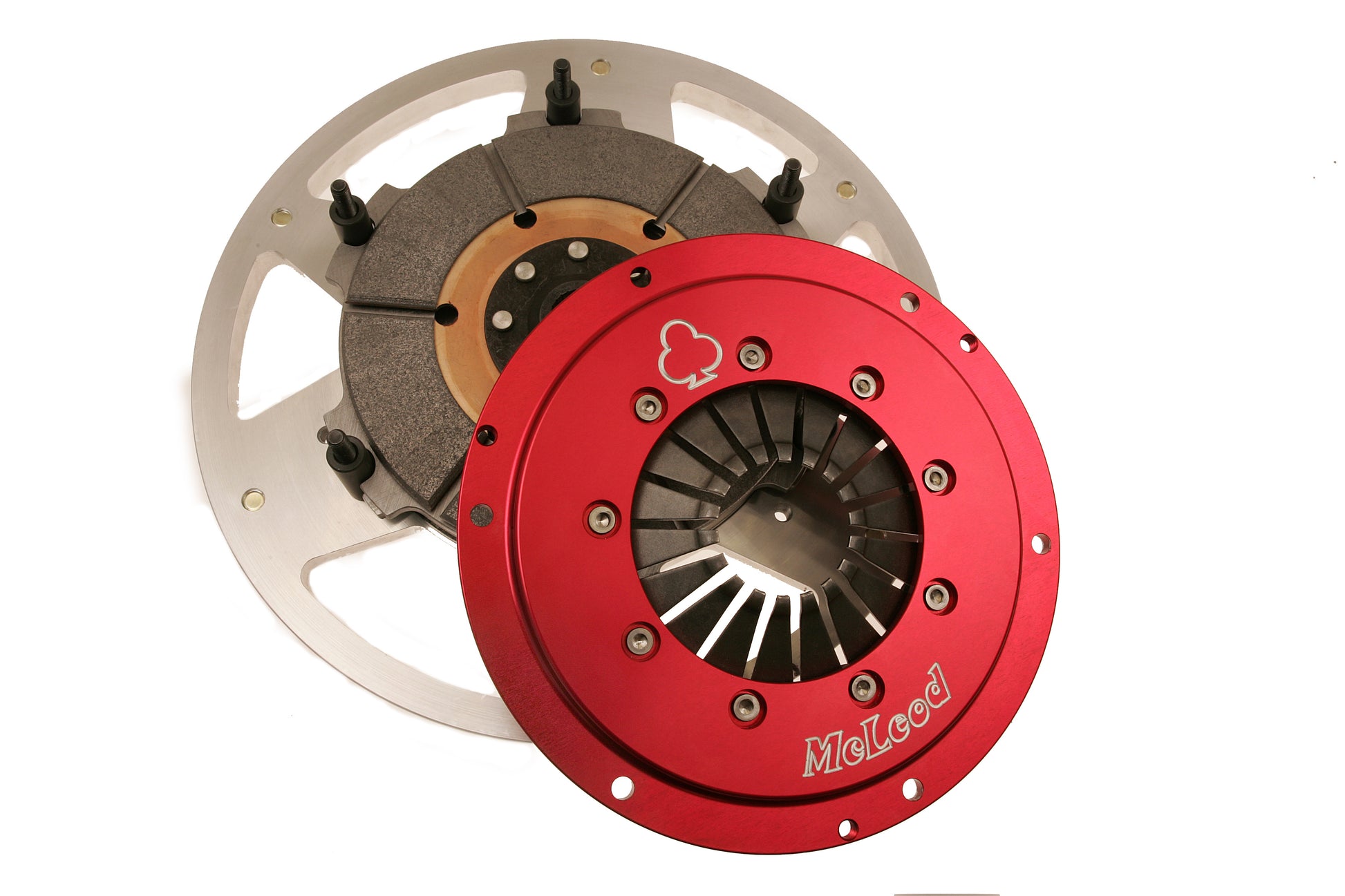

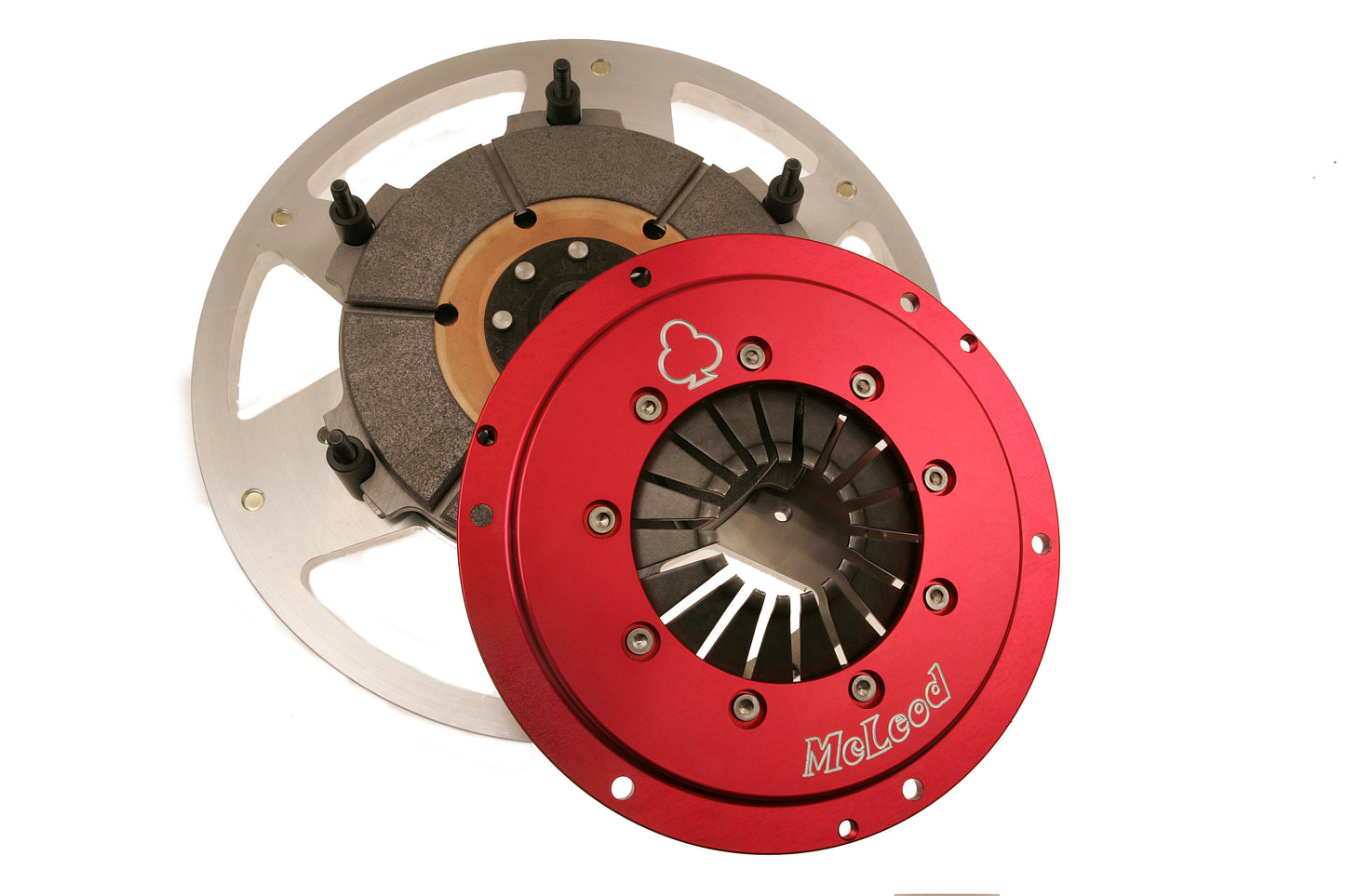

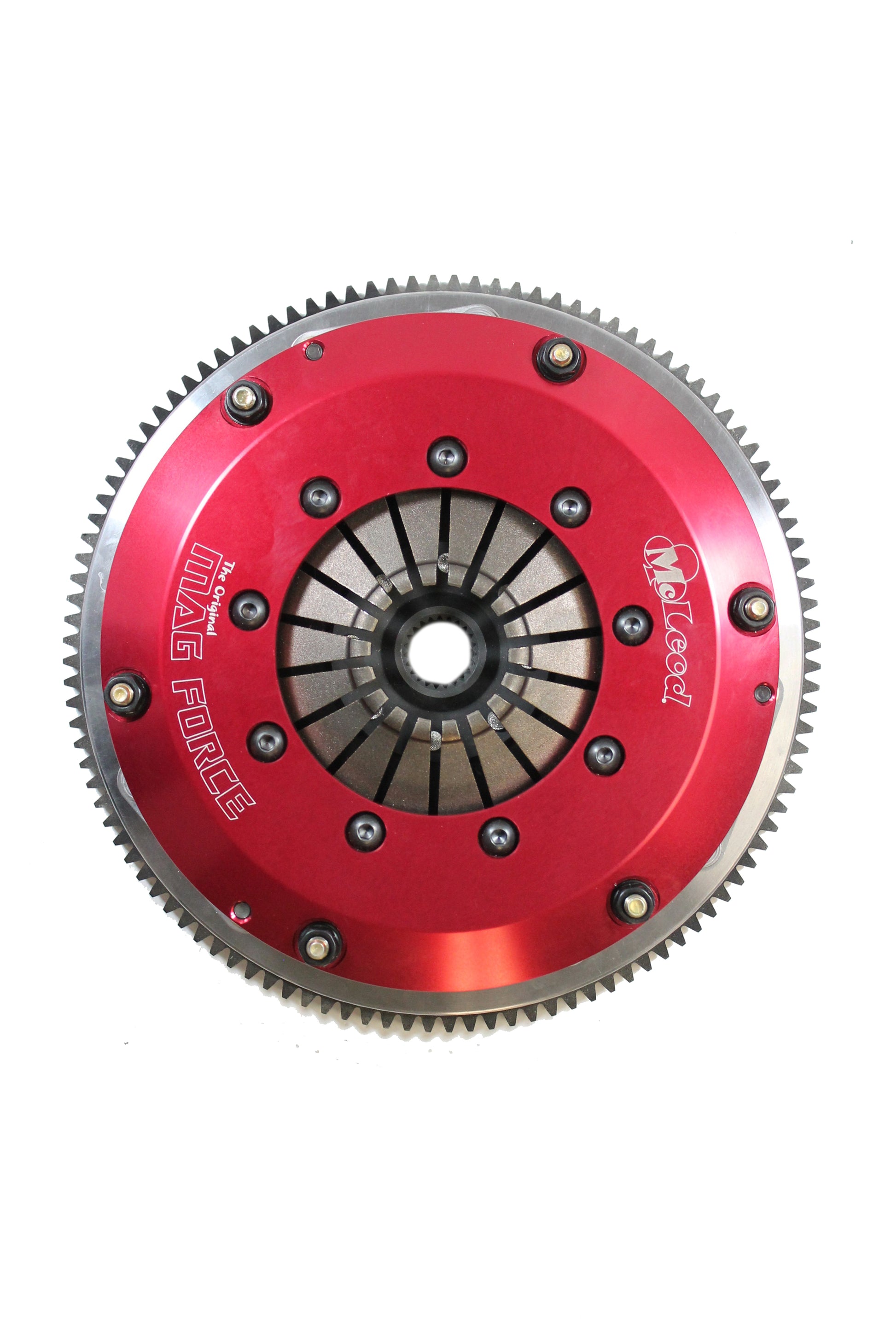

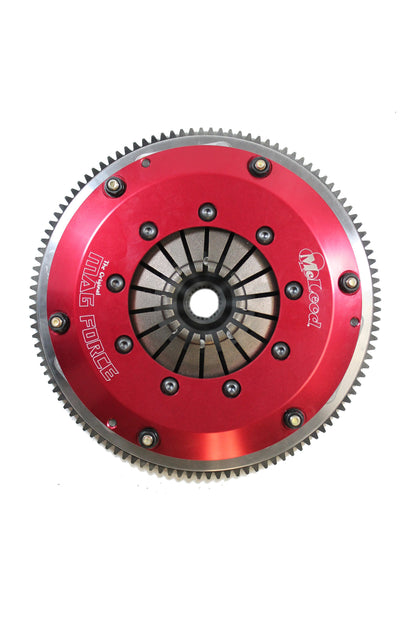

McLeod Mag ForceSE

Mag Force SE - Rated up to 700 HP, this clutch system is perfect for high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, ceramic discs, this is your ideal clutch for the street or Road Racing, Drag Racing and Salt Flats Time trials.

• • Import and Domestic applications. • Ceramic Discs. • Pin or Strap Drive. • Street or Track usage.

Vehicle Specific

• Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
• Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753314826
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Ceramic
• Disc Style: Segmented
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: Chevrolet
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 168-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 POUNDS
