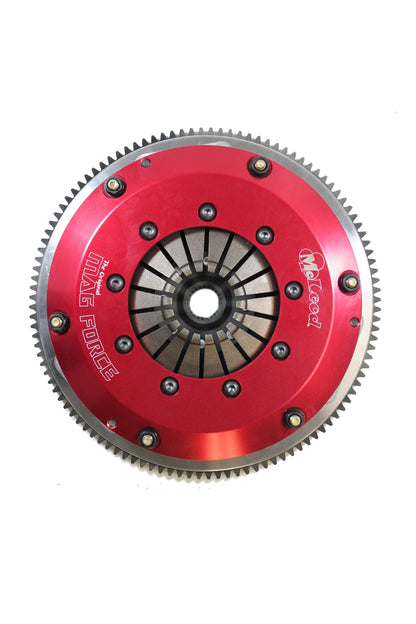

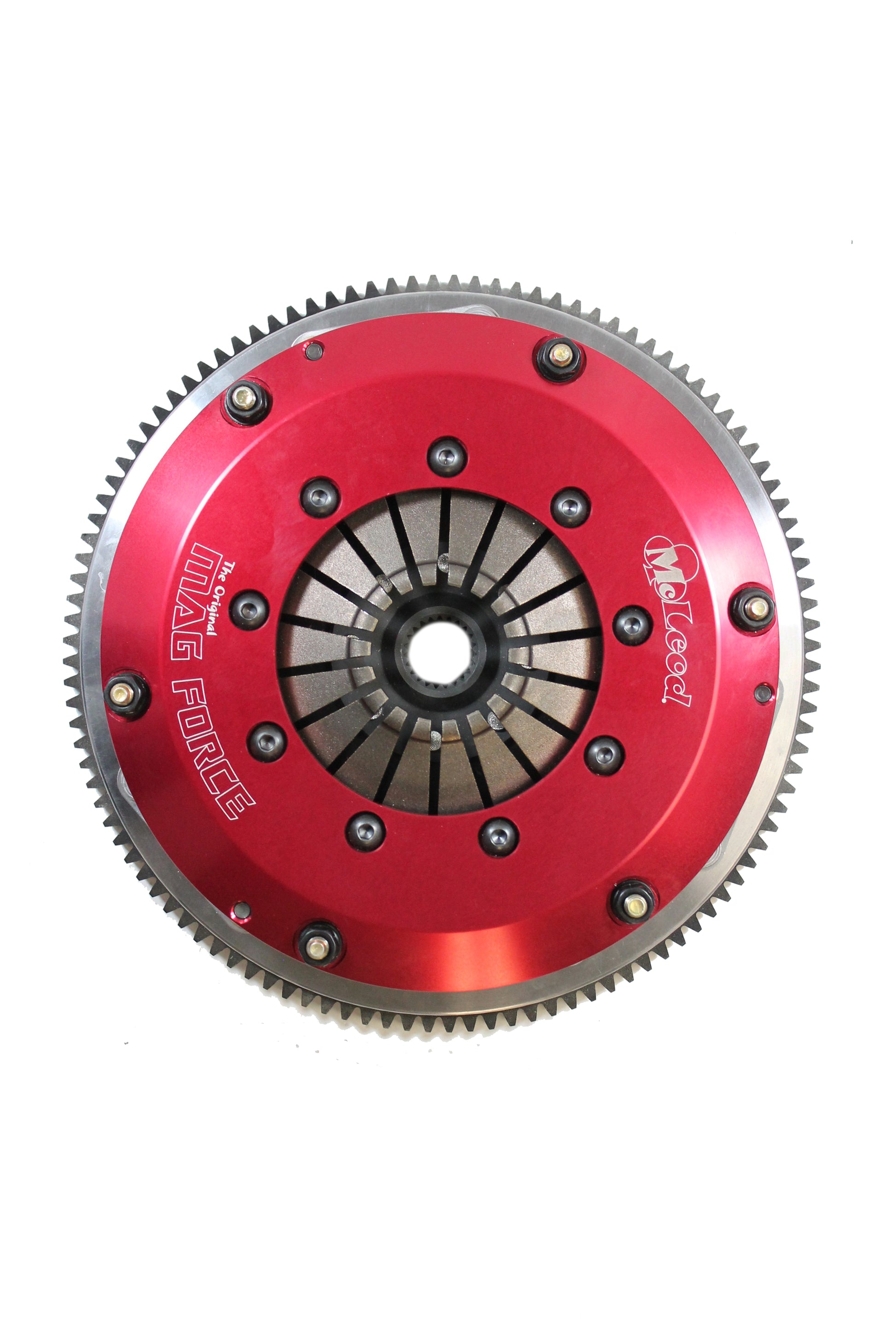

McLeod Mag Force

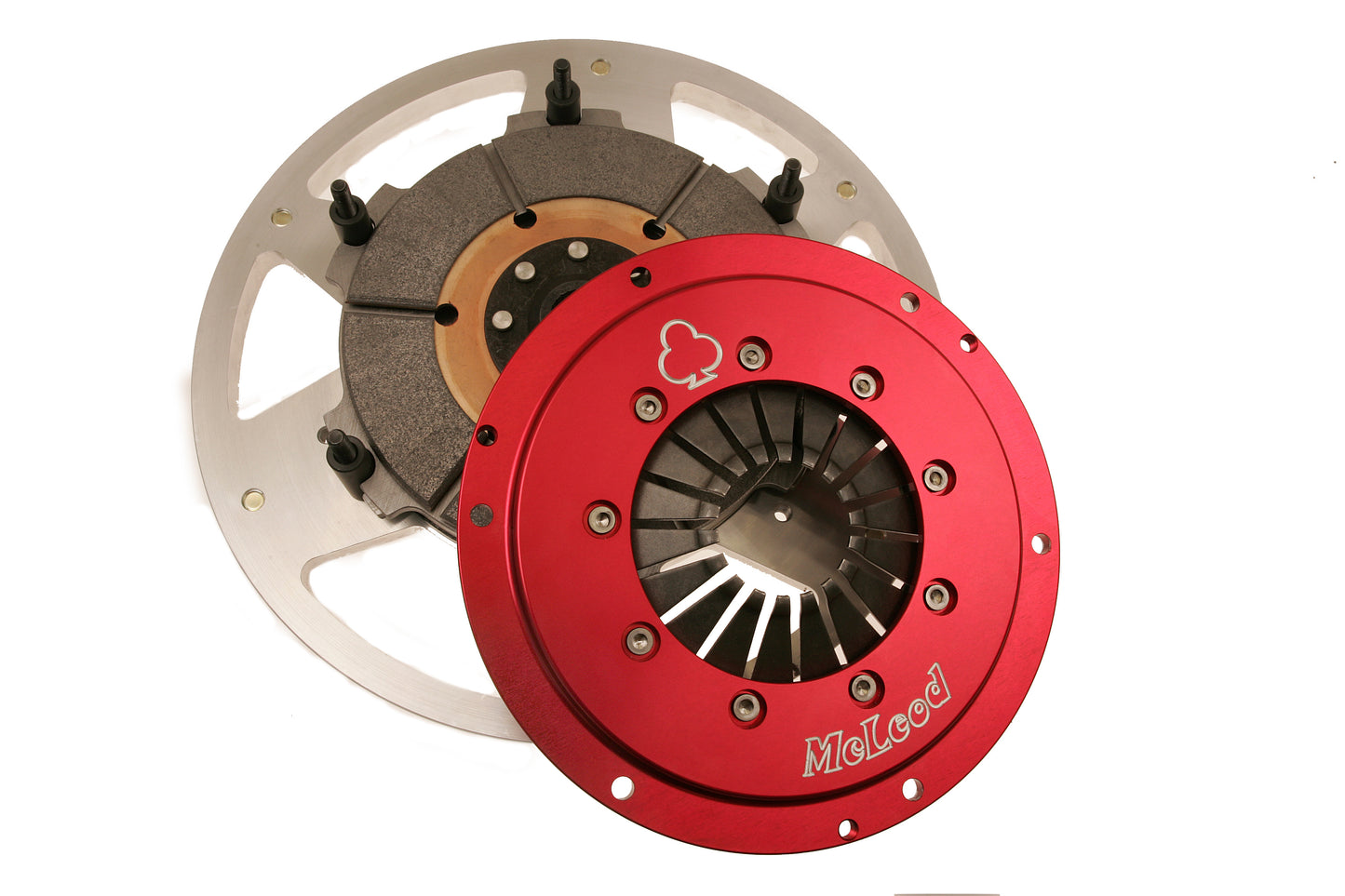

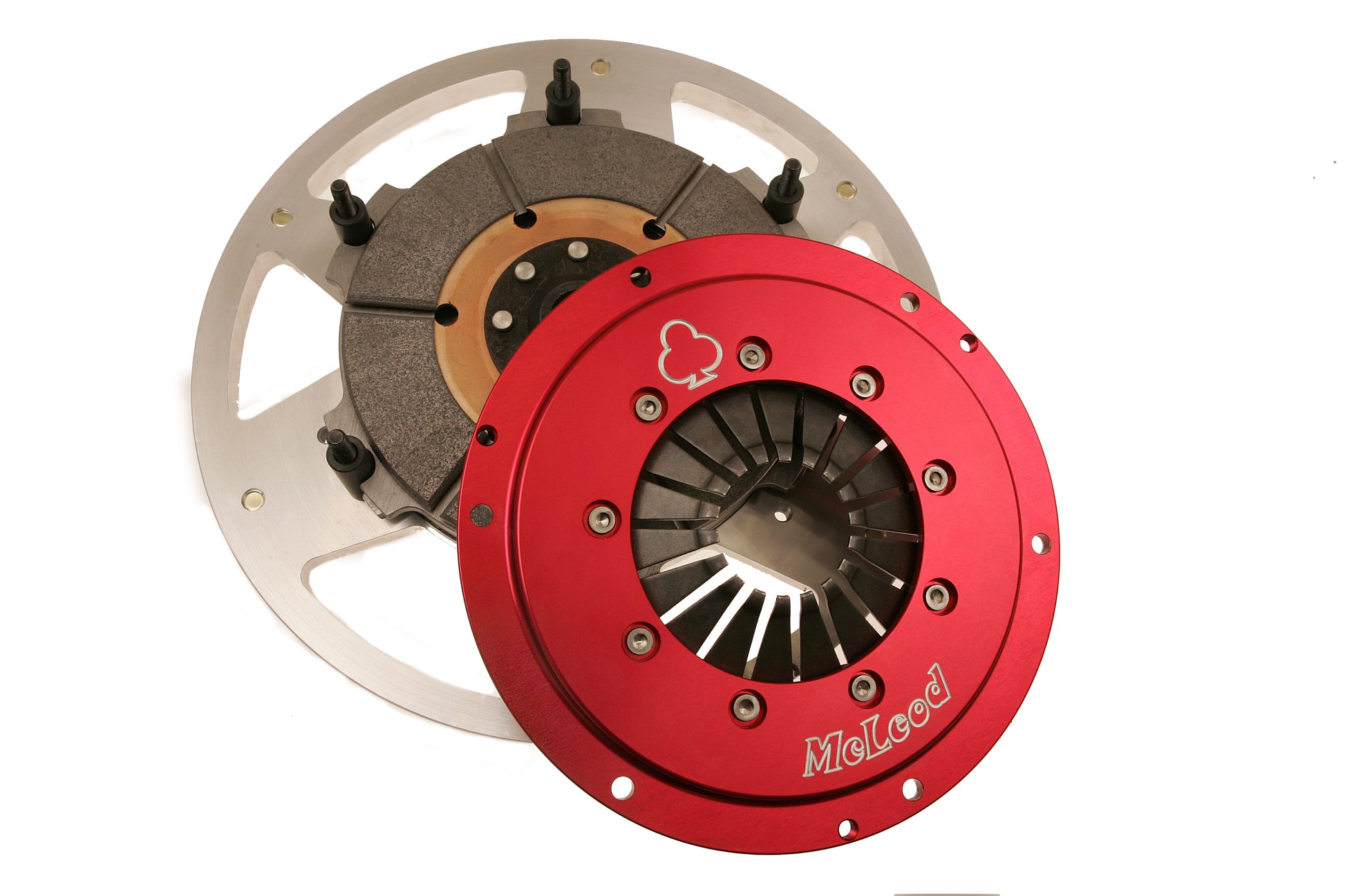

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.

• • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Vehicle Specific

• Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine
• Chevrolet: Chevelle 68 - 77 5 L Engine, Chevrolet: Chevelle 64 - 68 5.3 L Engine, Chevrolet: Chevelle 69 - 77 5.7 L Engine, Chevrolet: Chevelle 65 - 69 6.5 L Engine
• Chevrolet: Chevelle 70 - 76 6.6 L Engine, Chevrolet: Chevelle 70 - 75 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II 65 - 67 5.
• Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine
• Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine
• Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine
• Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine
• Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine
• Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine
• Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine
• Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753314765
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Counter Weight Kit if Required: 560222 (sold separately)
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (mm): 35
• Input Spline Quantity: 10
• Make: Chevrolet
• Note: also fits 1991-2022 crate BBC 1pc Seal large crank flange
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Rear Main Seal Style: 2-piece
• Ring Gear Tooth Quantity: 153-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 POUNDS
