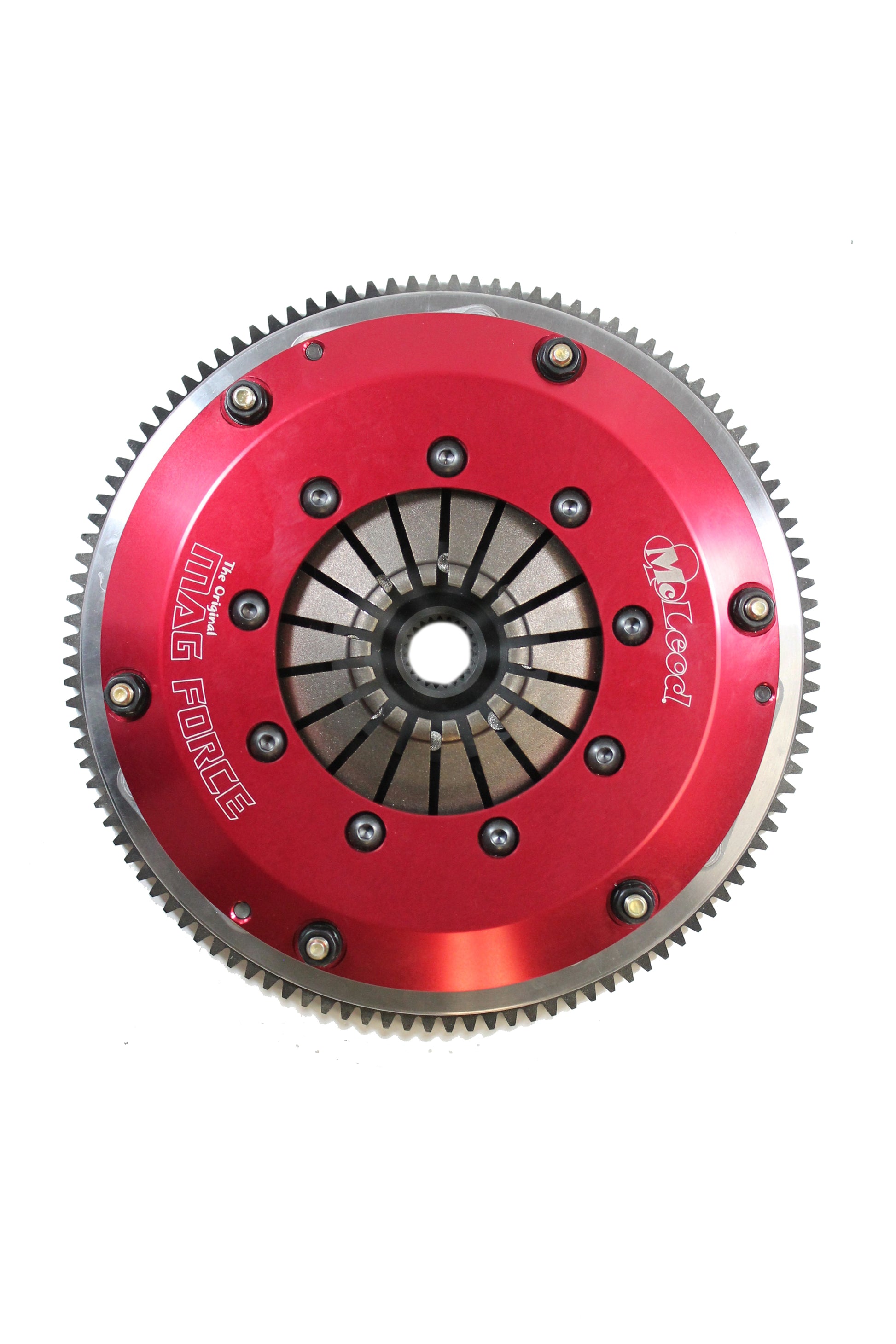

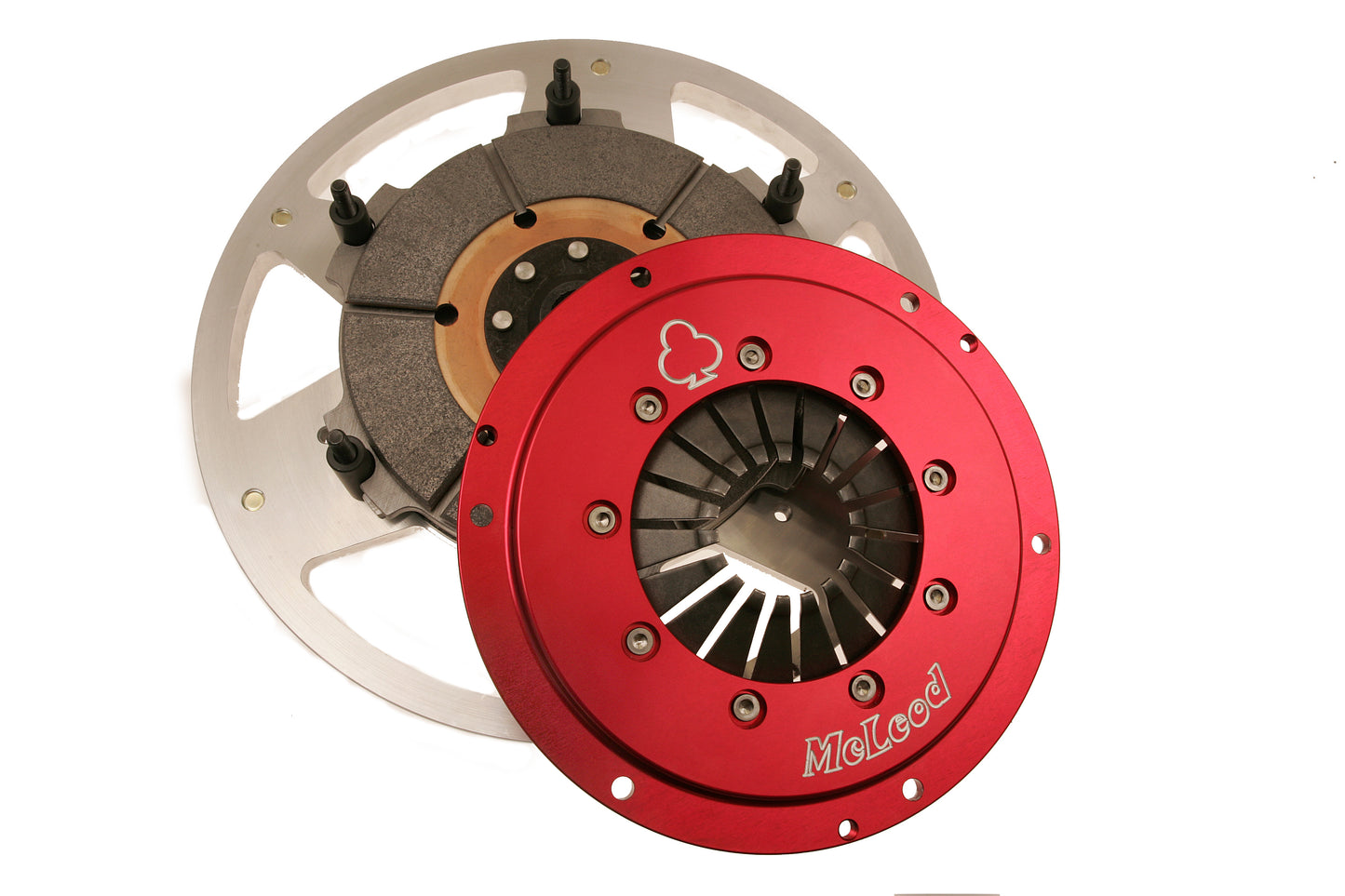

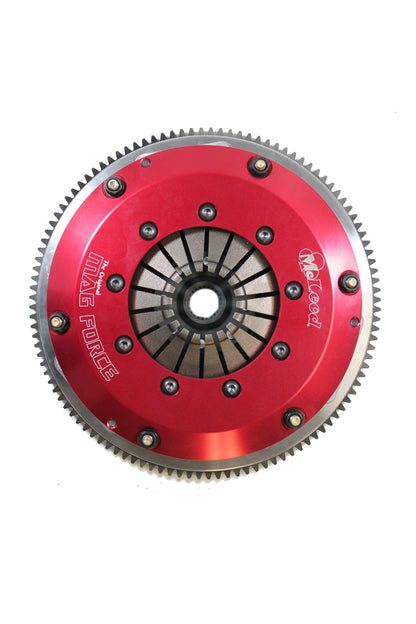

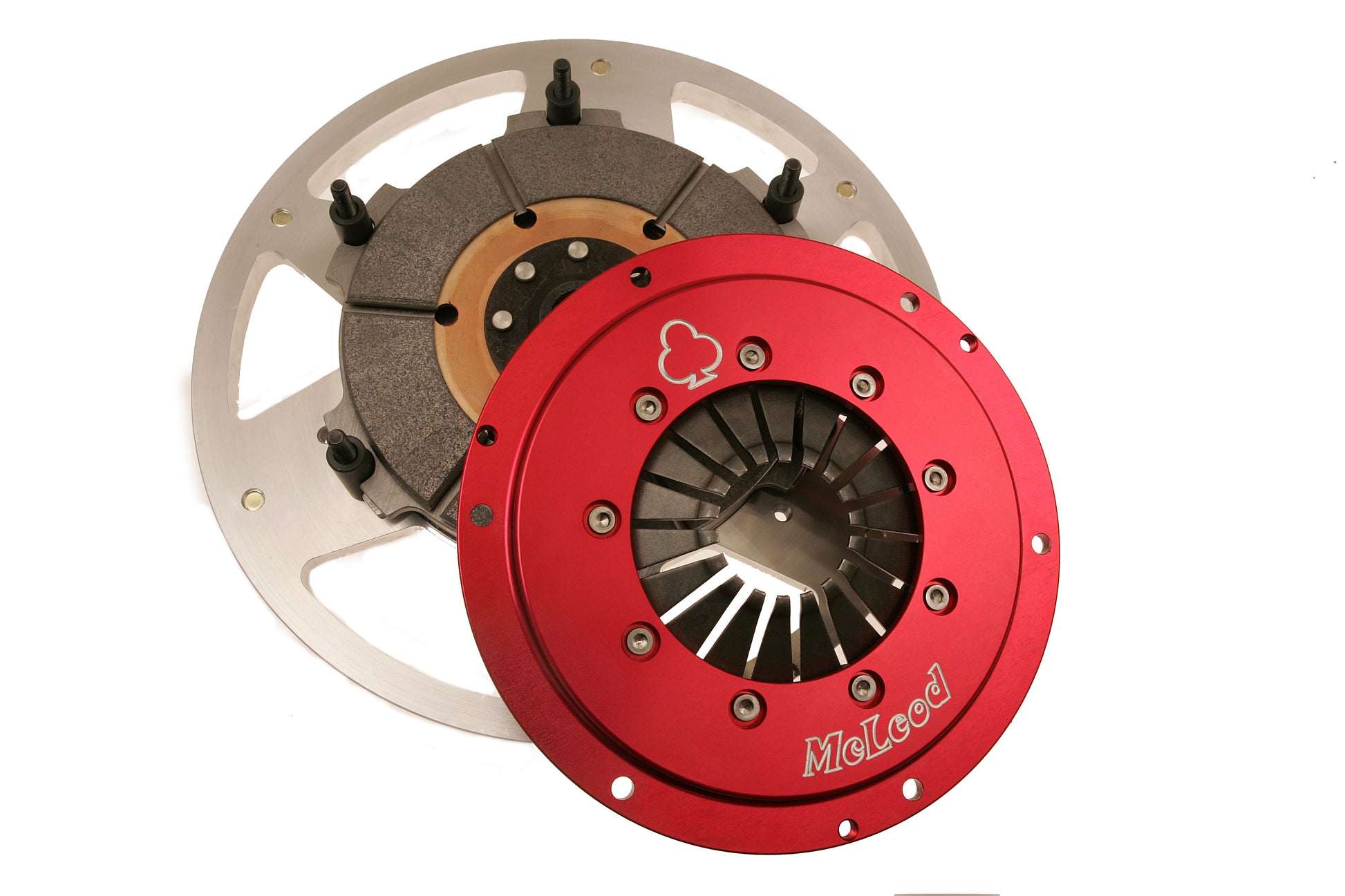

McLeod Mag ForceSE

Mag Force SE - Rated up to 700 HP, this clutch system is perfect for high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, ceramic discs, this is your ideal clutch for the street or Road Racing, Drag Racing and Salt Flats Time trials.

• • Import and Domestic applications. • Ceramic Discs. • Pin or Strap Drive. • Street or Track usage.

Vehicle Specific

• Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine
• Chevrolet: Chevelle 68 - 77 5 L Engine, Chevrolet: Chevelle 64 - 68 5.3 L Engine, Chevrolet: Chevelle 69 - 77 5.7 L Engine, Chevrolet: Chevelle 65 - 69 6.5 L Engine
• Chevrolet: Chevelle 70 - 76 6.6 L Engine, Chevrolet: Chevelle 70 - 75 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II 65 - 67 5.
• Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine
• Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine
• Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine
• Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine
• Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine
• Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine
• Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine
• Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753676344
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Counter Weight Kit if Required: 560222 (sold separately)
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Ceramic
• Disc Style: Segmented
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: Chevrolet
• Notes: also fits 1991-2022 crate BBC 1pc Seal large crank flange
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Rear Main Seal Style: 2-piece
• Ring Gear Tooth Quantity: 168-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 POUNDS
