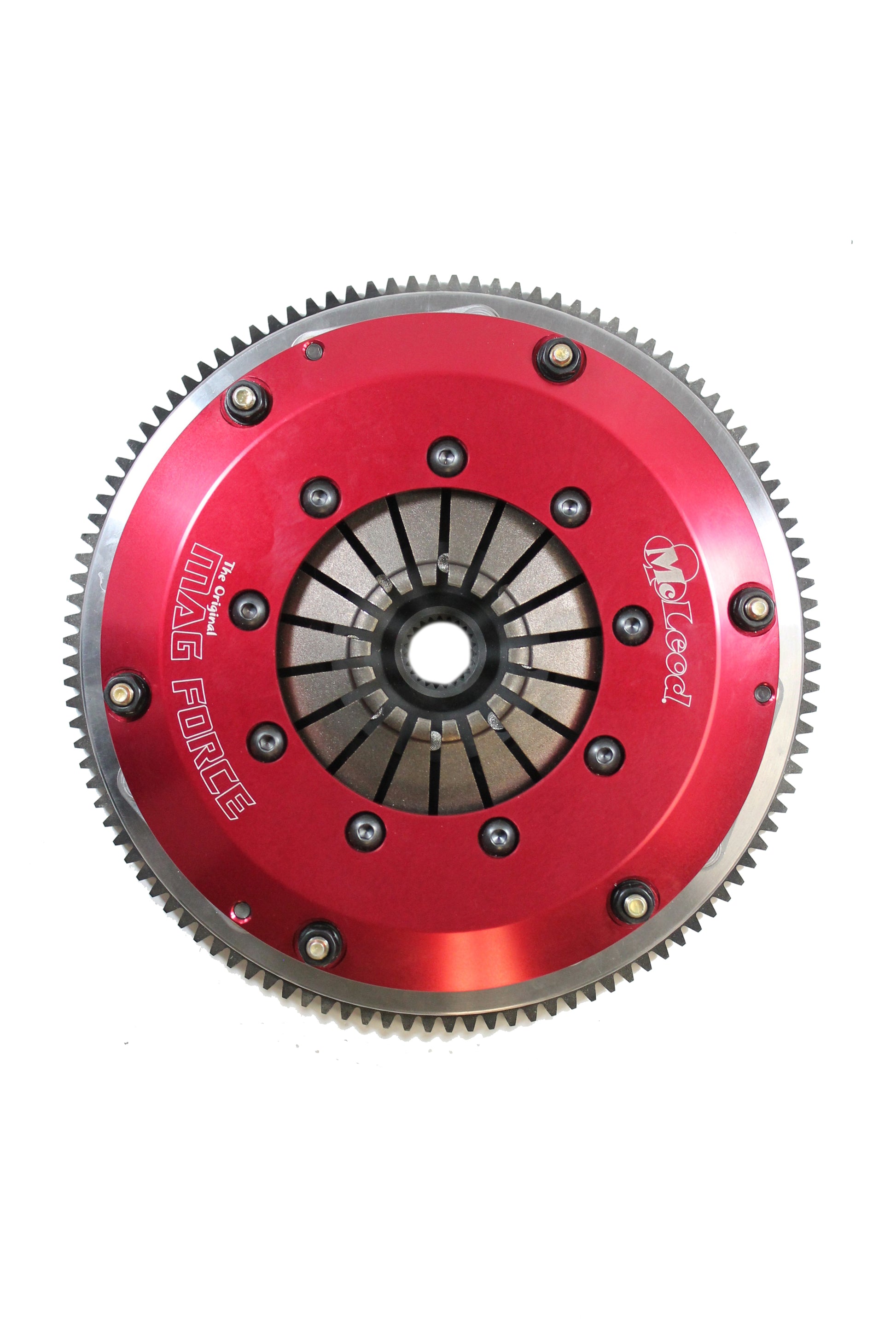

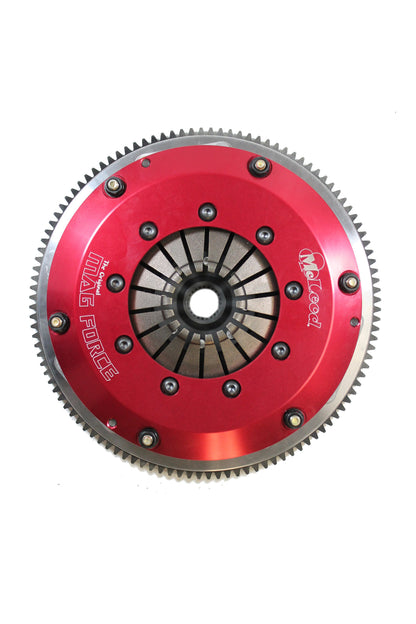

McLeod Mag Force

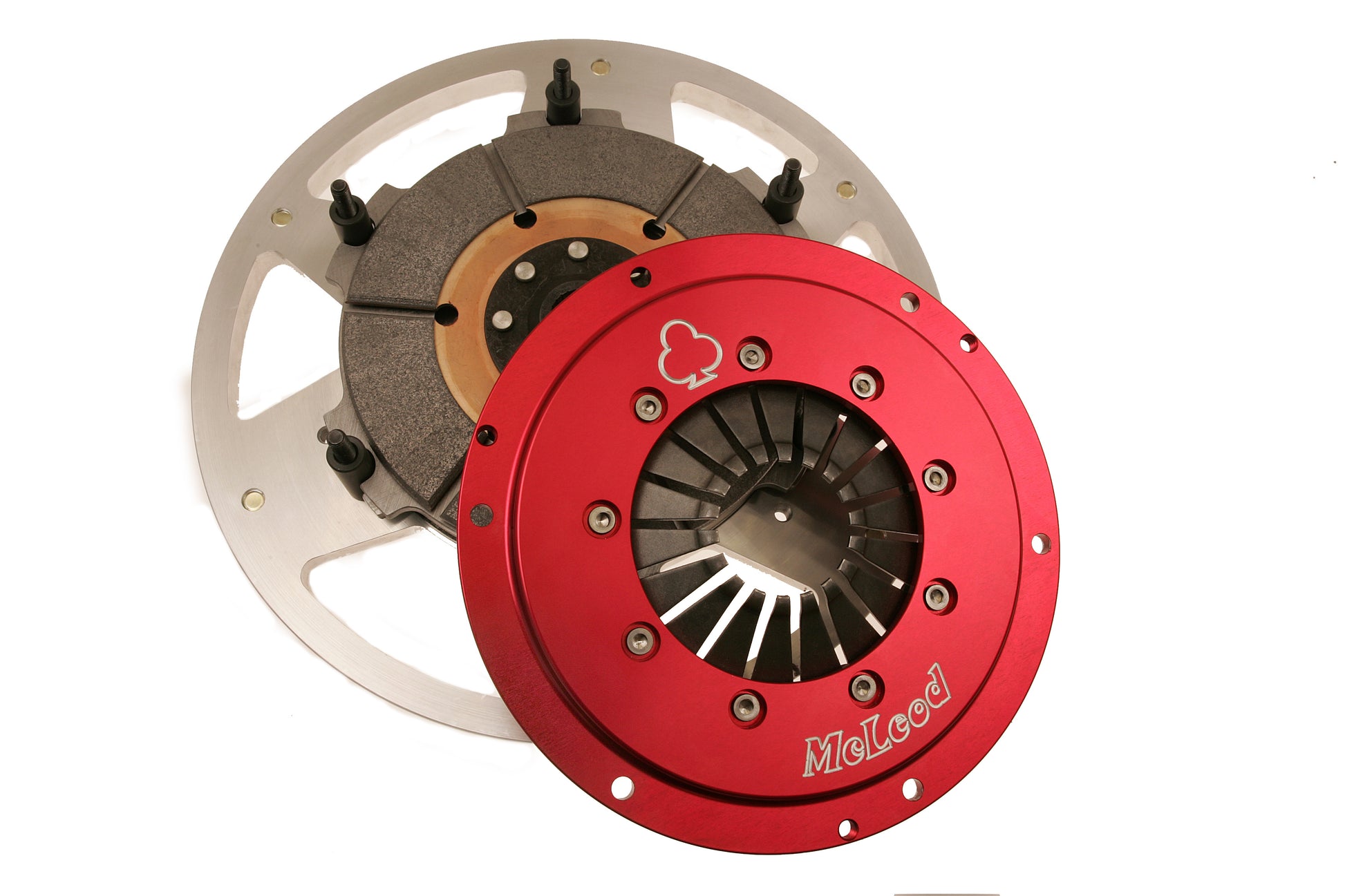

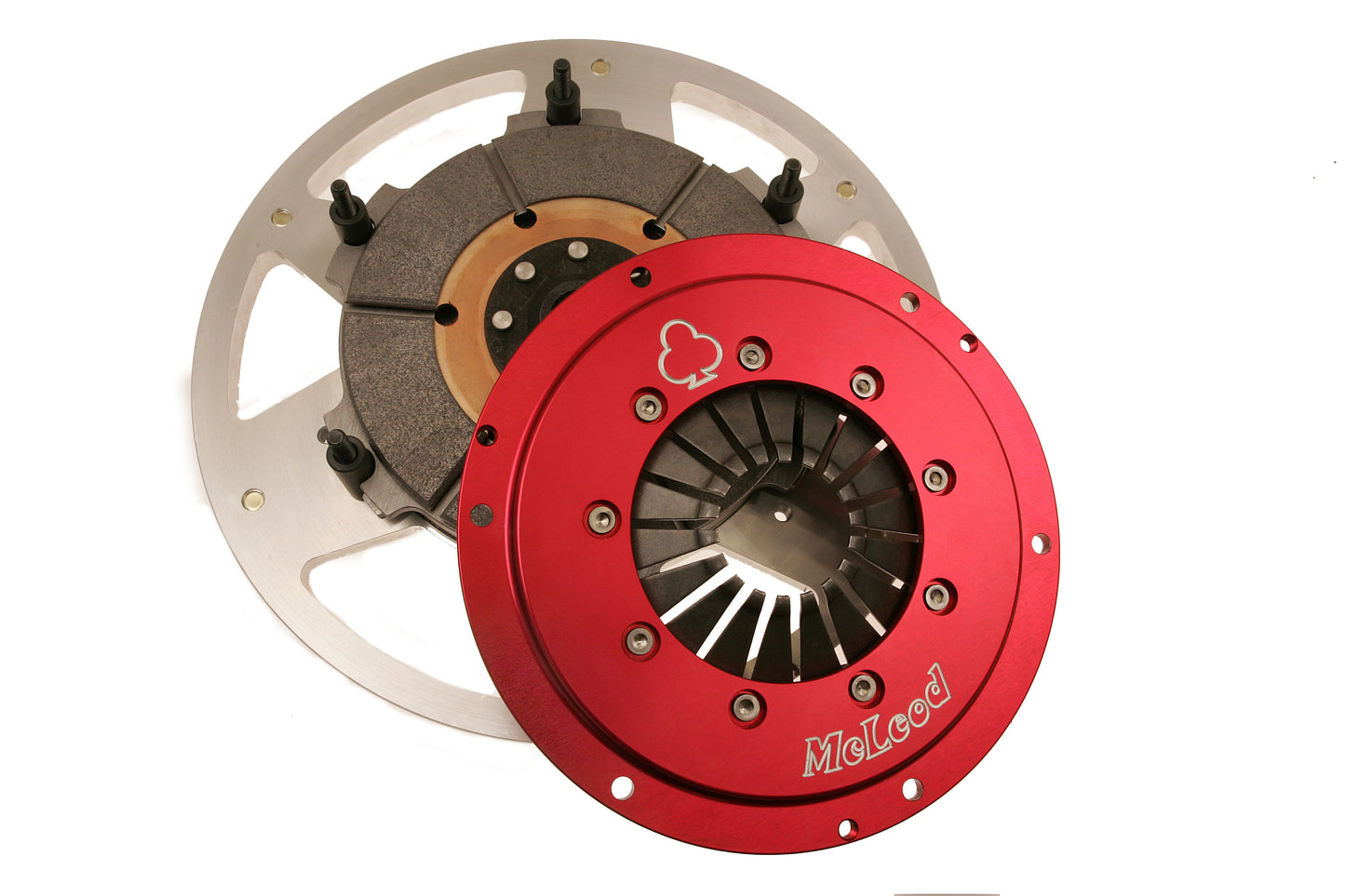

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.

• • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Vehicle Specific

• Chevrolet: Silverado 1500 01 - 06 4.8 L Engine, Chevrolet: Silverado 1500 01 - 06 5.3 L Engine, Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine
• Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine, Chevrolet: Silverado 2500 01 - 04 6 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine
• Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Silverado 3500 01 - 06 6 L Engine, Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, GMC: Sierra 1500 01 - 06 4.8 L Engine
• GMC: Sierra 1500 01 - 06 5.3 L Engine, GMC: Sierra 1500 04 - 05 6 L Engine, GMC: Sierra 1500 Classic 07 - 07 4.8 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine
• GMC: Sierra 2500 01 - 04 6 L Engine, GMC: Sierra 2500 HD 01 - 06 6 L Engine, GMC: Sierra 2500 HD Classic 07 - 07 6 L Engine, GMC: Sierra 3500 01 - 06 6 L Engine, GMC: Sierra 3500 Classic 07 - 07 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753314833
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 3
• Clutch Usage: Performance
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 10
• Make: Chevrolet
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 168-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 27 POUNDS
