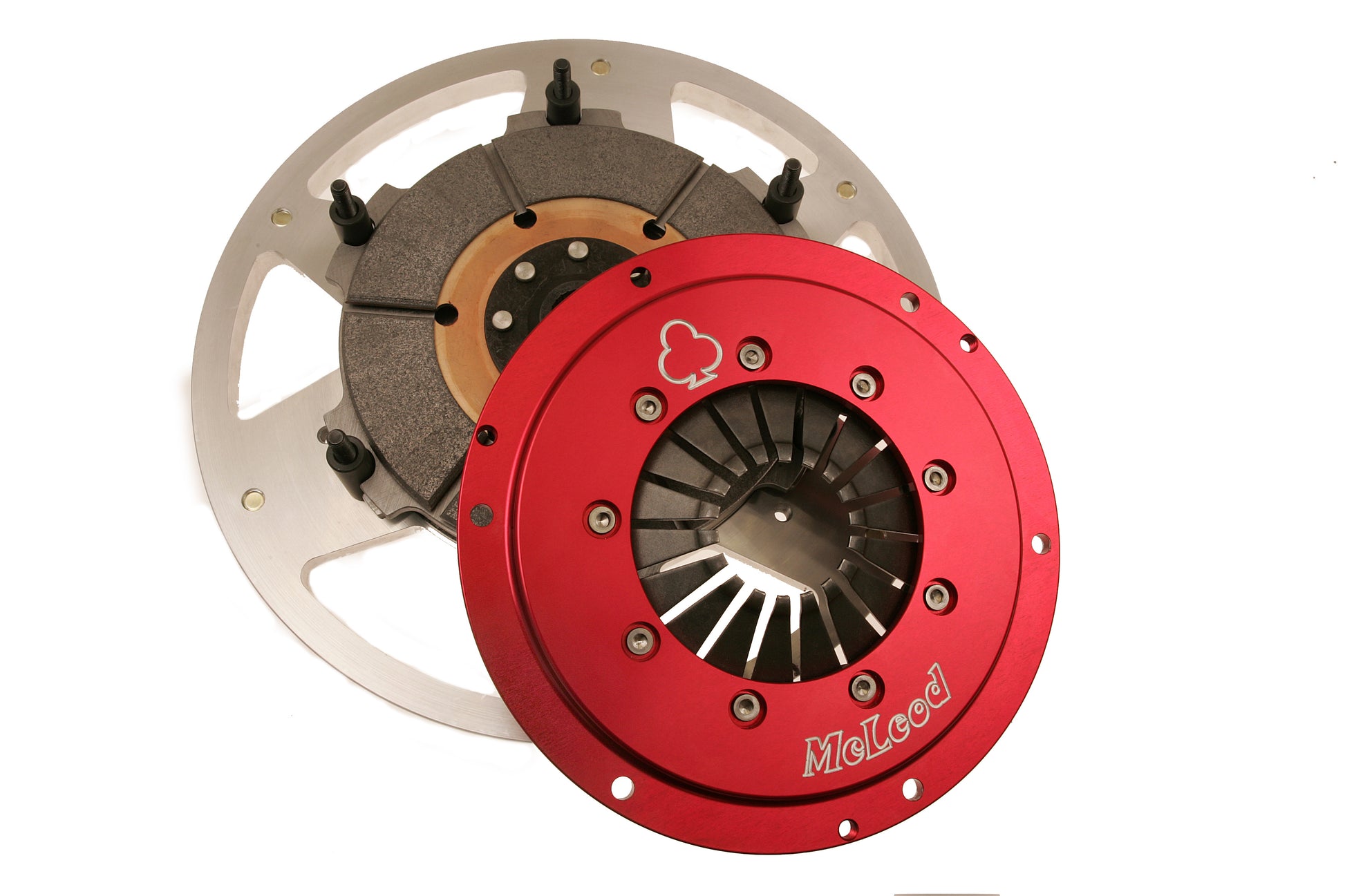

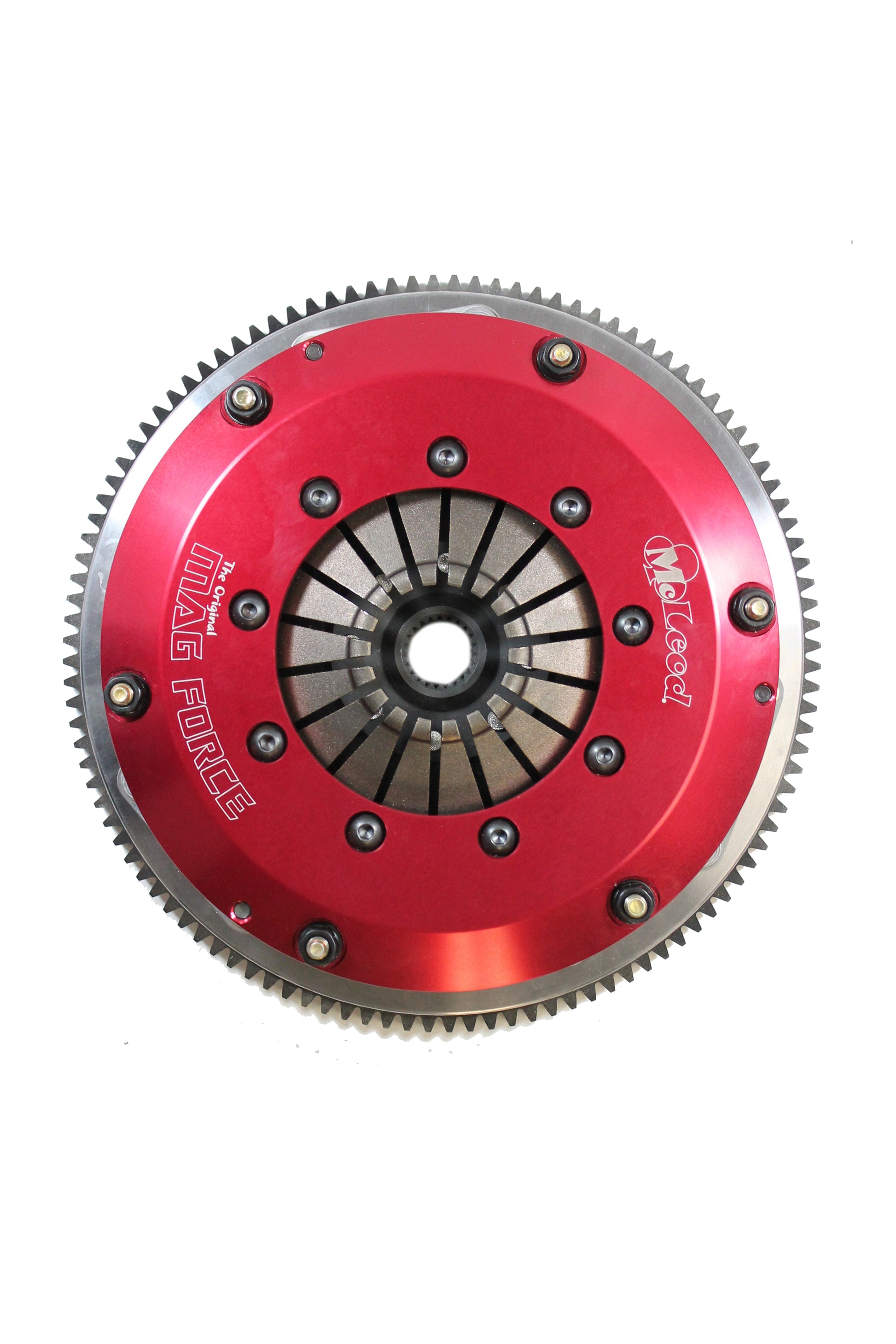

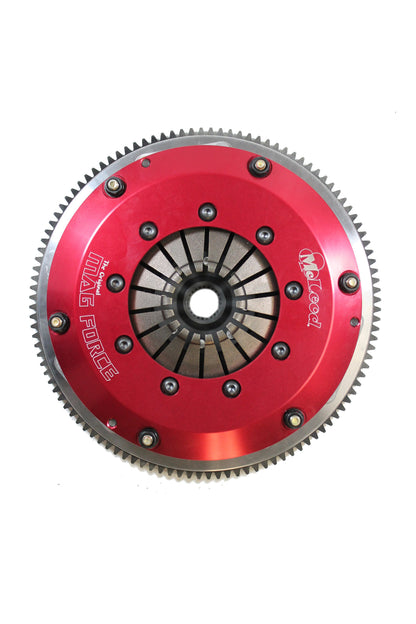

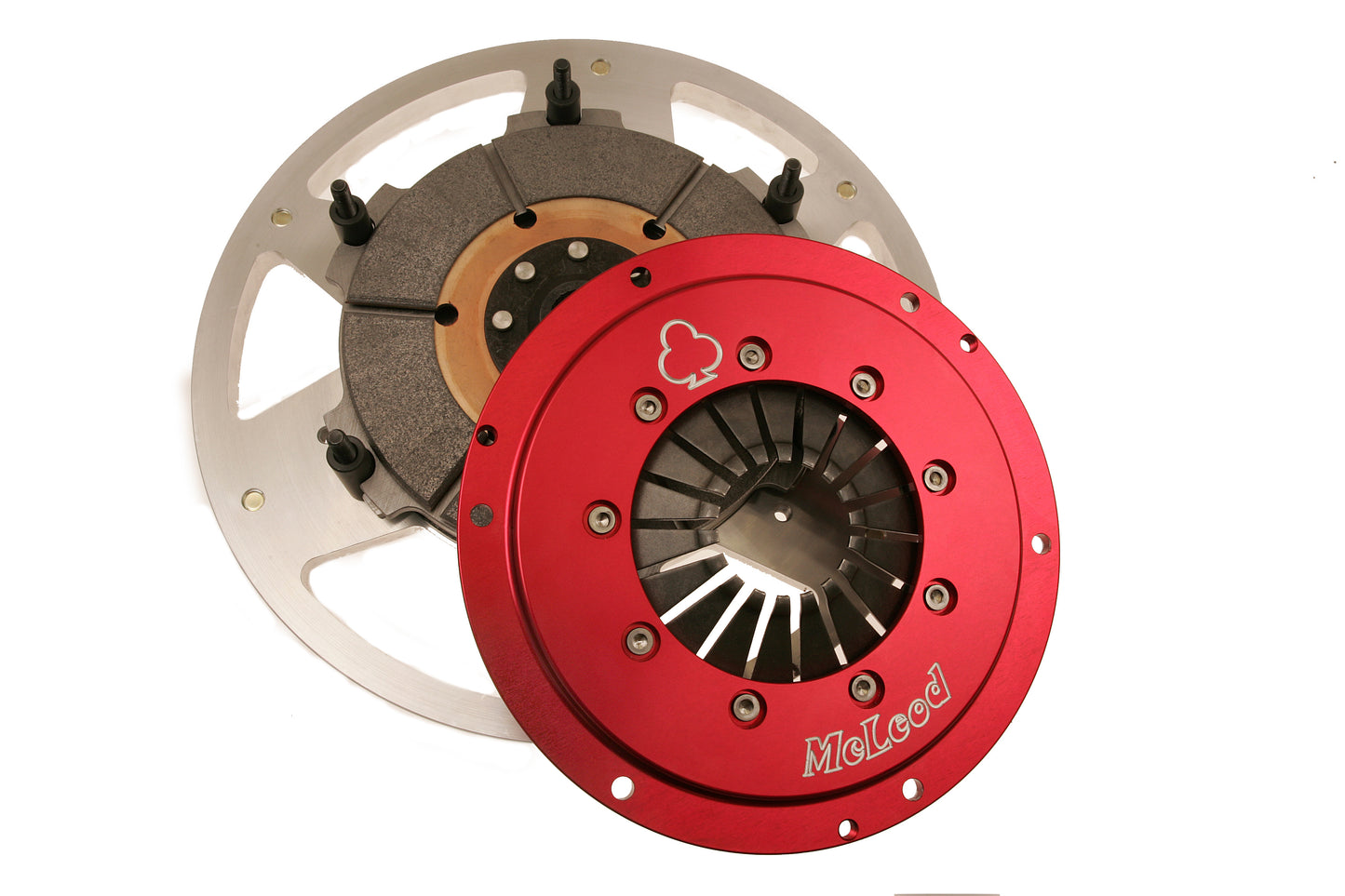

McLeod Mag Force

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.

• • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Vehicle Specific

• Chrysler: 300 63 - 63 7 L Engine, Chrysler: Newport 63 - 63 7 L Engine, Dodge: 880 64 - 65 7 L Engine, Dodge: Challenger 70 - 71 7 L Engine, Dodge: Charger 66 - 71 7 L Engine
• Dodge: Coronet 65 - 71 7 L Engine, Dodge: Monaco 65 - 65 7 L Engine, Dodge: Polara 63 - 65 7 L Engine, Plymouth: Barracuda 68 - 71 7 L Engine, Plymouth: Belvedere 63 - 69 7 L Engine
• Plymouth: Cuda 70 - 71 7 L Engine, Plymouth: Fury 63 - 66 7 L Engine, Plymouth: GTX 68 - 71 7 L Engine, Plymouth: Road Runner 68 - 71 7 L Engine, Plymouth: Satellite 65 - 67 7 L Engine
• Plymouth: Savoy 63 - 64 7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753674302
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Counterweight Assist: No
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.188
• Input Spline Quantity: 18
• Make: Mopar
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 130-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 POUNDS
