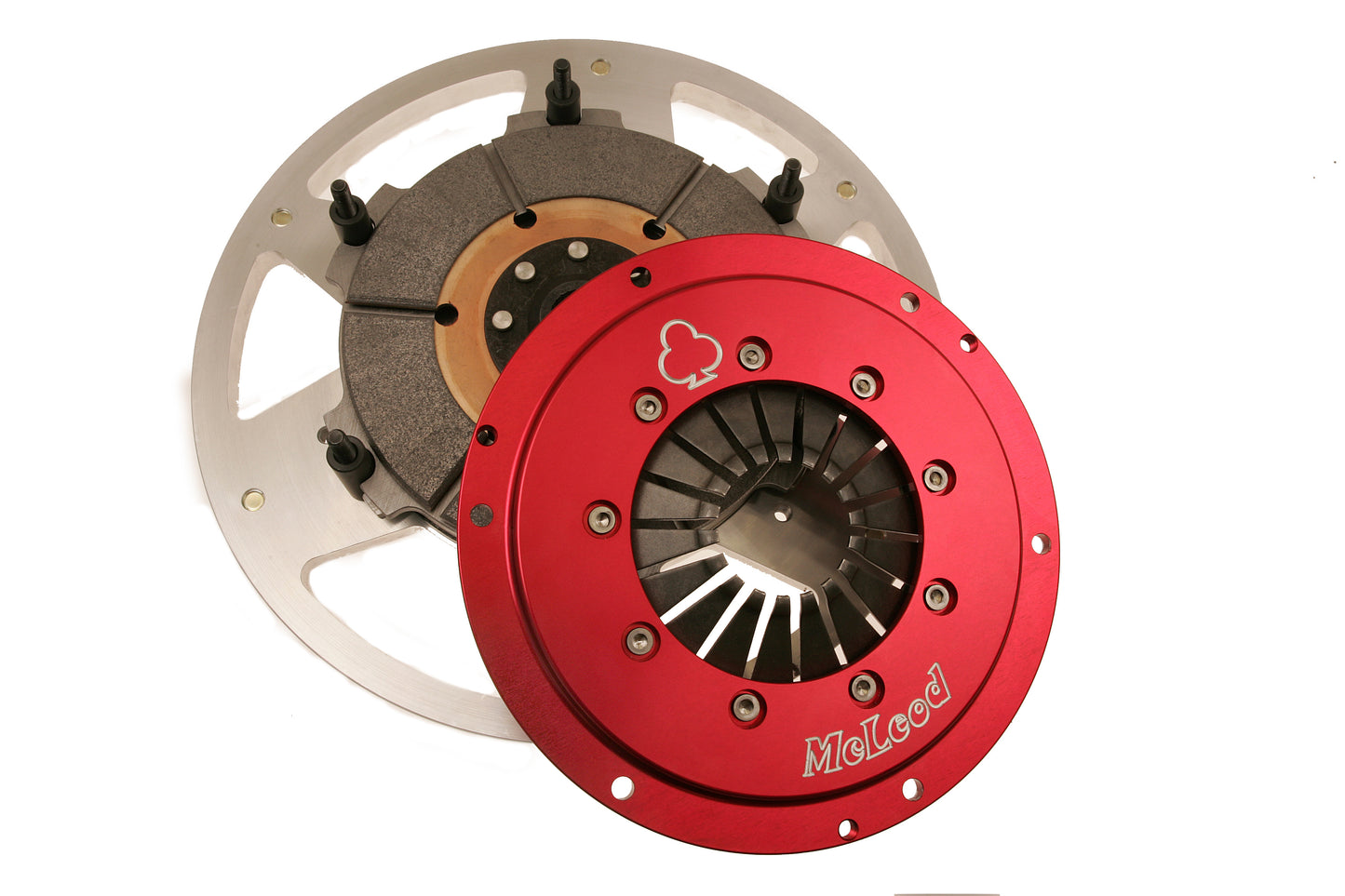

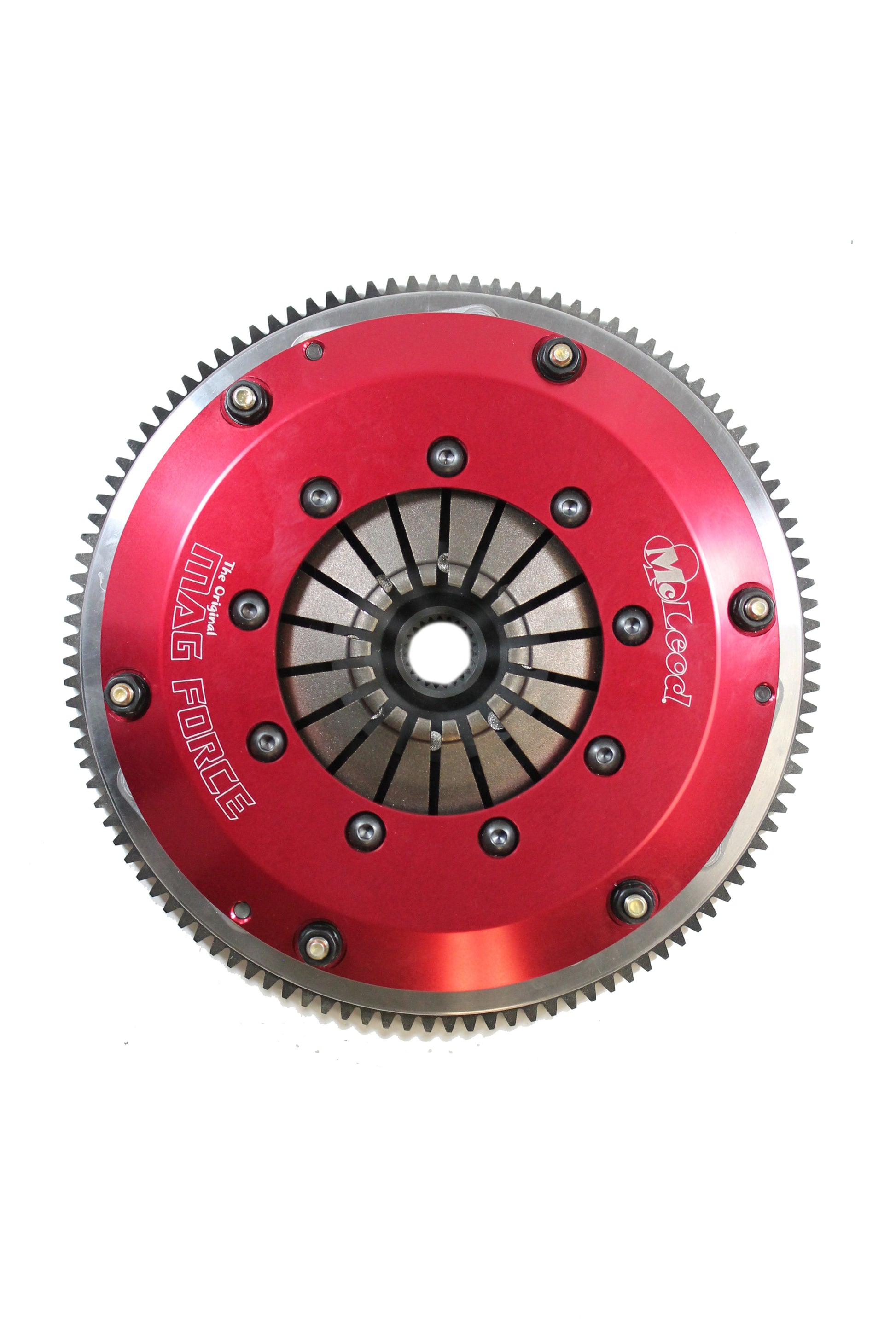

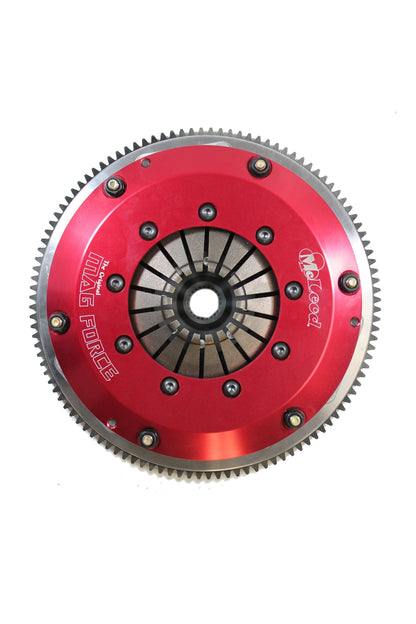

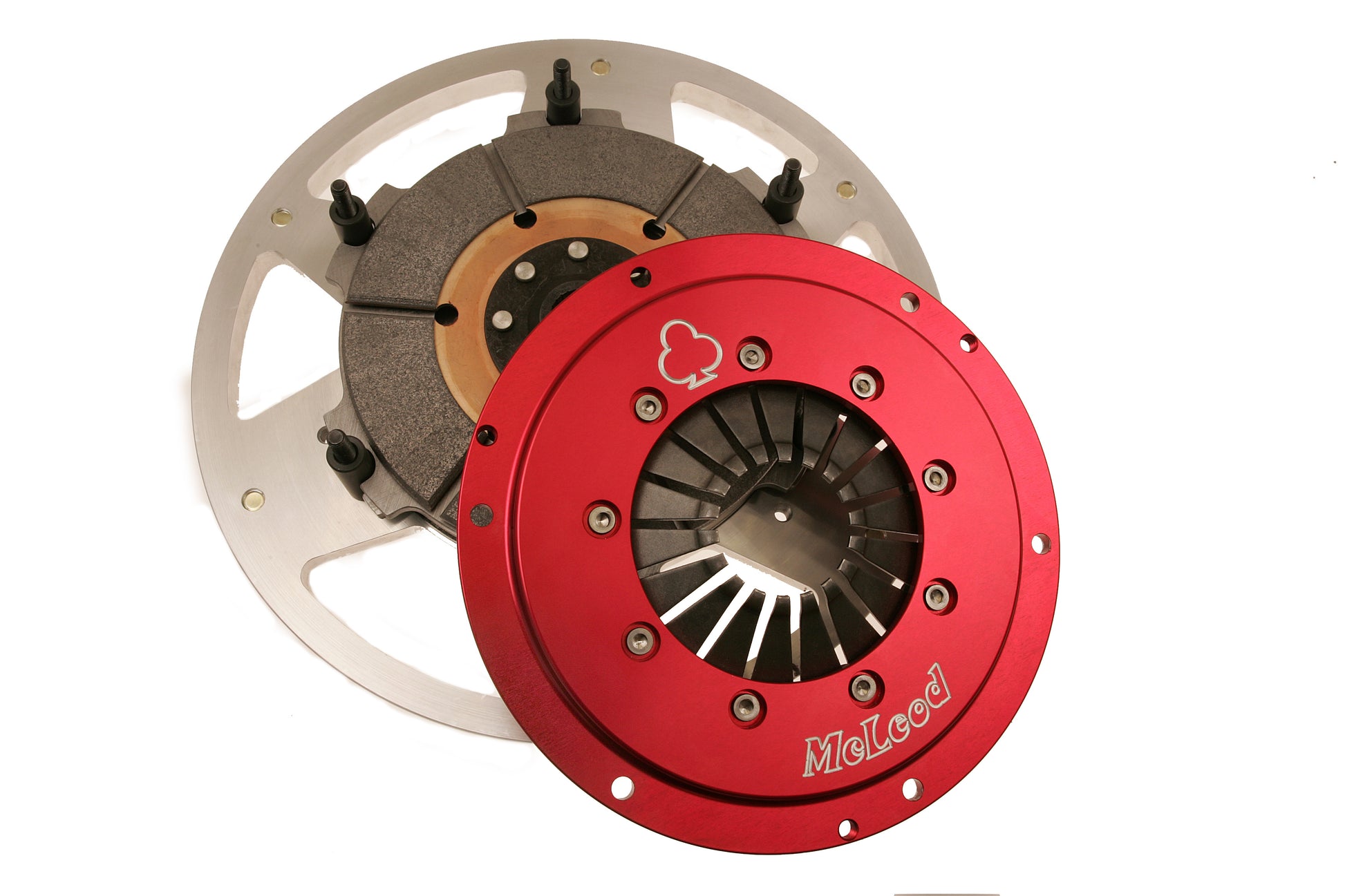

McLeod Mag Force

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.

• • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Vehicle Specific

• Ford: Custom 69 - 72 7 L Engine, Ford: Custom 72 - 72 7.5 L Engine, Ford: Custom 500 73 - 73 7 L Engine, Ford: Custom 500 73 - 73 7.5 L Engine, Ford: E-100 Econoline 78 - 78 7.5 L Engine
• Ford: E-250 Econoline 75 - 80 7.5 L Engine, Ford: E-250 Econoline Club Wagon 75 - 84 7.5 L Engine, Ford: E-350 Econoline 75 - 89 7.5 L Engine, Ford: E-350 Econoline Club Wagon 77 - 84 7.5 L Engine
• Ford: F-100 73 - 74 7.5 L Engine, Ford: F-150 75 - 78 7.5 L Engine, Ford: F-250 73 - 96 7.5 L Engine, Ford: F-250 HD 97 - 97 7.5 L Engine, Ford: F-350 73 - 97 7.5 L Engine
• Ford: F-53 Motorhome Chassis 88 - 97 7.5 L Engine, Ford: F-Super Duty 88 - 96 7.5 L Engine, Ford: Falcon 70 - 70 7 L Engine, Ford: Galaxie 500 69 - 73 7 L Engine, Ford: Galaxie 500 72 - 73 7.5 L Engine
• Ford: LTD 69 - 73 7 L Engine, Ford: LTD 72 - 73 7.5 L Engine, Ford: Mustang 69 - 71 7 L Engine, Ford: Ranchero 70 - 71 7 L Engine, Ford: Ranchero 75 - 77 7.5 L Engine
• Ford: Torino 70 - 73 7 L Engine, Ford: Torino 73 - 74 7.5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753674456
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Usage: Performance
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Make: Ford
• Note: Aftermarket Transmission
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 176-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 25 POUNDS
