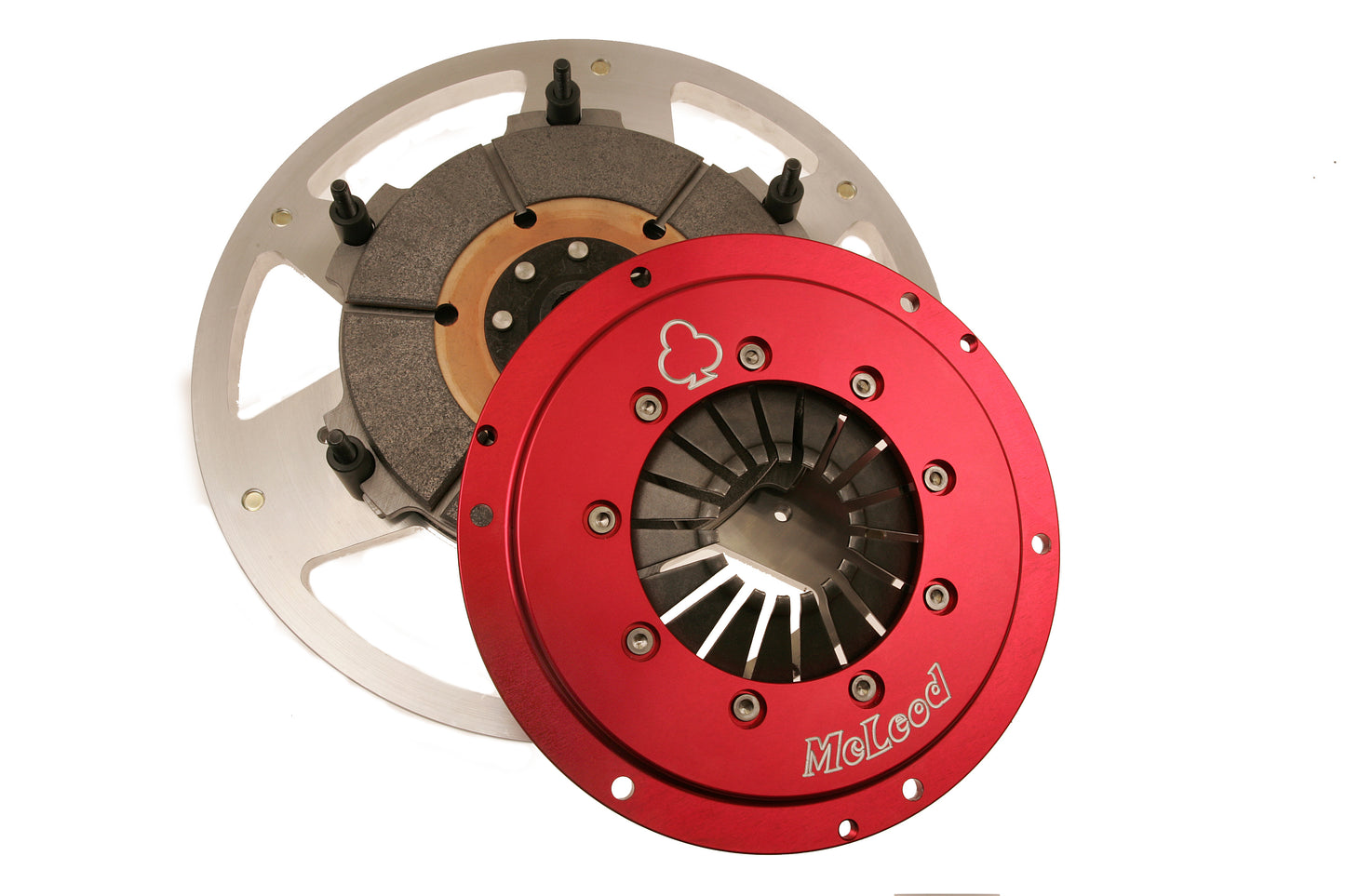

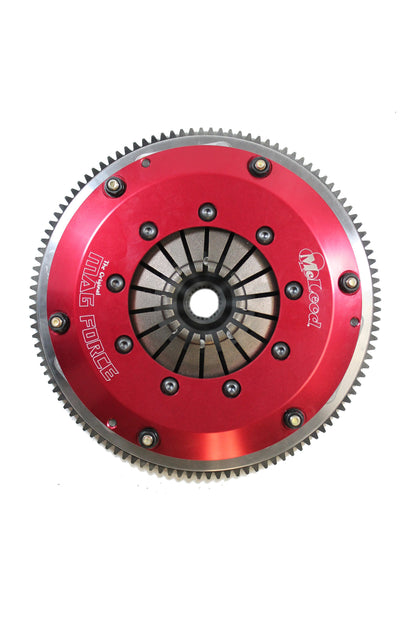

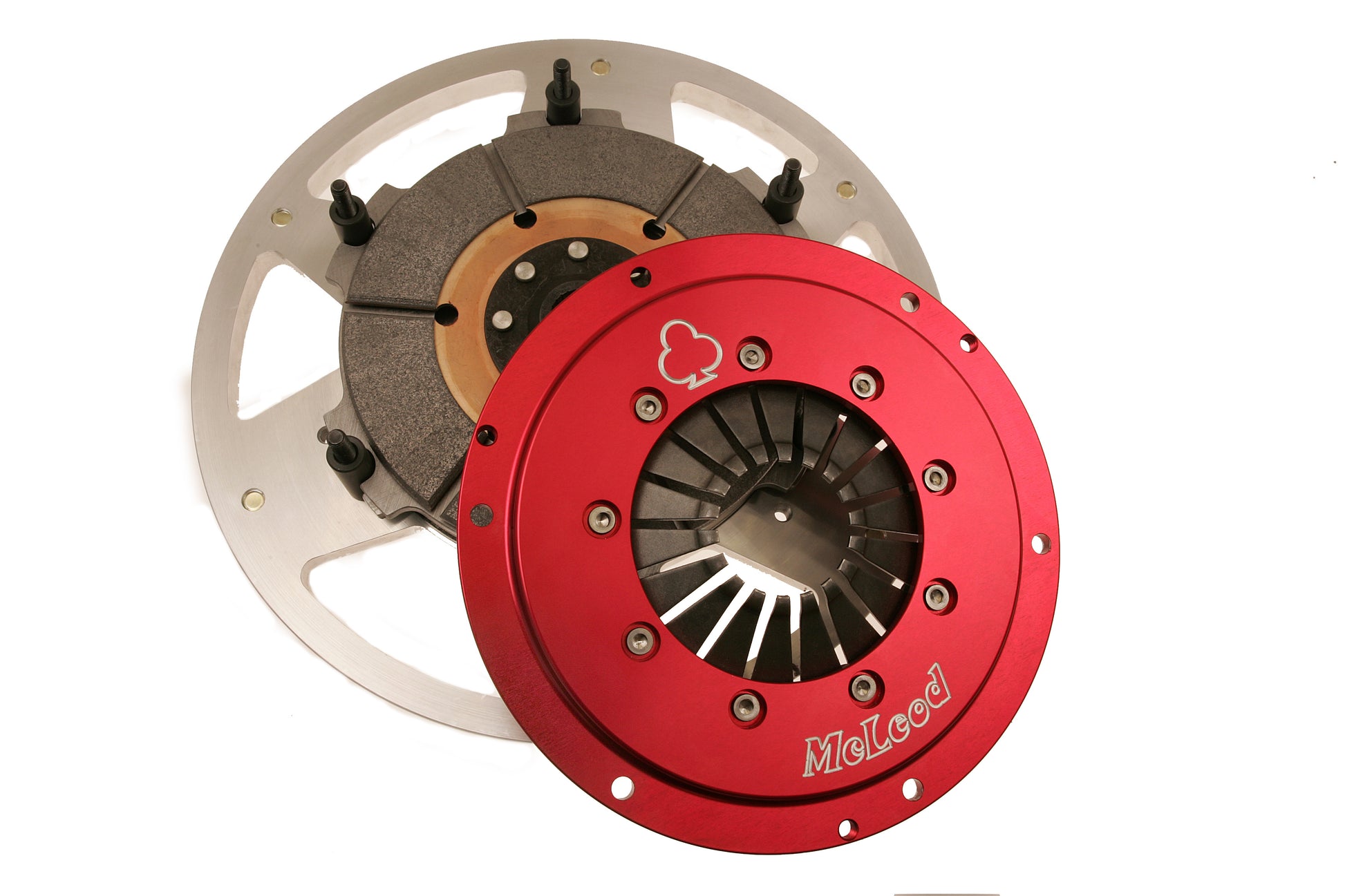

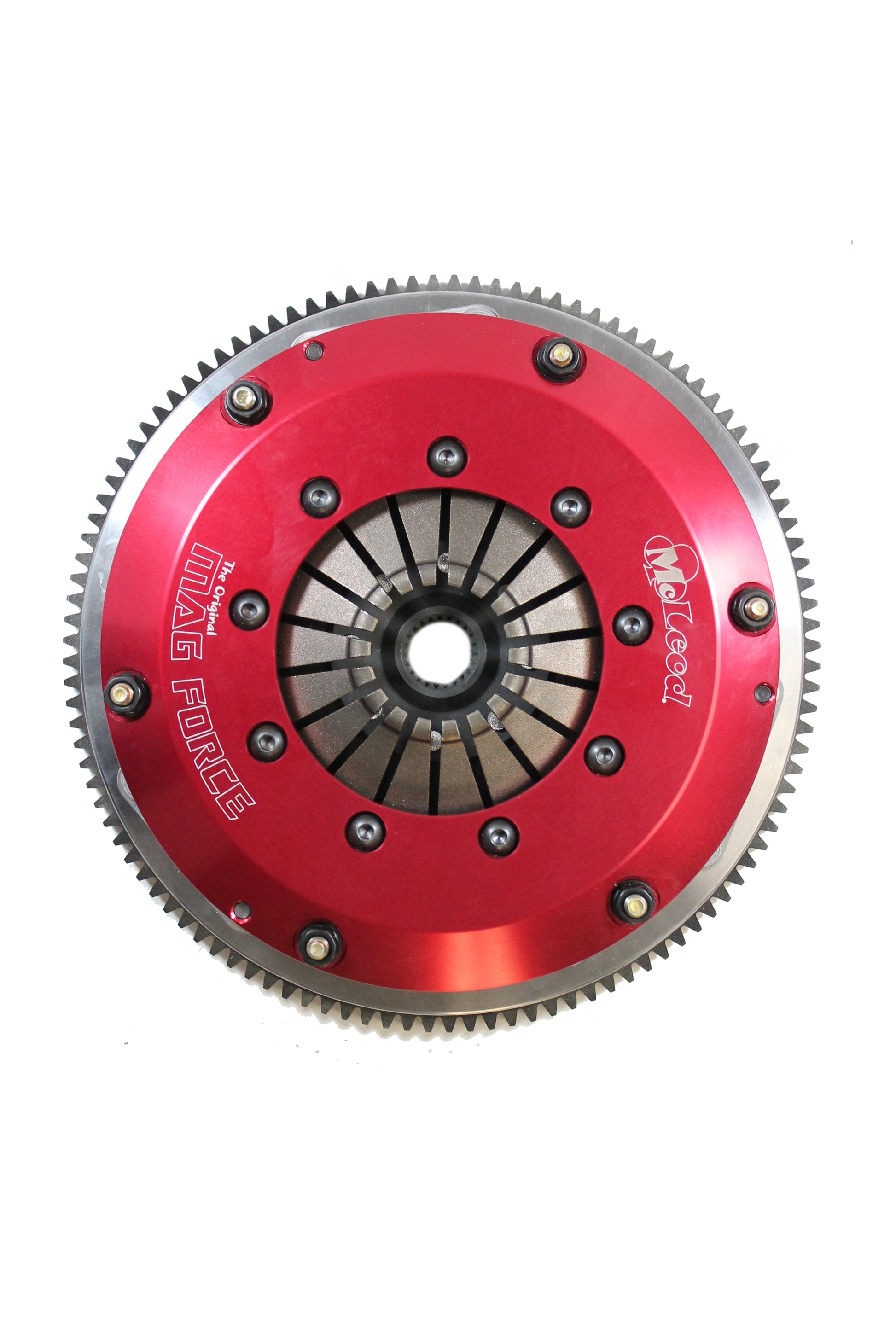

McLeod Mag Force

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.

• • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq

Vehicle Specific

• Ford: 300 63 - 63 5.8 L Engine, Ford: 300 63 - 63 6.4 L Engine, Ford: 300 63 - 63 7 L Engine, Ford: Custom 64 - 67 5.8 L Engine, Ford: Custom 64 - 71 6.4 L Engine, Ford: Custom 64 - 70 7 L Engine
• Ford: Torino 68 - 70 7 L Engine
• Ford: F-100 60 - 63 5.4 L Engine, Ford: F-100 58 - 67 5.8 L Engine, Ford: F-100 68 - 75 5.9 L Engine, Ford: F-100 68 - 75 6.4 L Engine, Ford: F-150 75 - 76 5.9 L Engine
• Ford: F-150 75 - 76 6.4 L Engine, Ford: F-250 60 - 63 5.4 L Engine, Ford: F-250 58 - 67 5.8 L Engine, Ford: F-250 68 - 76 5.9 L Engine, Ford: F-250 68 - 76 6.4 L Engine
• Ford: F-350 60 - 63 5.4 L Engine, Ford: F-350 58 - 67 5.8 L Engine, Ford: F-350 64 - 76 5.9 L Engine, Ford: F-350 68 - 76 6.4 L Engine, Ford: Fairlane 58 - 59 5.4 L Engine
• Ford: Fairlane 58 - 66 5.8 L Engine, Ford: Fairlane 61 - 69 6.4 L Engine, Ford: Fairlane 64 - 69 7 L Engine, Ford: GT40 66 - 69 7 L Engine, Ford: Galaxie 59 - 59 5.4 L Engine
• Ford: Galaxie 59 - 67 5.8 L Engine, Ford: Galaxie 61 - 67 6.4 L Engine, Ford: Galaxie 63 - 67 7 L Engine, Ford: Galaxie 500 68 - 71 6.4 L Engine, Ford: Galaxie 500 68 - 70 7 L Engine
• Ford: LTD 66 - 67 5.8 L Engine, Ford: LTD 66 - 71 6.4 L Engine, Ford: LTD 66 - 70 7 L Engine, Ford: M-400 72 - 73 5.9 L Engine, Ford: M-400 72 - 73 6.4 L Engine, Ford: Mustang 67 - 69 6.4 L Engine
• Ford: Mustang 68 - 70 7 L Engine, Ford: P-350 65 - 67 5.8 L Engine, Ford: P-350 68 - 74 5.9 L Engine, Ford: P-350 68 - 74 6.4 L Engine, Ford: Ranchero 58 - 67 5.8 L Engine
• Ford: Ranchero 67 - 69 6.4 L Engine, Ford: Ranchero 68 - 69 7 L Engine, Ford: Thunderbird 58 - 59 5.4 L Engine, Ford: Thunderbird 58 - 60 5.8 L Engine, Ford: Torino 68 - 70 6.4 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753673749
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 1
• Clutch Usage: Performance
• Counter Weight Kit if Required: 563333 (sold separately)
• Counterweight Assist: No
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 8.000
• Disc Material: Sintered Iron
• Disc Style: Full face
• Engine Balance: Internal
• Flywheel Included: Yes
• Flywheel Material: Billet aluminum
• Hardware Included: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.063
• Input Spline Quantity: 10
• Make: Ford
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Ring Gear Tooth Quantity: 184-tooth
• Throwout Bearing Included: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 22 POUNDS
