LS Engines

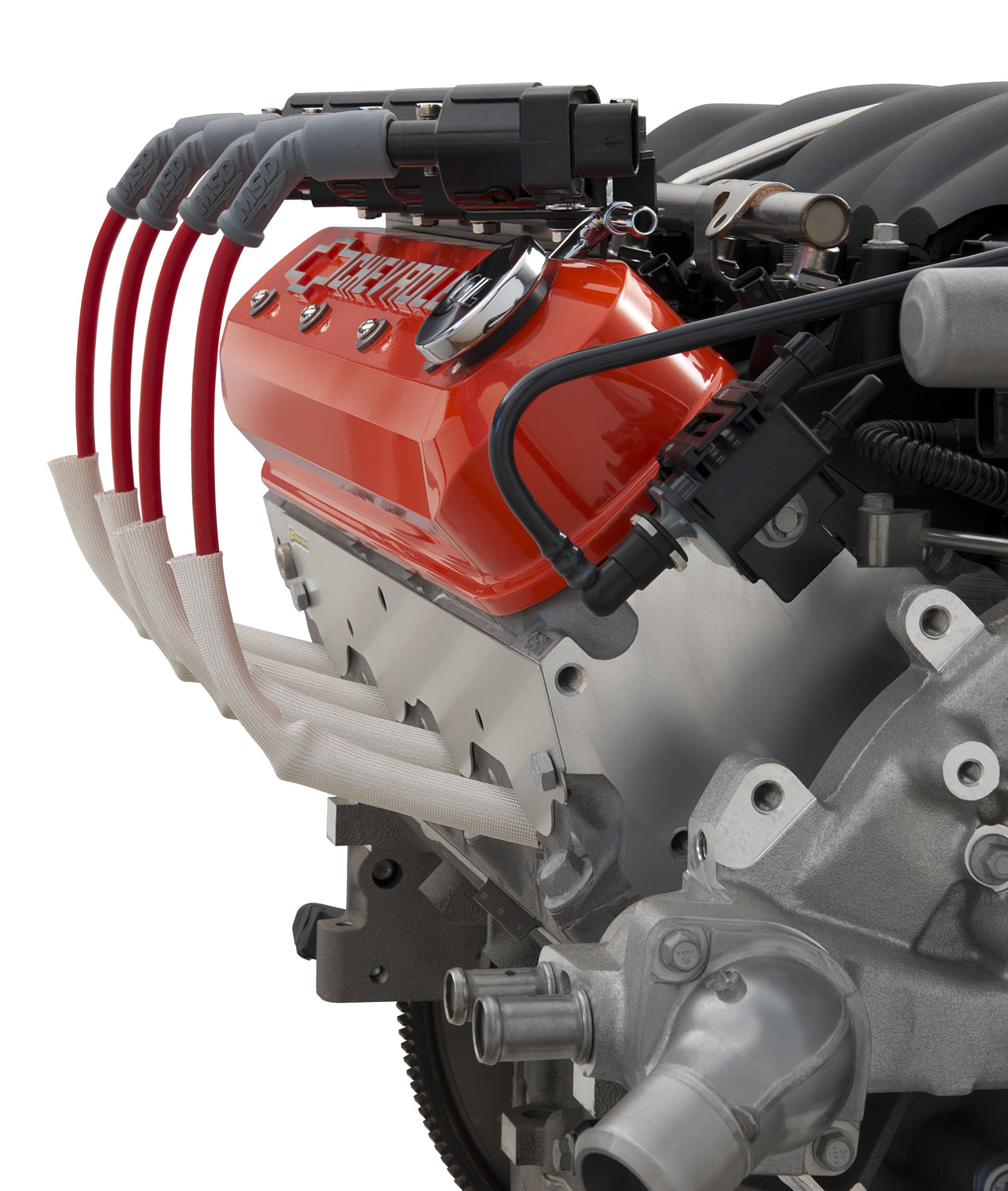

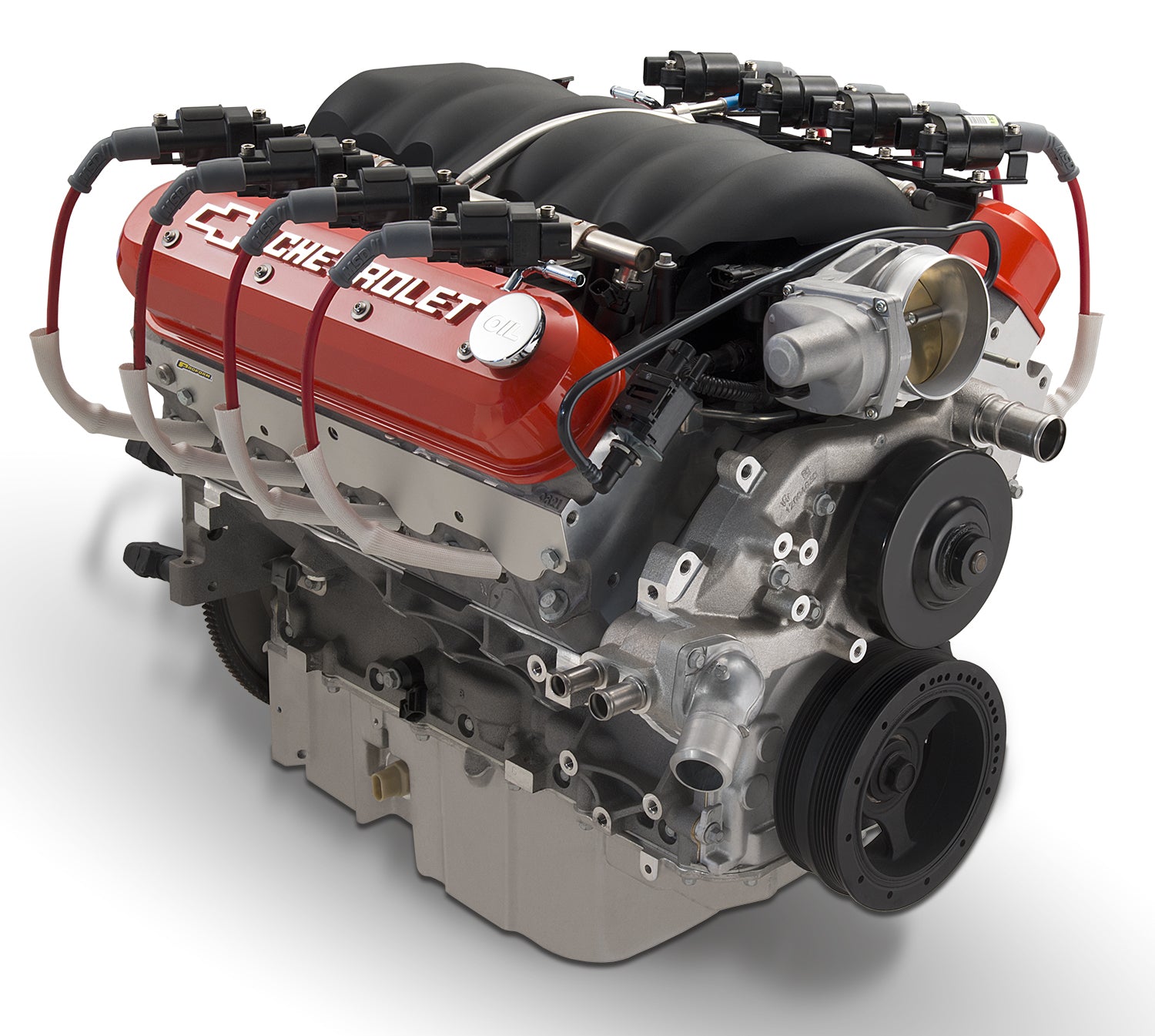

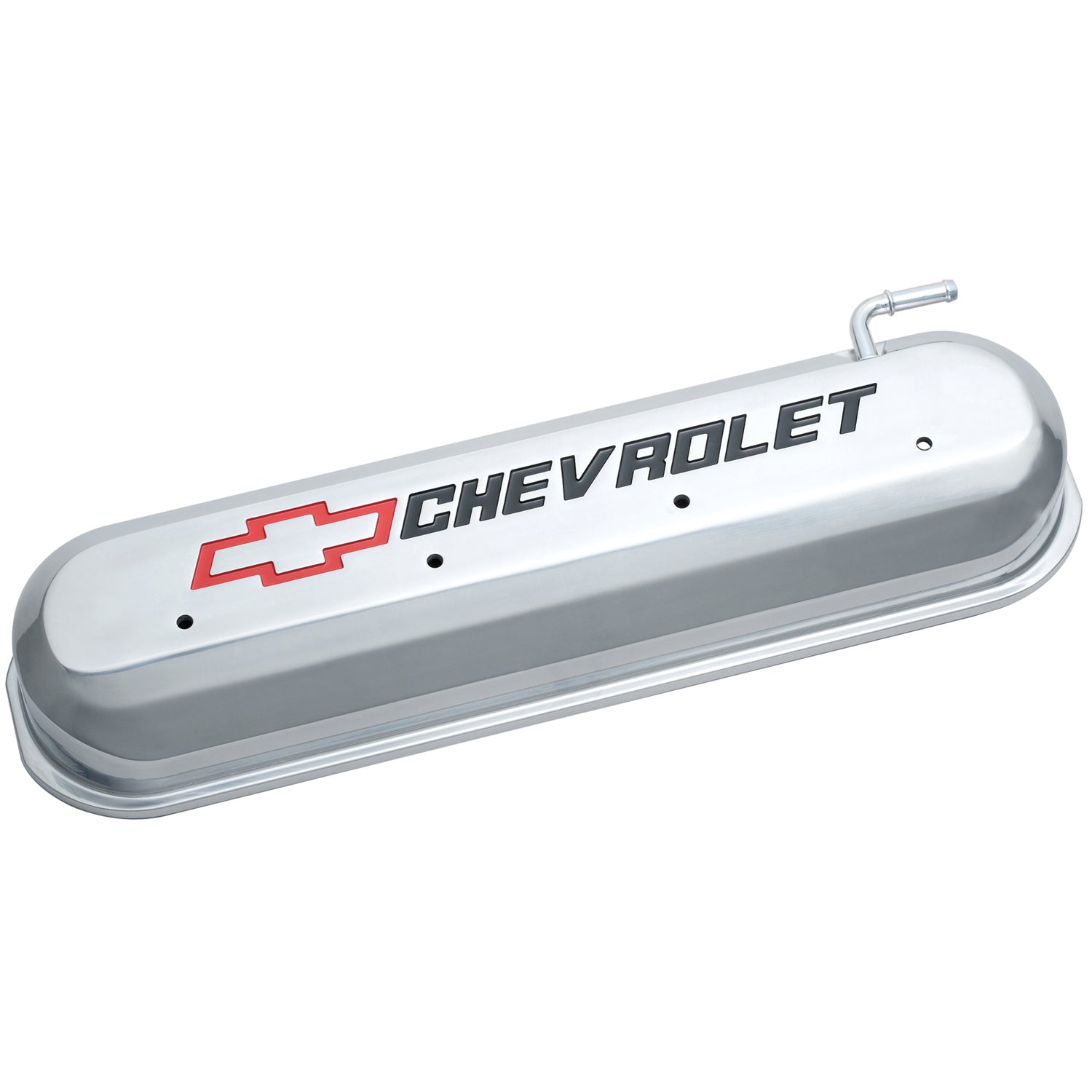

Hurray, the wait is over! Through innovative engineering, PROFORM has developed a valve cover that will take your generic looking stock LS engine, and give it a totally personalized look. These new valve covers are taller than stock valve covers, and can accommodate a wide variety of large valve train applications. These valve covers are available in 5 different styles, which include raised and recessed emblems. Unique mounting studs, and oil restricting baffles are included. Threaded mounting holes for Integrated Ignition Coil Bracket included. The passenger side valve cover has an oil filler hole. Sold in pairs. U.S. Pat. D657,798. You will need to purchase rubber gaskets for these valve covers separately. We recommend Fel-Pro part no. VS 50504 R. Internal Clearance note. The following rocker configurations will require the valve cover to be slightly modified: Jesel part numbers: KSS-317070, KSS-317575, and KSS-318080. Attention LSX-DR cylinder head owners: these valve covers will fit LSX-DR heads and clear the shaft mounted valvetrain. The mounting bolts included with these LS covers are not compatible with the LSX-DR cylinder heads. LSX-DR owners will need to purchase a LSX-DR mounting bolt kit.

Attributes:

• Brand Name: Proform
• GTIN: 00037995412648
• Applications: GM LS Series Engines
• Baffeled: Yes
• Breather Cap Included: No
• Breather Grommet Included: No
• Cap Finish: Polished
• Cap Type: Threaded
• Color: Polished
• Construction: Cast
• Contains Oil Baffles: Yes
• Cylinder Head Type: OHV
• Emblem: CHEVROLET & Bowtie Emblem
• Emblem Style: Recessed Red & Black Emblem
• Engine: Chevy/GM LS
• Feature/Benefit: Hurray, the wait is over!
• Finish: Polished
• Grade Type: Premium
• Grommets Included: Yes
• Height: 70
• Hold Down Tabs Included: No
• Inside Clearance Height: 65.5
• Length: 502
• Make: GM
• Material: Die Cast Aluminum
• Material Thickness: 4.5
• Mounting Bolt(s) Included: Yes
• Mounting Hardware Included: Yes
• Mounting Location: Center
• Note: Jesel part numbers KSS-317070, KSS-317575, KSS-318080 require cover modification
• Oil Filler Cap Included: Yes
• Sheen Level: Semi-Gloss
• Surface Type: Logo
• Universal Or Specific Fit: Specific
• Valve Cover Bolt Pattern: Center Bolt
• Valve Cover Gasket Included: No
• Valve Cover Height: Tall
• Valve Cover Type: Tall
• Width: 127

Extended Information:

• Country of Origin: TW
• Emissions : 3
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Weight: 0 POUNDS
