LINE BRAIDED STAINLESS STEEL #3 DIA. 6FT. LENGTH -3AN AND 1/8 In. NPTF FITTINGS

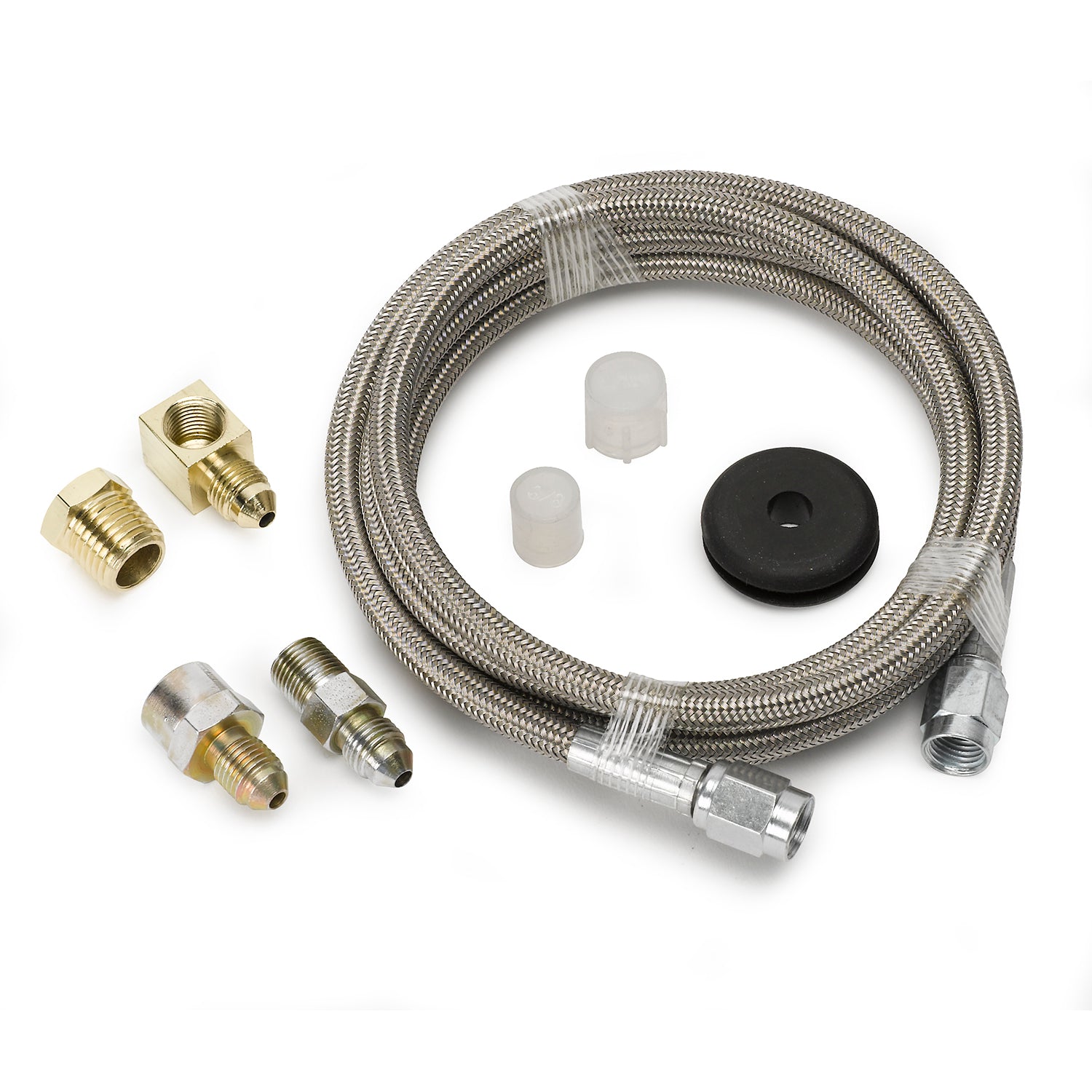

Includes 6ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -3AN male fitting, -3AN male to 1/8" NPT male fitting, -3AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing.

• 4ft hose length
• PTFE lined hose, resistant to most fluids
• Type 304 Stainless braid
• Maximum Operating Pressure - 3000 PSI
• Burst Pressure - 12,000 PSI
• -65 Degrees F to 450 Degrees F Operating Temperature Range
• Includes 1/8" NPT male to -3AN female straight, 1/8" FPT Female to -3AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -3AN to 1/8" NPT female 90 degree fittings

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074032363
• Add-On: N/A

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.25 x 5.75 x 11.5 inches
• Weight: 0.5 POUNDS
