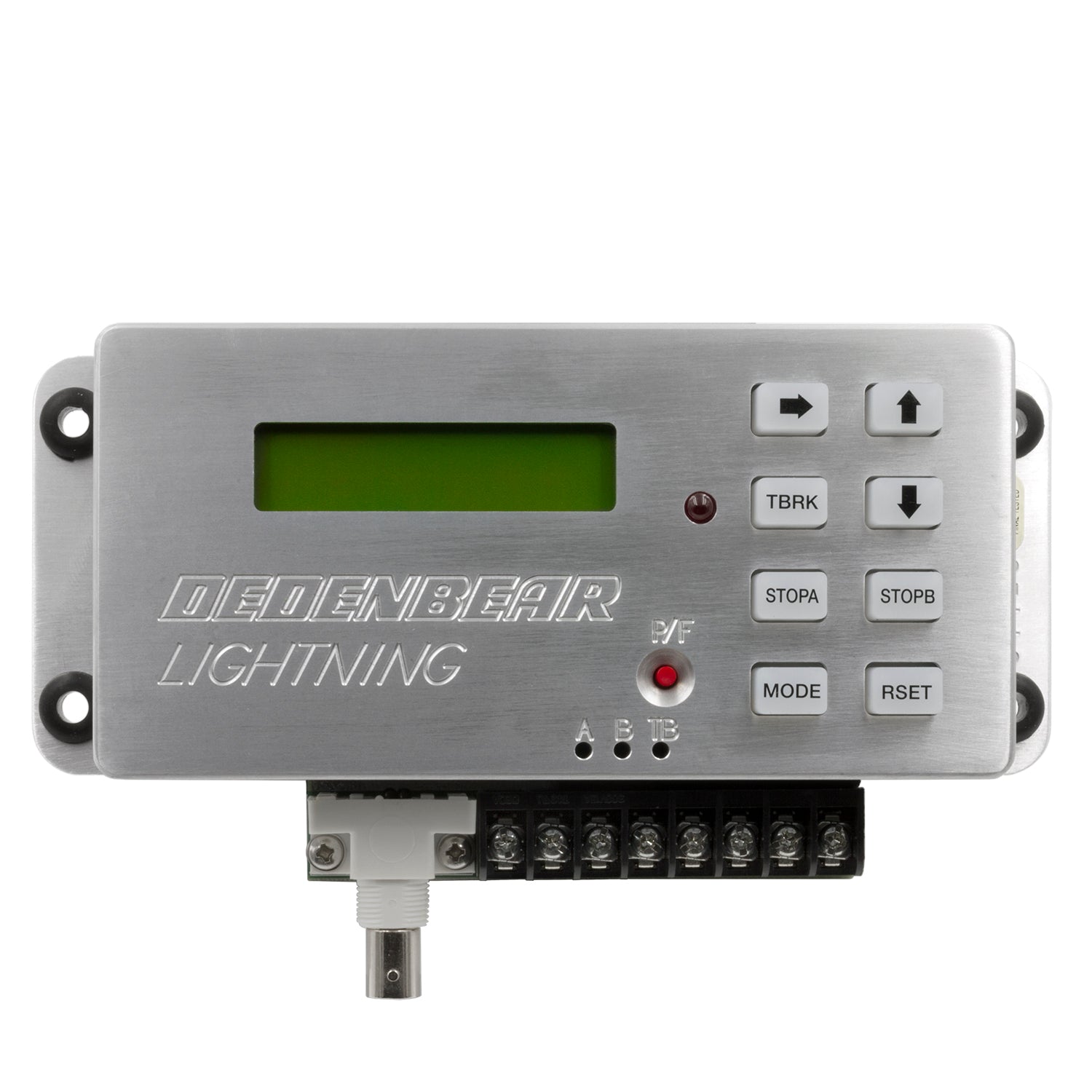

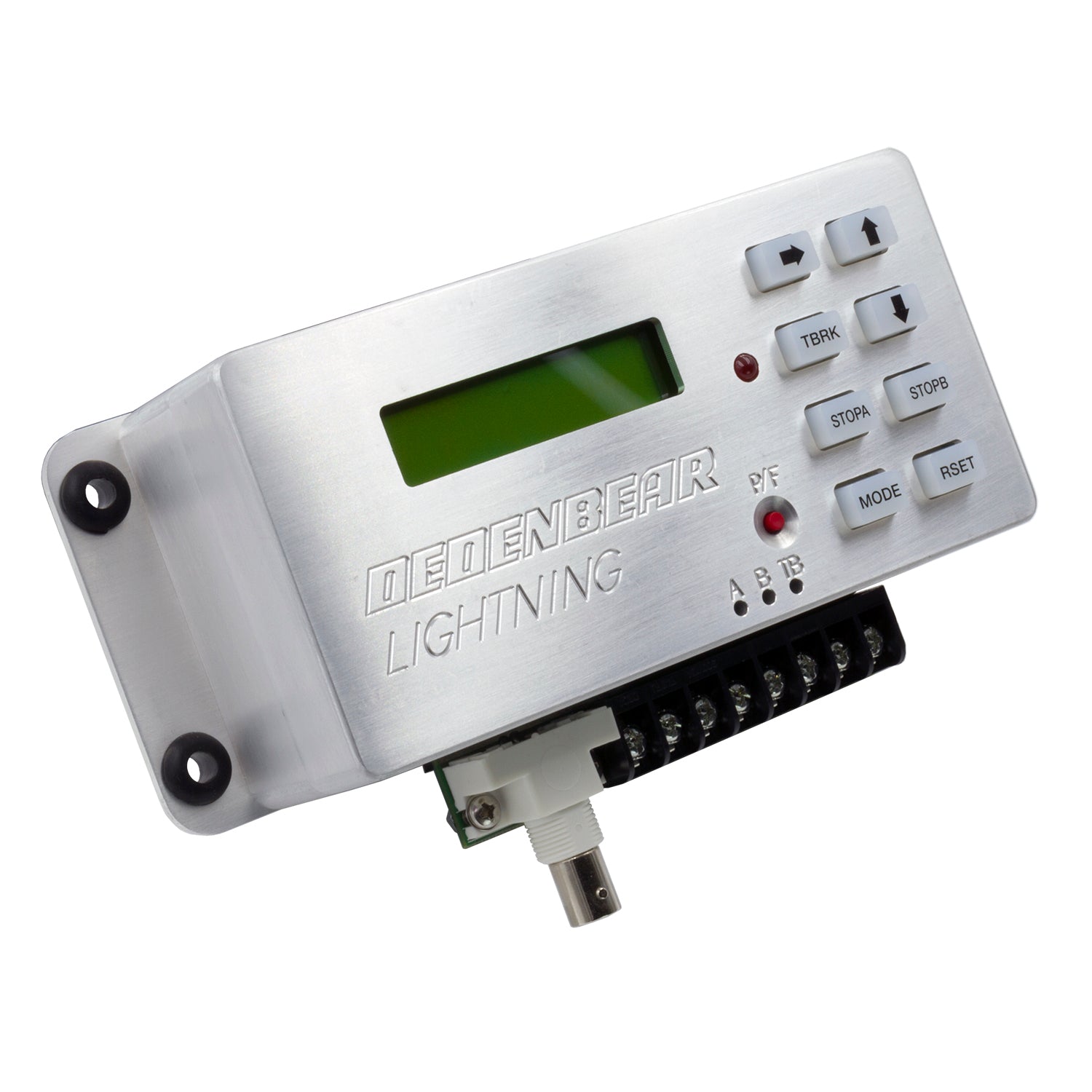

LIGHTNING BILLET SUPER DELAY BOX WITH MULTIPLE OUTPUTS

The Dedenbear L1 Is A Compact Delay Box With Throttle Stop Timers Wrapped In An Attractive Billet Aluminum Enclosure. Engineered With The Reliability And Repeatability That Youve Come To Expect From Dedenbear And Loaded With Features, The Lightning Delay Box Offers Incredible Value.

• Billet aluminum enclosure with lighted keypad and display for night use measures 7.23 in. W x 2.95 in. H x 1.85 in. D.
• 12 and 16 Volt system compatible
• 4 delay modes include: Cross-Talk, Crossover, Interface, and Delay
• Skip up and skip down (same as tap up/down to add or subtract from your delay with the push of a separate button after you release the transbrake button)
• Two 4-stage timers, adjustable to the thousandth (ideal for throttle stops, shift by time, nitrous, lean outs and retards)
• Adjustable transbrake lockout, Crossover Compensation and Trip Protection
• Independent line lock output
• Starting line control output with adjustable time release
• Super Start Automatic Starting Line Control For Activating A Throttle Stop Prior To Staging
• Pro/Full feature allows saving two groups of settings

Attributes:

• Brand Name: Dedenbear
• GTIN: 00046074164453
• Add-On: IK;LDMK;PBSXL;PBSRTD;SC2;SC3
• Size - Metric - MM: 184mm x 75mm x 47mm
• Size - Standard - IN: 7.23in x 2.95in x 1.85in

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 11.5 x 3.5 inches
• Weight: 2.45 POUNDS
