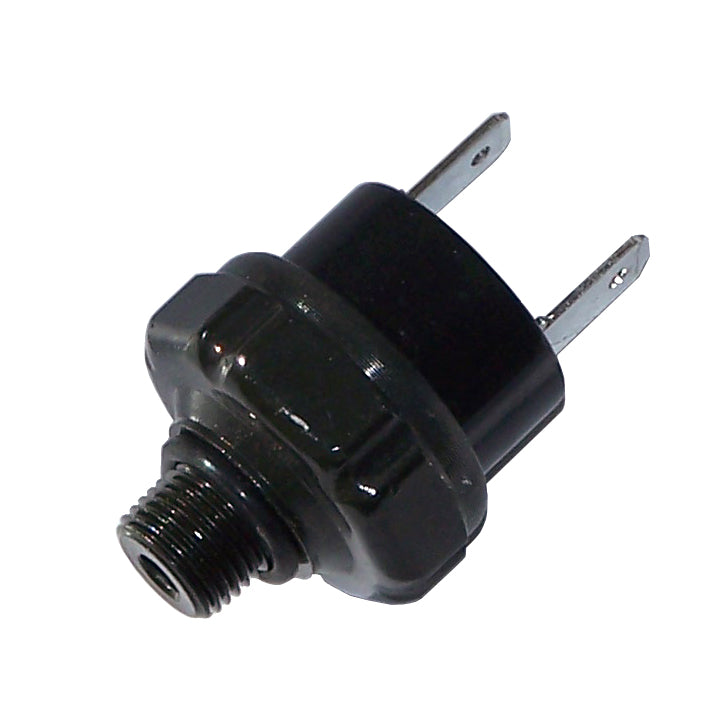

Kleinn Model 2120 Pressure Switch - On: 90 PSI - Off: 120 PSI - 2 Male Spades

Kleinn Automotive Accessories Heavy duty tank-mount pressure switch 2 Male spade style terminal connections works with 6260RC Compressor, turns on at 90PSI and off at 120 PSI, a 5 % PSI variance possible, use a 145 PSI Safety relief valve with this, SKU 52145. The pressure switch receives 12 volt ignition power and sends signal to a required SPDT 30 amp relay (Model 340) that turns the compressor on and off automatically 90 PSI On / 120 PSI Off. We recommend the safety relief valve (52145) on the tank will release a burst of air when the pressure switch fails, when you hear that, kill power to the compressor so that it doesn't burn itself out, then replace the pressure switch.

• On: 90 PSI - Off: 120 PSI
• 2 Male Spade Connections
• Note: 5% tolerance standard
• The use of a relay is recommended (Kleinn model 340)
• 1/4" M NPT w/ 2 Male Spade Terminals
• Non-polarized leads (Ignition 12v input, 12v Output to Relay)

Vehicle Specific

• Universal

Attributes:

• Brand Name: Kleinn Automotive Accessories
• GTIN: 00854508003229
• Attribute 1: Works with HK1-HK2 kits, Safety Valve 52145 Safety Valve Pairs with this pressure switch.
• Attribute 2: On: 90 PSI - Off: 120 PSI
• Attribute 3: Note: 5% tolerance standard
• Attribute 4: The use of a relay is recommended
• Attribute 5: 20 amp max load

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4 x 4 x 4 inches
• Weight: 0.2 POUNDS
