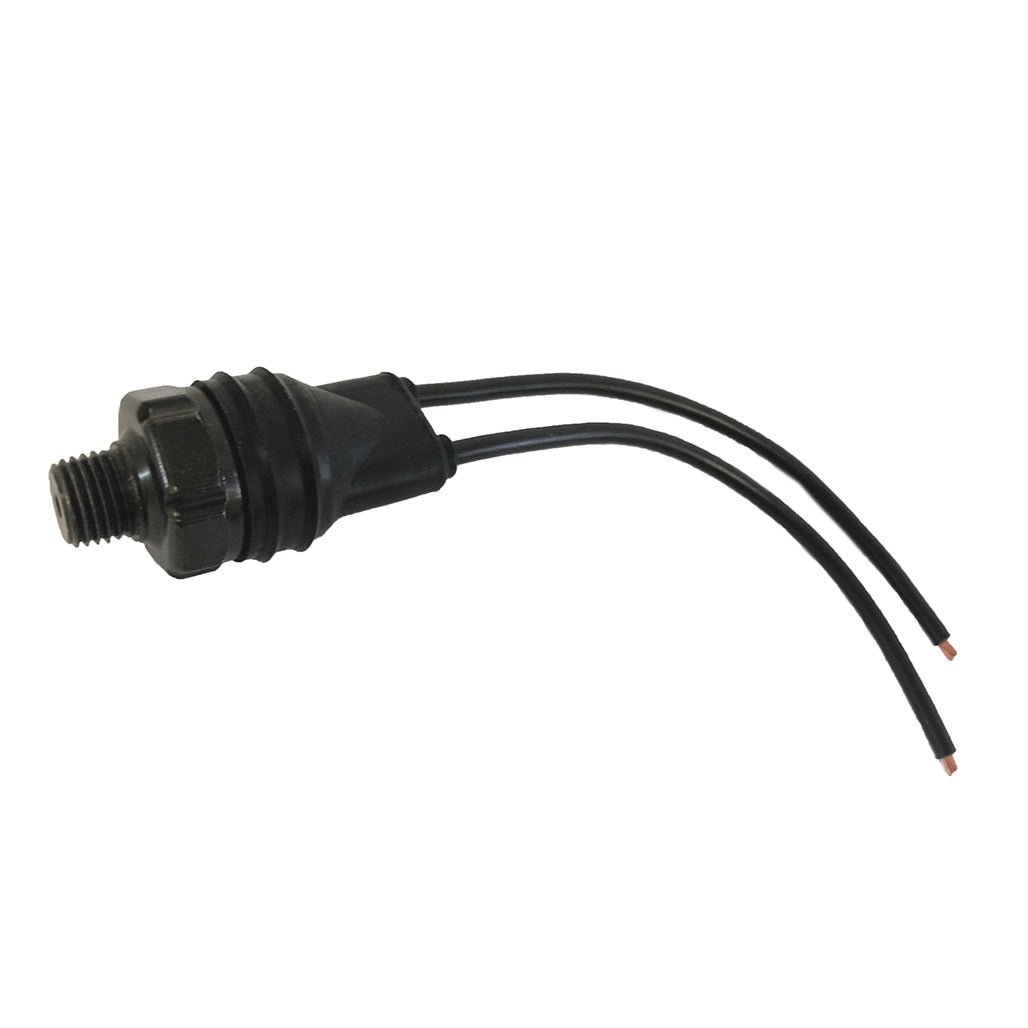

Kleinn Air Horns - 2151 - 110/145 PSI Sealed Switch

Optimize your onboard air system with the Kleinn 2151 heavy-duty sealed air pressure switch, engineered with insulated wire leads to automatically turn your air compressor on at 110 PSI and off at 145 PSI with a standard 5 percent variance tolerance. Perfectly matched for use with Kleinn 6275RC, 6350RC, and 6450RC compressors, this universal 12-volt switch receives ignition power to efficiently signal a required SPDT 30-amp relay (such as Kleinn Model 340) to automate your pneumatic system under a 20-amp maximum load. For ultimate equipment protection against switch failure and to prevent costly compressor burnout, it is highly recommended to pair this unit with a 175 PSI safety relief valve (Kleinn SKU 52175) installed directly on your air tank.

• 20 amp max load
• The use of a relay is recommended (Kleinn model 340)
• Note: 5% tolerance standard
• Non-polarized wires (Ignition 12v input, 12v Output to Relay)
• Sealed 1/4" NPT Pressure Switch

Vehicle Specific

• Universal

Attributes:

• Brand Name: Kleinn Automotive Accessories
• GTIN: 00819147010922
• Add-On: Use a 175 PSI Safety relief valve with this SKU 52175.
• Attribute 1: On: 110 PSI
• Attribute 2: Off: 145 PSI
• Attribute 3: Note: 5% tolerance standard
• Attribute 4: The use of a relay is recommended
• Attribute 5: 20 amp max load

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7 x 3 x 2 inches
• Weight: 0.2 POUNDS
