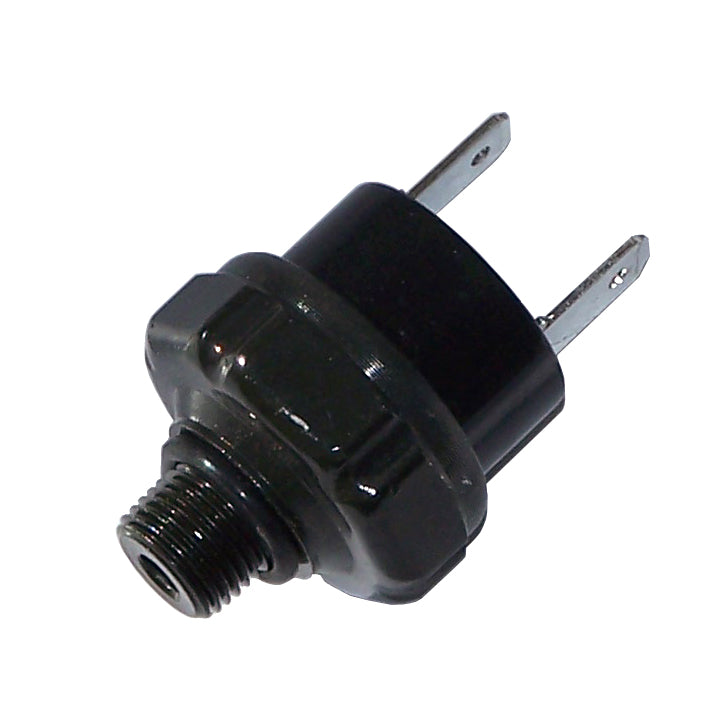

Kleinn Air Horns - 2145 - 110/145 PSI Press. Switch

Optimize your onboard air system with the Kleinn 2145 heavy-duty tank-mounted air pressure switch, engineered with two non-polarized male spade terminal connections to automatically turn your air compressor on at 110 PSI and off at 145 PSI with a standard 5 percent variance tolerance. Perfectly matched for use with Kleinn 6275RC, 6350RC, and 6450RC compressors, this universal 12-volt switch receives ignition power to efficiently signal a required SPDT 30-amp relay (such as Kleinn Model 340) to automate your pneumatic system under a 20-amp maximum load. For ultimate equipment protection against switch failure and to prevent costly compressor burnout, it is highly recommended to pair this unit with a 175 PSI safety relief valve (Kleinn SKU 52175) installed directly on your air tank.

• 2145 Pressure Switch - 110 PSI on, 145 PSI off.
• Note: 5% tolerance standard
• Non-polarized Male Spade Leads
• The use of a relay is recommended (Kleinn model 340)

Vehicle Specific

• Universal

Attributes:

• Brand Name: Kleinn Automotive Accessories
• GTIN: 00854508003205
• Attribute 1: 1/4 in. M NPT Fitting w/ 2 Male Spade Terminals
• Attribute 2: 110 PSI On / 145 PSI Off
• Attribute 3: Controls Operation of Compressor Automatically
• Attribute 4: Use with a relay is required
• Attribute 5: 12 volt - 20 amp max load

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4 x 4 x 2 inches
• Weight: 0.2 POUNDS
