J-Max 3.5" Lift Kit

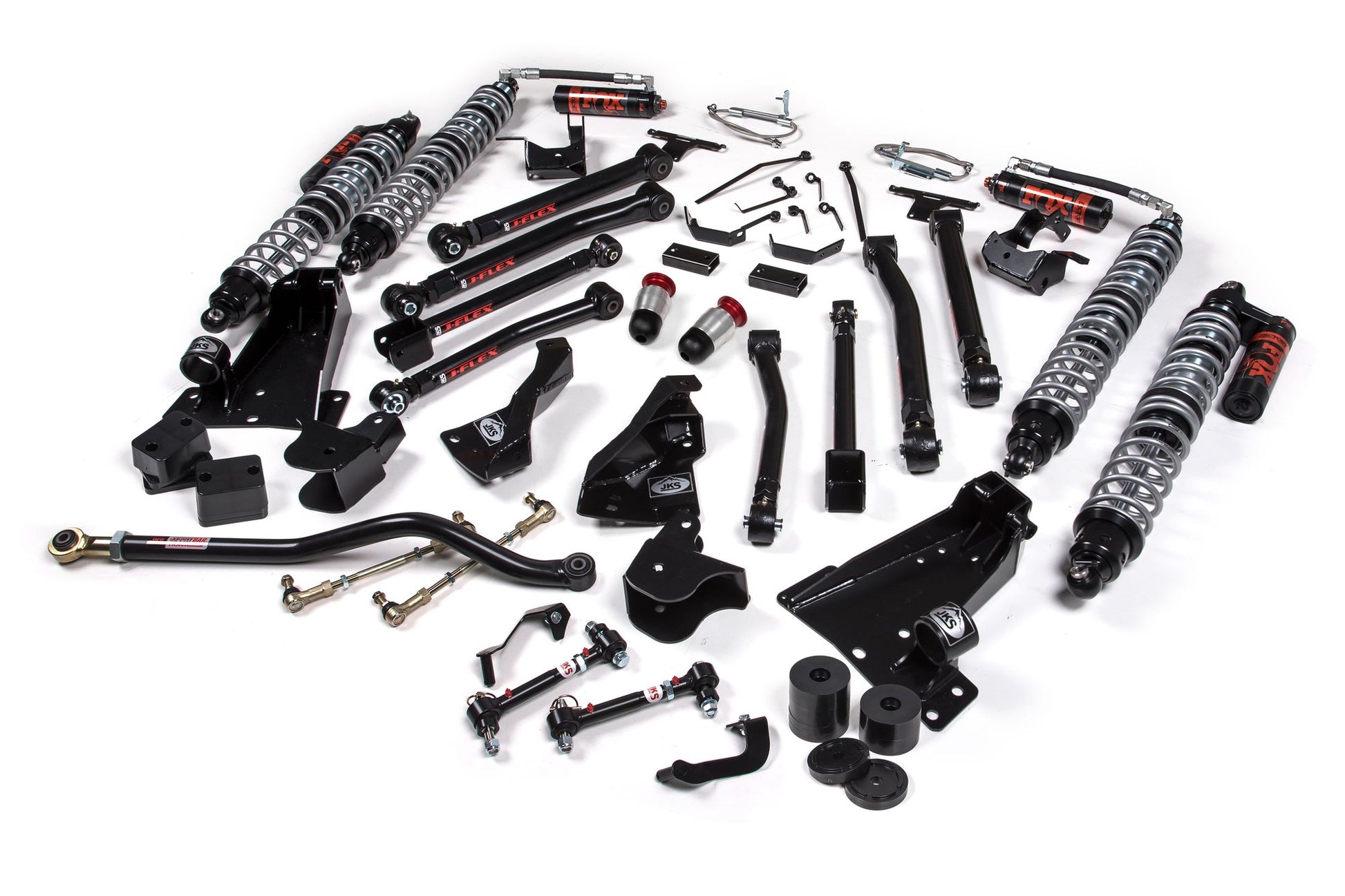

J-Max pulls out all of the stops to offer a truly performance driven suspension package. At each corner are custom tuned FOX 2.5 factory race series coilovers with DSC adjustment. These coilovers offer race proven technology with a larger 2.5” diameter body, dual rate springs and (DSC) dual speed compression adjustment for maximum tunability. Each of the 8 control arms, upper and lowers, front and rear are upgraded to J-Flex adjustable control arm for improved strength, offroad performance and adjustability. In addition, these kits feature high strength bolt-on coilover mounting brackets, an adjustable front track bar, sway bar quicker disconnects and more offer take your Jeeps trail performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to additional travel capable.

• Front FOX 2.5 Remote DSC Coilovers w/ Bolt-On Brackets for improved performance, strength and tunability
• Rear FOX 2.5 Piggyback DSC Coilovers w/ Bolt-On Brackets for improved performance, strength and tunability
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle
• Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off road articulation
• Extended Length Braided Stainless Steel Rear Brake Lines
• Front/Rear J-Flex Upper and Lower Control Arms to add strength and adjustability
• Front/Rear Bump Stop Extensions to properly limit suspension up travel

Attributes:

• Brand Name: JKS
• GTIN: 00814897016156
• Installation Difficulty: Very Difficult
• Installation Time: 14
• J-rating: J-Max
• Shocks Included: FOX 2.5 Factory Race Series

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 24.0000 inches
• Weight: 300.3500 POUNDS
