Pro-Flo XT Big Block Chevy EFI Intake Manifold Rectangle Port

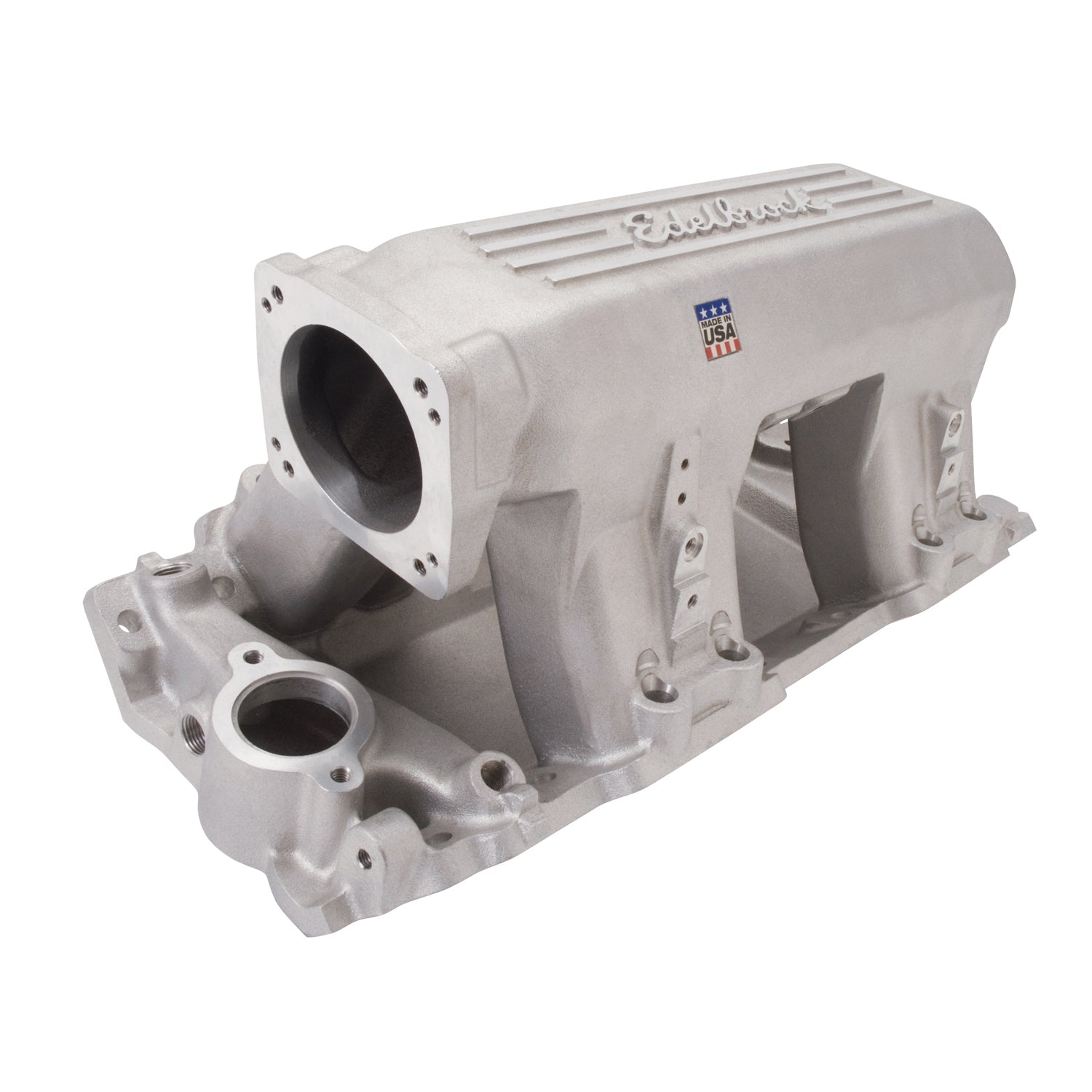

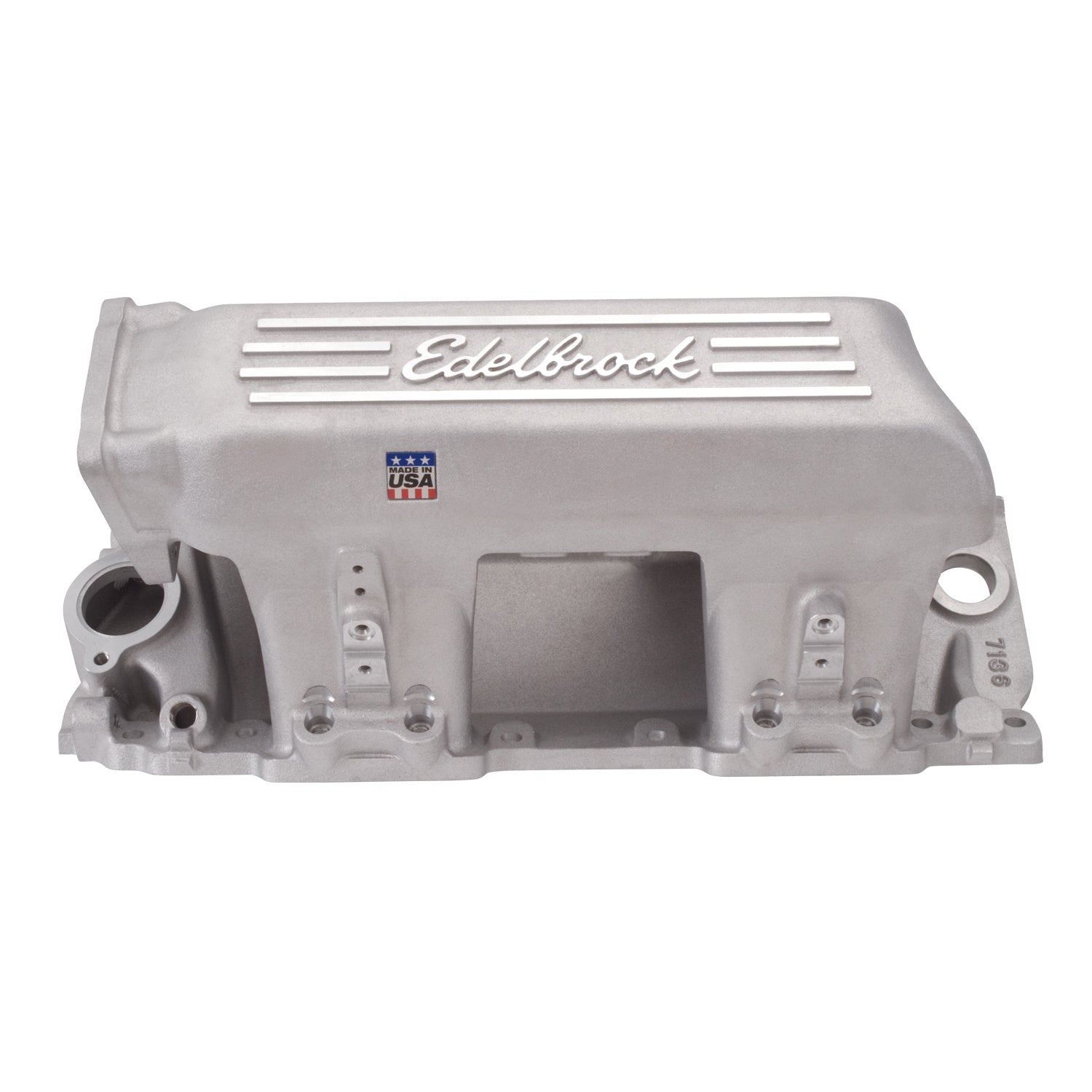

Edelbrock part #7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately). Vehicle Specific

• Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347071364
• Basic Operating RPM Range: 1500-6500
• CNC Ported: No
• Center Maximum Height: 10.000
• EGR Port: No - For Rectangular Port
• Finish: Satin
• Flange Type: Throttle Body XT
• Front Maximum Height: 9.800
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 10.000
• Series: Pro-Flo XT
• Single Or Dual Plane Type: Single
• Vehicle Model: Chevrolet

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.25 x 12.25 x 14 inches
• Weight: 25.4 POUNDS
