INTAKE MANIFOLD

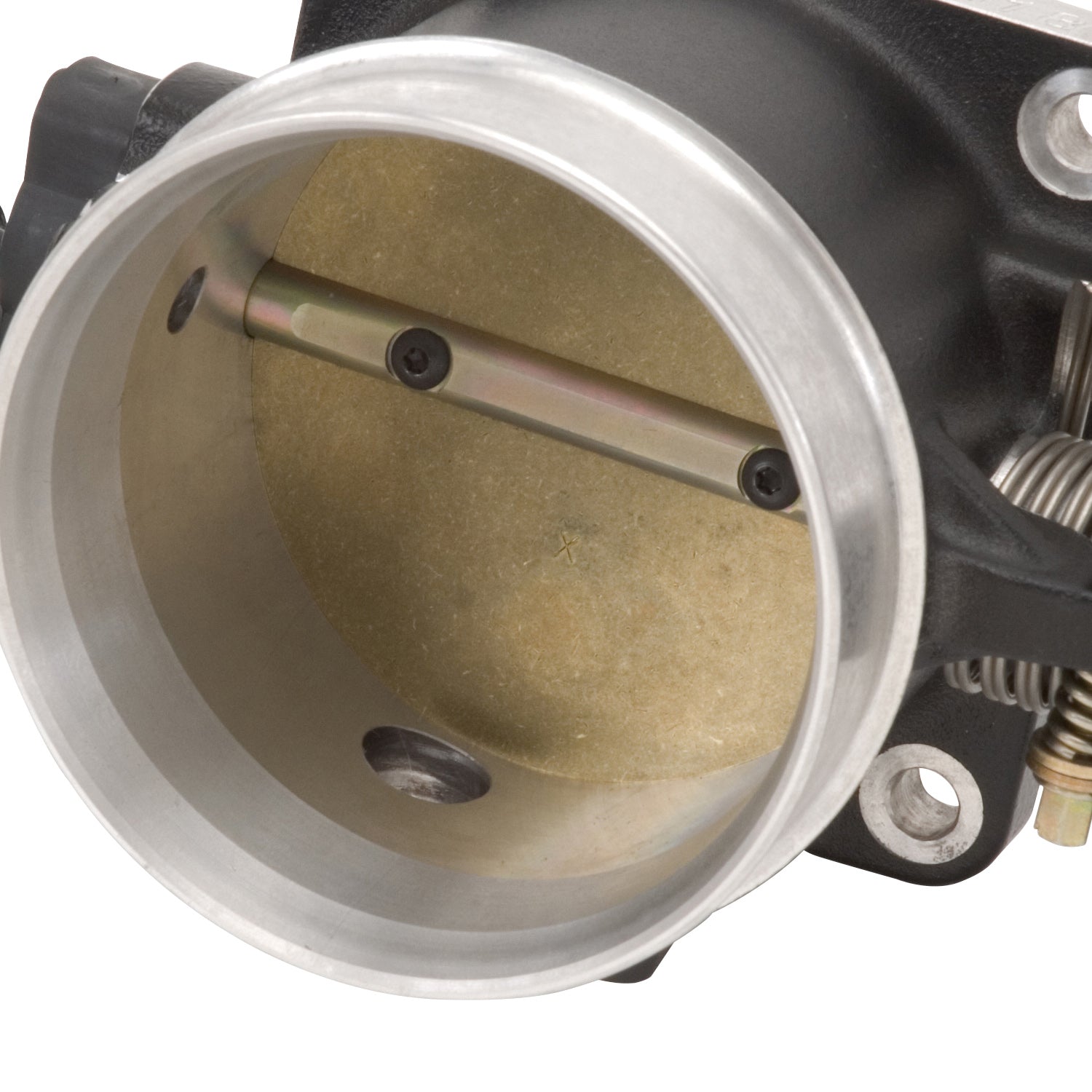

The Edelbrock #38183 is a single-bore 90mm throttle body designed with a 5.0L Ford-style base pad. It is fully machined and assembled by Edelbrock. It includes a Throttle Position Sensor, a progressive throttle cable lever, and cruise and kick-down attachments, all on a threaded shaft for ease of customization. The IAC mounting flange will accept any Ford 5.0 style IAC including our pulse-width modulated Hitachi unit (# 36017). Since most people will re-use their existing controller, none is included. An IAC block-off plate is supplied if needed. #3818 comes with our #3520 Pro-Flo XT EFI Ford kit (Discontinued), and is recommended for all Ford EFI elbow applications. #38183 has all the same components as #3818 except the casting is powder coated with a black mini texture finish prior to machining.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347381838
• Airflow Rate: 1100
• Bore Diameter: 90.0
• Fuel Injectors Included: No
• Fuel System Grade: All
• Fuel System Injection Type: Port
• Fuel System Type: Gas
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: No
• Inlet Diameter: 4.000
• Inlet Type: Single
• Outlet Diameter: 90.0
• Outlet Type: Single Blade
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Throttle Body Finish: Satin
• Throttle Body Material: Aluminum
• Throttle Body Spacer Color: Natural
• Throttle Body Spacer Included: No
• Throttle Body Type: Single Blade
• Throttle Position Sensor Included: Yes
• Venturi Quantity: 1

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9 x 5.75 x 3.75 inches
• Weight: 3.15 POUNDS
