INTAKE MANIFOLD

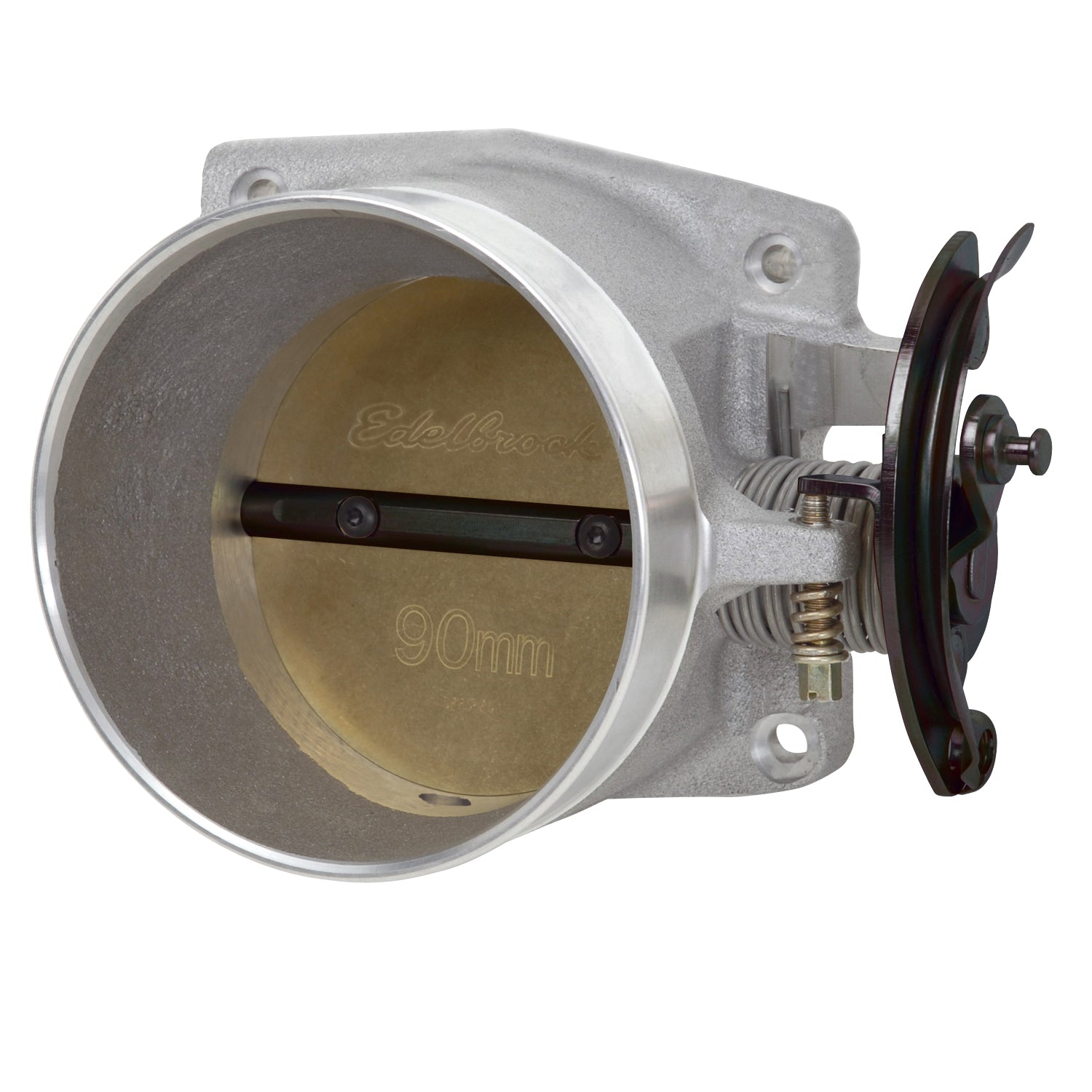

The Edelbrock #3818 is a single-bore 90mm throttle body designed with a 5.0L Ford-style base pad. It is fully machined and assembled by Edelbrock. It includes a Throttle Position Sensor, a progressive throttle cable lever, and cruise and kick-down attachments, all on a threaded shaft for ease of customization. The IAC mounting flange will accept any Ford 5.0 style IAC including our pulse-width modulated Hitachi unit (# 36017). Since most people will re-use their existing controller, none is included. An IAC block-off plate is supplied if needed. #3818 comes with our #3520 Pro-Flo XT EFI Ford kit (Discontinued), and is recommended for all Ford EFI elbow applications. #38183 has all the same components except the casting is powder coated with a black mini texture finish prior to machining.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347038183
• Bore Diameter: 90
• Cubic Feet Per Minute Rating: 1100
• Finish: Satin
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Material: Aluminum
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Series: Pro-Flo XT
• Throttle Position Sensor Included: Yes
• Type: Single Blade

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 9 x 5.75 x 3.75 inches
• Weight: 3.5 POUNDS
