Victor 383 Intake Manifold Chrysler B Block

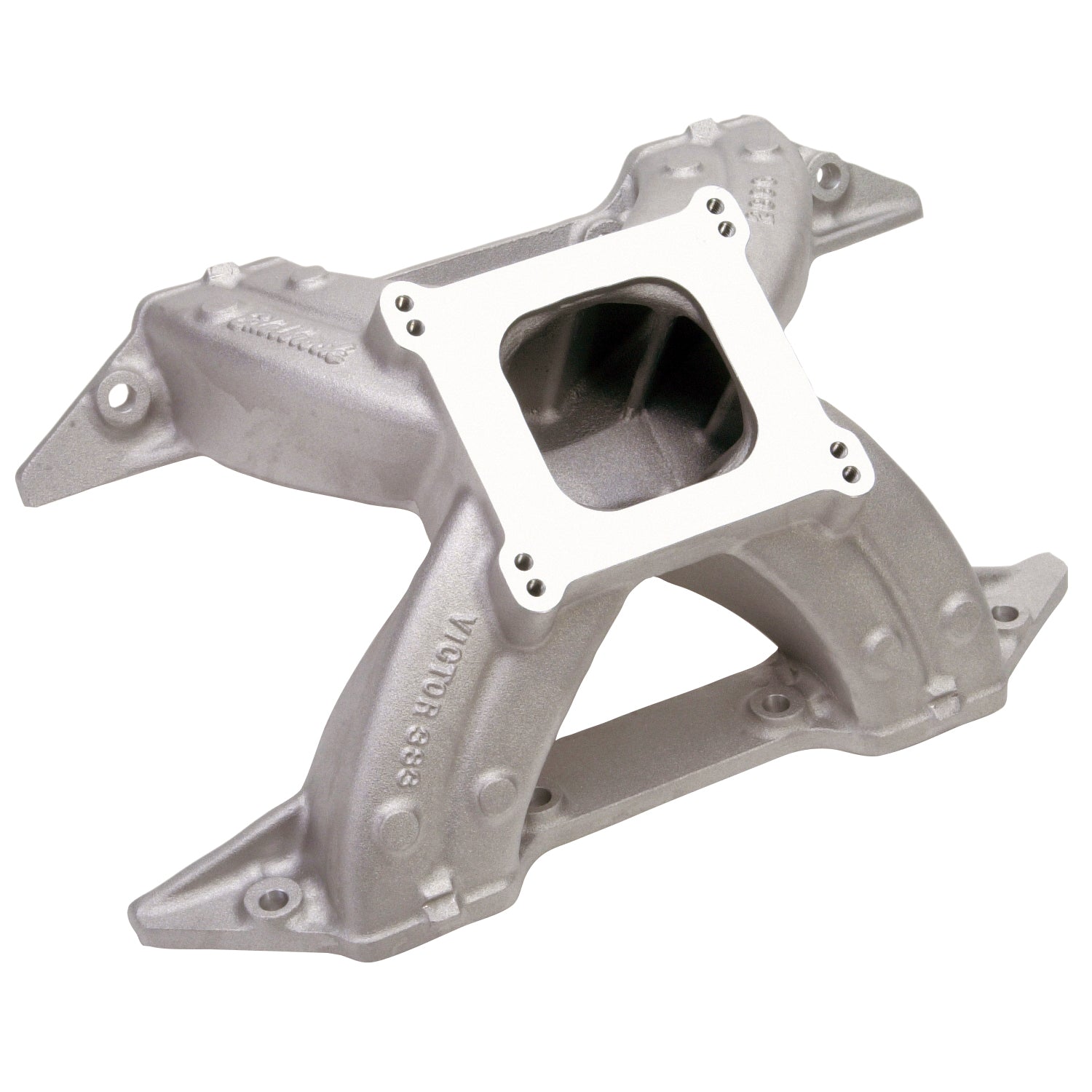

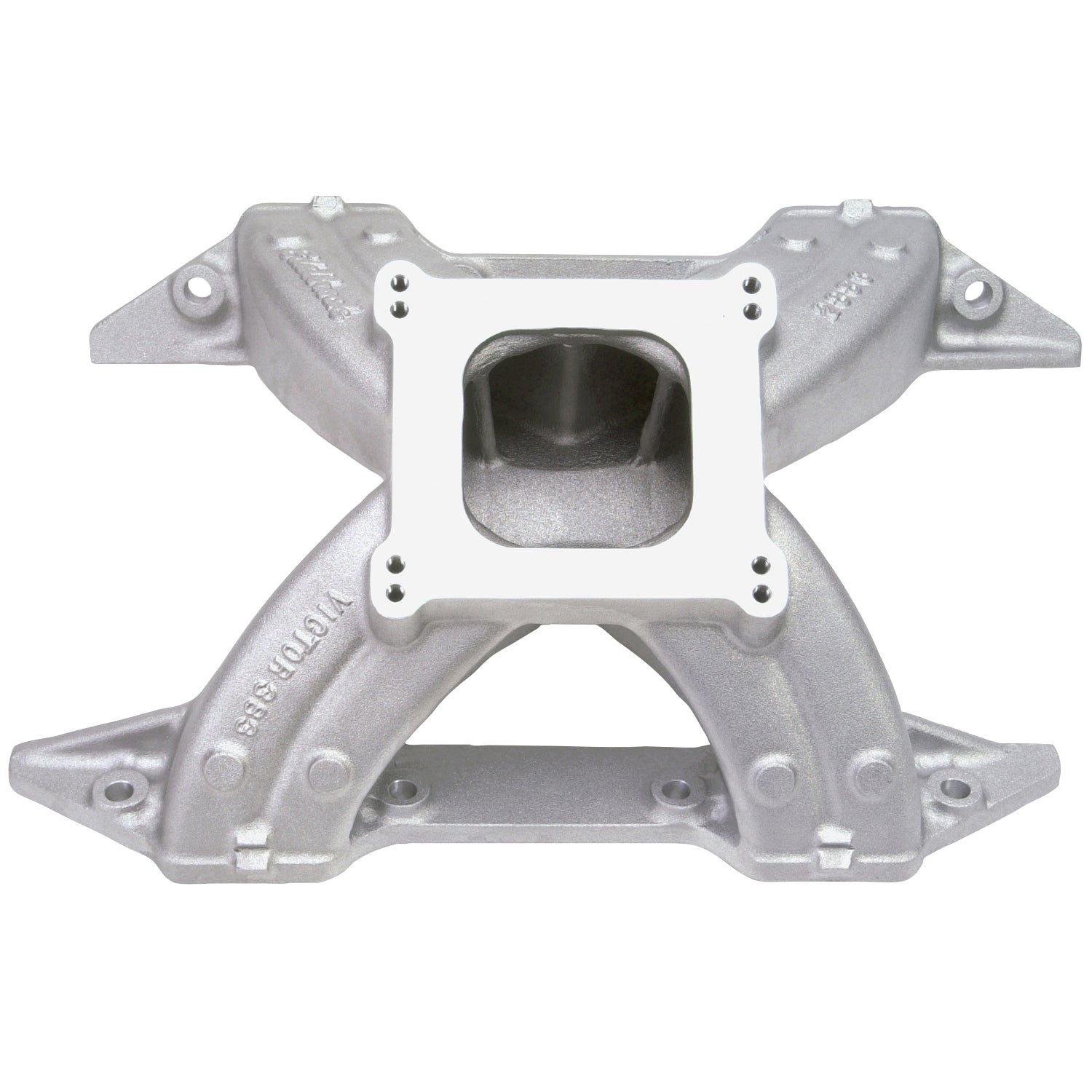

Edelbrock part #2886 Victor 383 intake manifold is available for competition Chrysler B Series Wedge 361-383-400 c.i.d. engines. The computer-generated runners easily handle the high airflow requirements demanded by large displacement low-deck engines. This extra tall single plane manifold combines a long runner, "line of sight" layout, and extended divider walls to maximize torque, power and fuel distribution throughout the mid and upper rpm range. We've added extra material to the square bore carburetor pad and included the inside bolt pattern so it can be easily opened up for Thermo-Quad applications. Match with Edelbrock Performer RPM or Victor aluminum cylinder heads for even higher performance potential. Edelbrock part #7799 valley cover is required when used with Edelbrock Victor series cylinder heads. Vehicle Specific

• Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347028863
• Basic Operating RPM Range: 3500-7500
• CNC Ported: No
• Center Maximum Height: 6.130
• EGR Port: No
• Finish: Satin
• Flange Type: 4150
• Front Maximum Height: 6.130
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 6.130
• Series: Victor
• Single Or Dual Plane Type: Single
• Vehicle Model: Chrysler

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.625 x 14.75 x 7.5 inches
• Weight: 15.6 POUNDS
