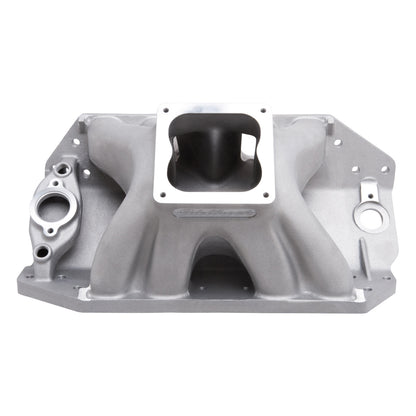

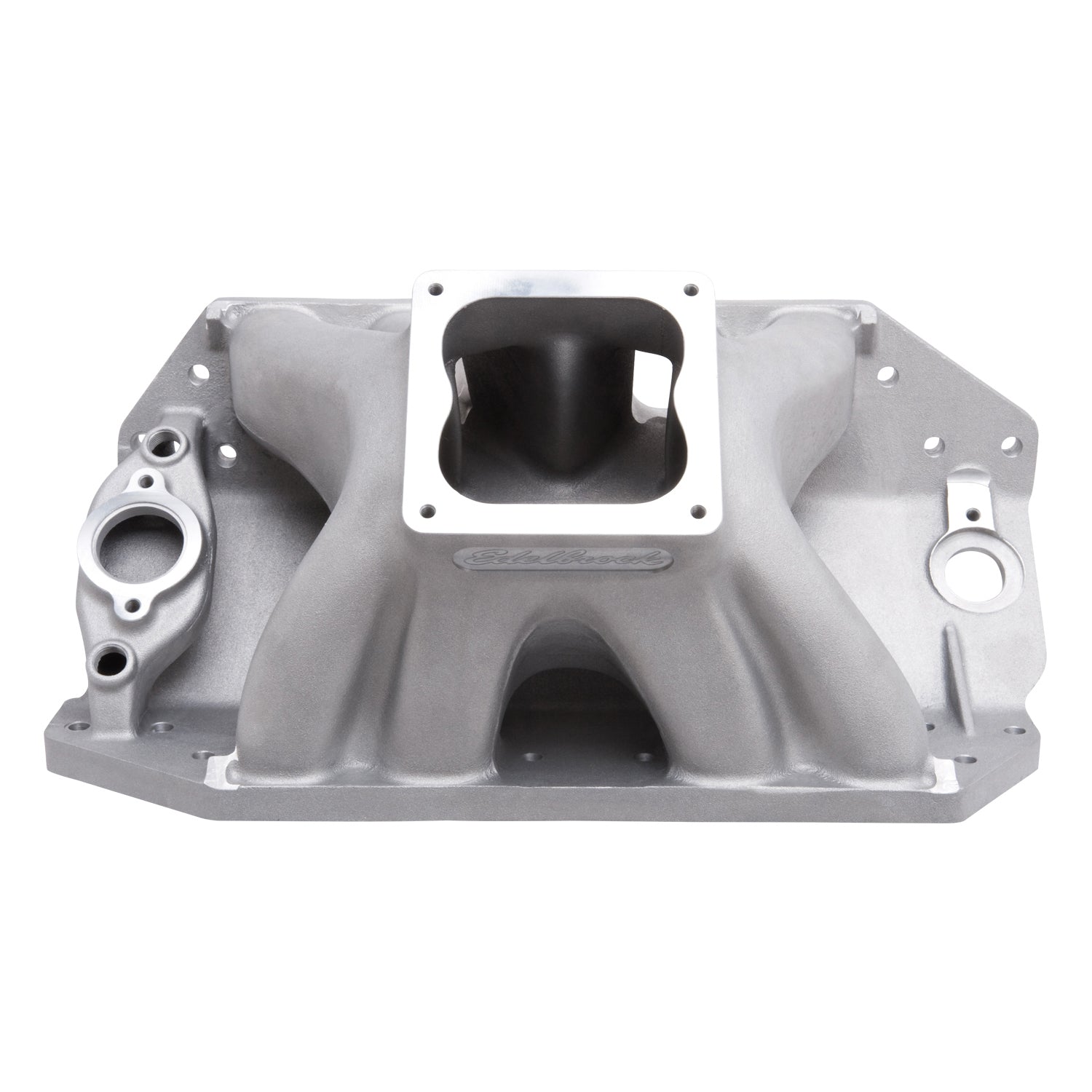

Big Victor 2 Big Block Chevy Spread-Port Tall Deck Intake Manifold

Edelbrock part #28009 Big Victor 2 CNC intake manifold is designed for large cubic-inch or high rpm drag racing big-blocks. The Big Victor 2 is a spread-port design and has been CNC port matched for a proper fit right-out of-the-box, when used with the Edelbrock Big Victor, Brodix, Dart or Pro-Filer Raptor cylinder heads. This manifold has the same features as the standard as-cast Edelbrock Big Victor 2 Spread- Port intakes. This intake manifold is equipped with a 4500 Series flange and will accept 2.25" throttle body butterflies without a spacer or modification. Vehicle Specific

• Chevrolet:Big-Block Race

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347280094
• Basic Operating RPM Range: 3500-8500
• CNC Ported: Yes
• Center Maximum Height: 9.530
• EGR Port: No
• Finish: Satin
• Flange Type: 4500
• Front Maximum Height: 9.530
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 9.530
• Series: Victor
• Single Or Dual Plane Type: Single
• Vehicle Model: Chevrolet

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 14.75 x 14.5 inches
• Weight: 37.4 POUNDS
