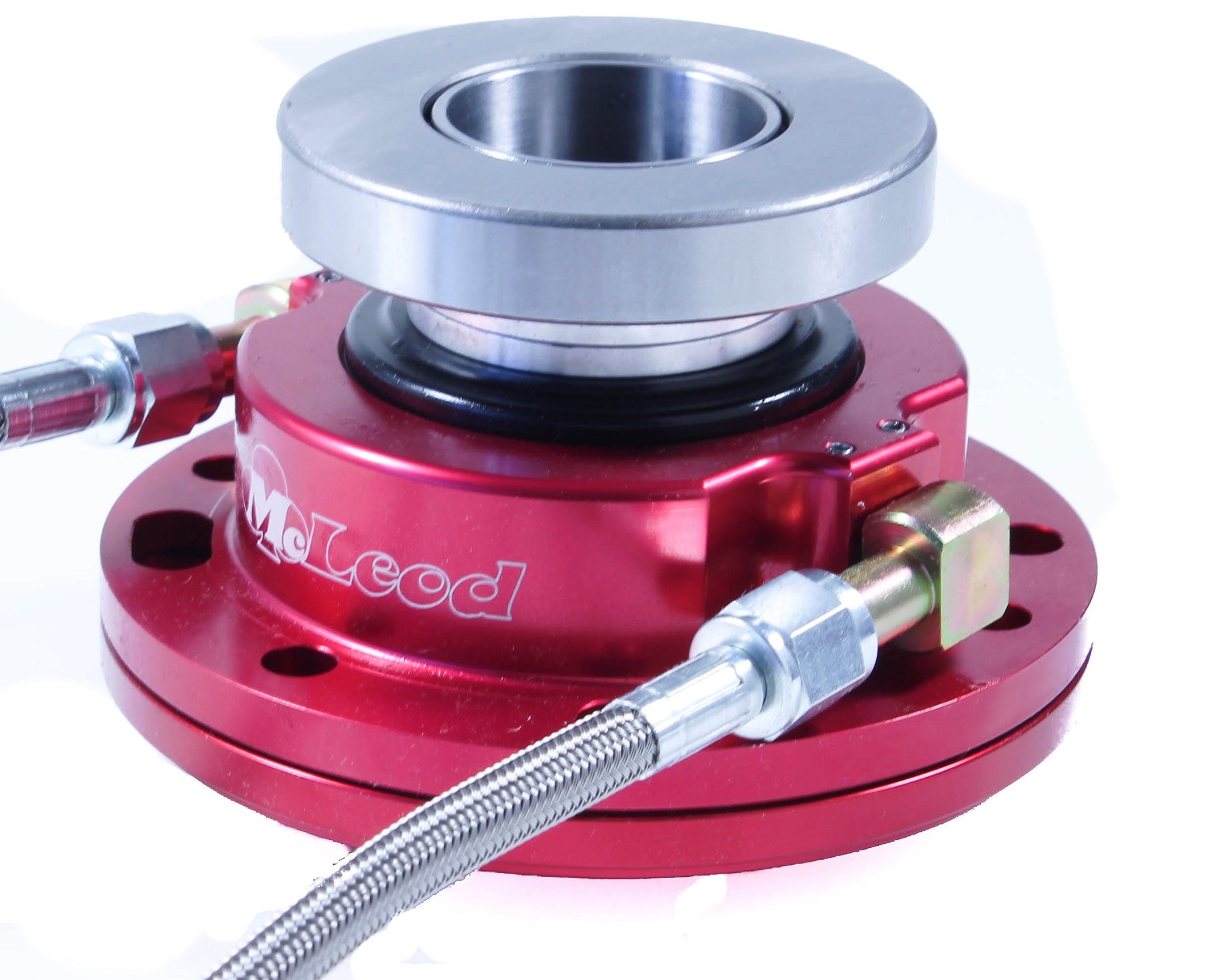

McLeod 1300 Series Hydraulic Throwout Bearings

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Vehicle Specific

• Chevrolet: Corvette 89 - 96 5.7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753893611
• "A" Dimension: 2.31 in. to 2.49 in.
• NOTE 2:: Not Available for delivery until Quarter (1) 2023.
• NOTE:: This is intended for applications where the clutch is a "Push Style" Clutch. NOT the OEM "Pull Style" clutch.
• Spline: 1 1/8" x 26
• Trans Type: ZF 6 Speed Corvette
• Transmission Bearing Register: 4.680"

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.25 inches
• Weight: 5 POUNDS
