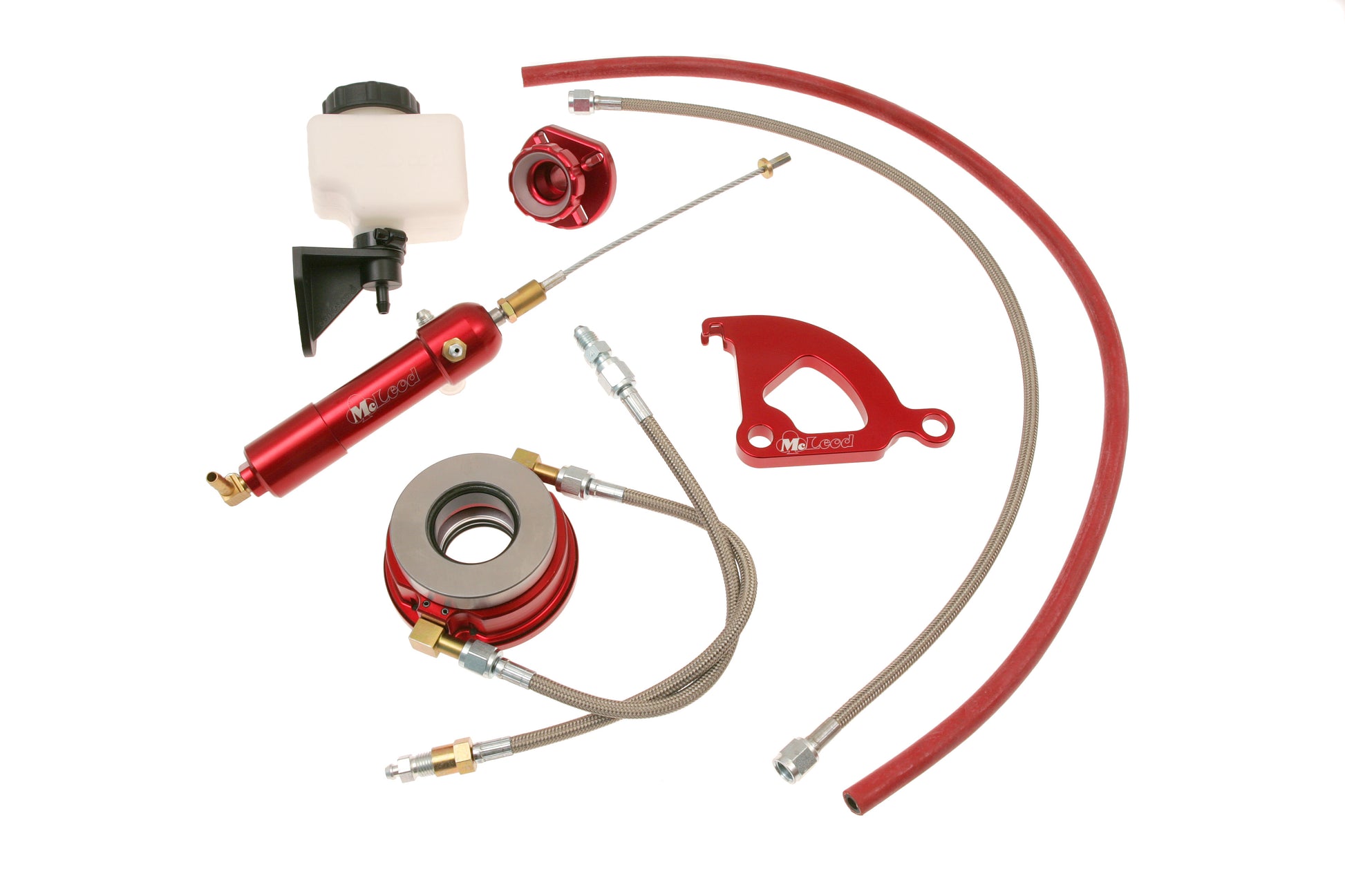

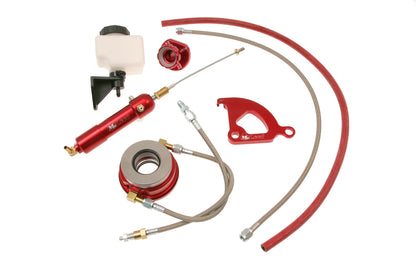

Mcleod Hydraulic Conversion Kits

Hydraulic Conversion Kit -Ideal for Cars That Have Aging Mechanical Linkage or Need Extra Space Due to A Motor Swap or Other Changes. A Mcleod Hydraulic Kit Is Designed with The Very Best Components for Ease of Install and Great Life. An Additional Benefit When Installing This Mcleod Hydraulic Kit Is the Self-Adjusting Bearing Feature. No More Adjusting the Clutch Every 4 — 6 Months. The Hydraulic Kit Will Allow the Bearing to Self-Adjust When the Disc Wears Throughout It Is Life Cycle. Include Master Cylinder and Lines with Swivel Fittings and A Bleeder for Easier Installation. Hydraulic Bearing Must Be Purchased Separately

• • .625" bore master cylinders. • Precision-machined from high-strength aluminum. • Self-Adjusting Bearing Feature. • Easy Installation. • Includes Master Cylinder and Line. • Includes Hydraulic Bearing.

Vehicle Specific

• Ford: Mustang 79 - 93 2.3 L Engine, Ford: Mustang 79 - 79 2.8 L Engine, Ford: Mustang 79 - 82 3.3 L Engine, Ford: Mustang 83 - 95 3.8 L Engine, Ford: Mustang 80 - 82 4.2 L Engine
• Ford: Mustang 79 - 95 5 L Engine, Ford: Mustang 95 - 95 5.8 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753015440
• Adjuster Screw length: 1.100In.
• Application: 1979-2004 Mustang
• Hydraulic Bearing Height: 2.380In.
• Hydraulic Line Type: A.N.-4 S.S. Braided Line
• Make: Ford
• Master Cylinder Bore Size: 0.625
• Master Cylinder Stroke (in.): 2.000
• NOTE:: Will not fit applications with Modular Engines with 4V Heads.
• Transmission 1: T-5
• Transmission 2: Tremec TKO 500/600

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.5 inches
• Weight: 7 POUNDS
