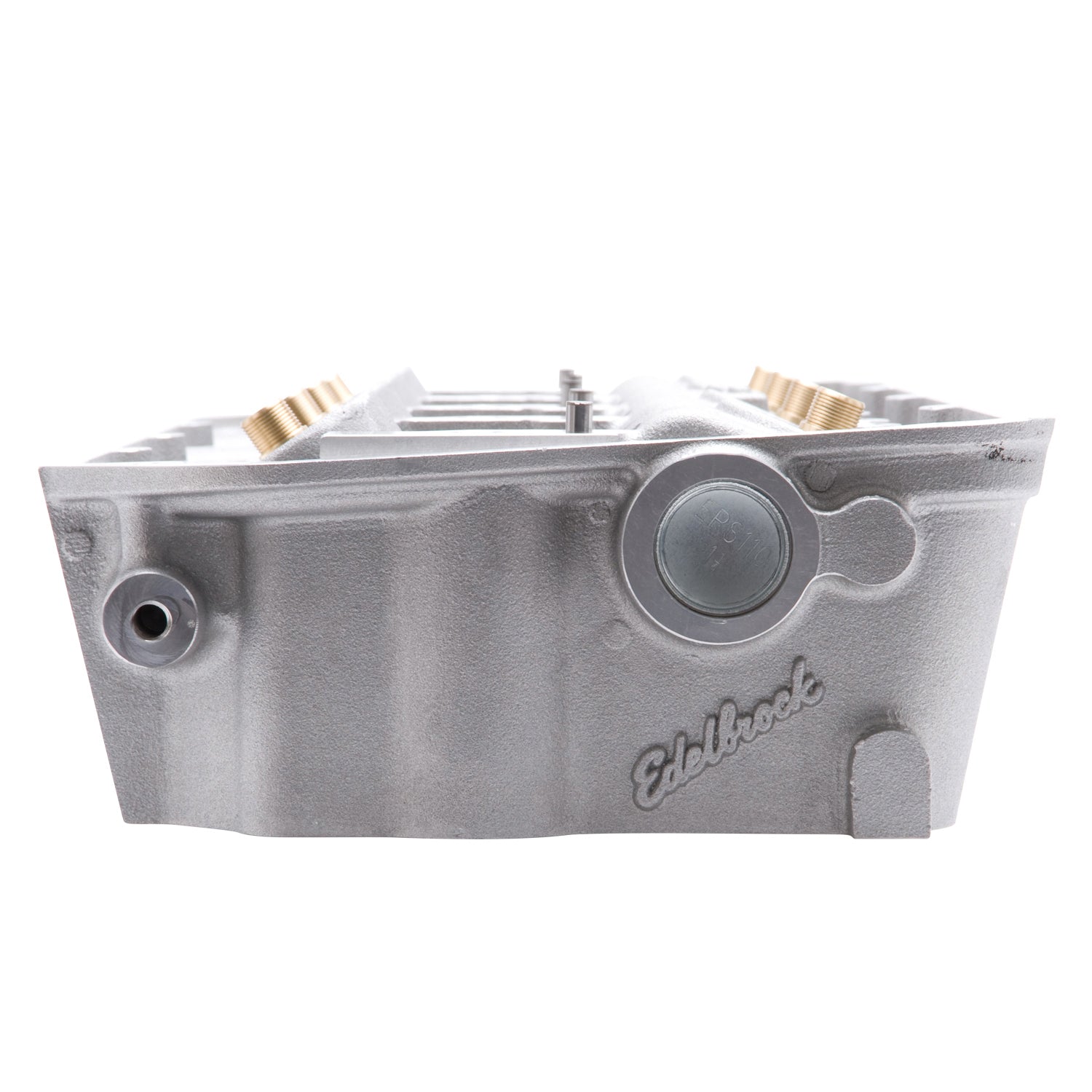

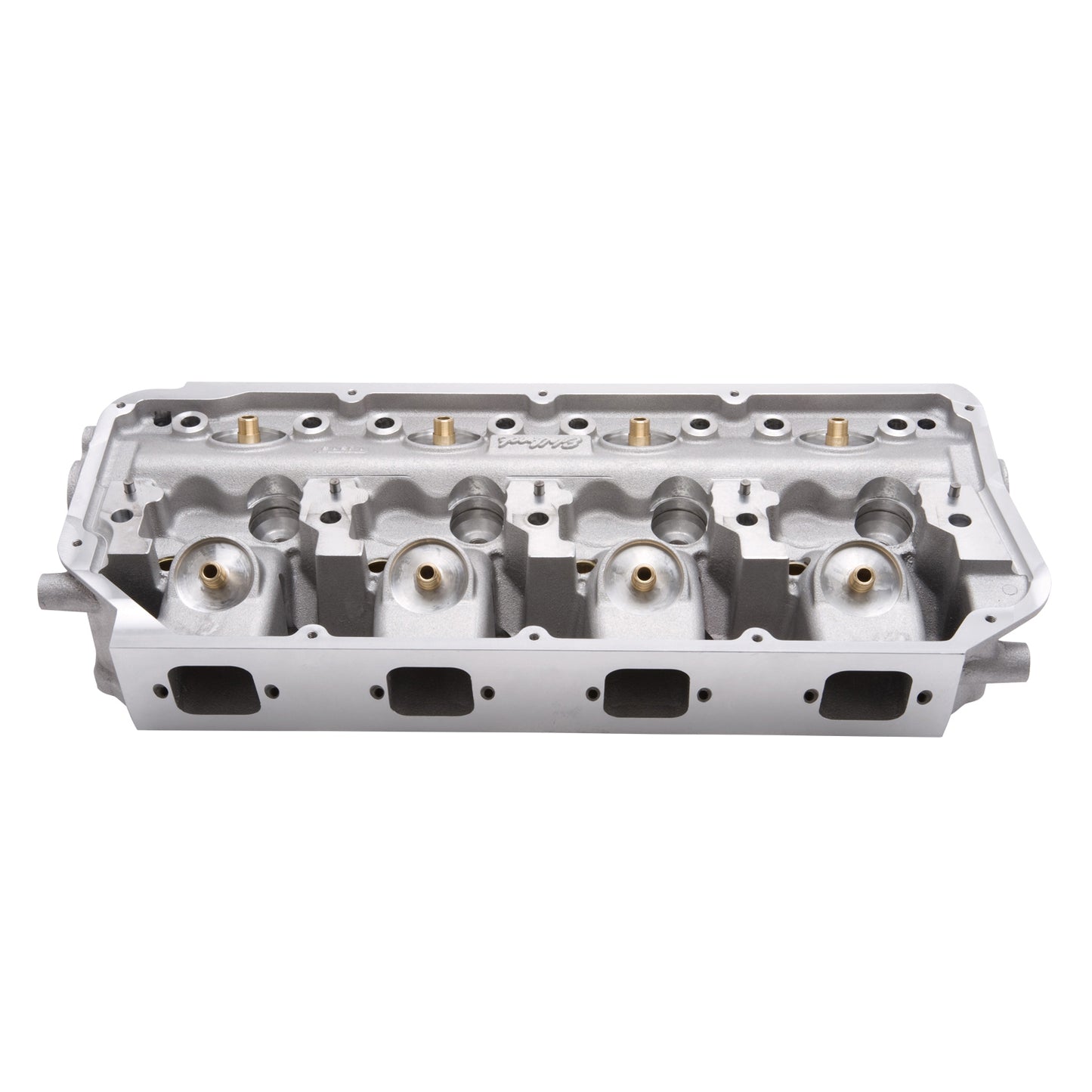

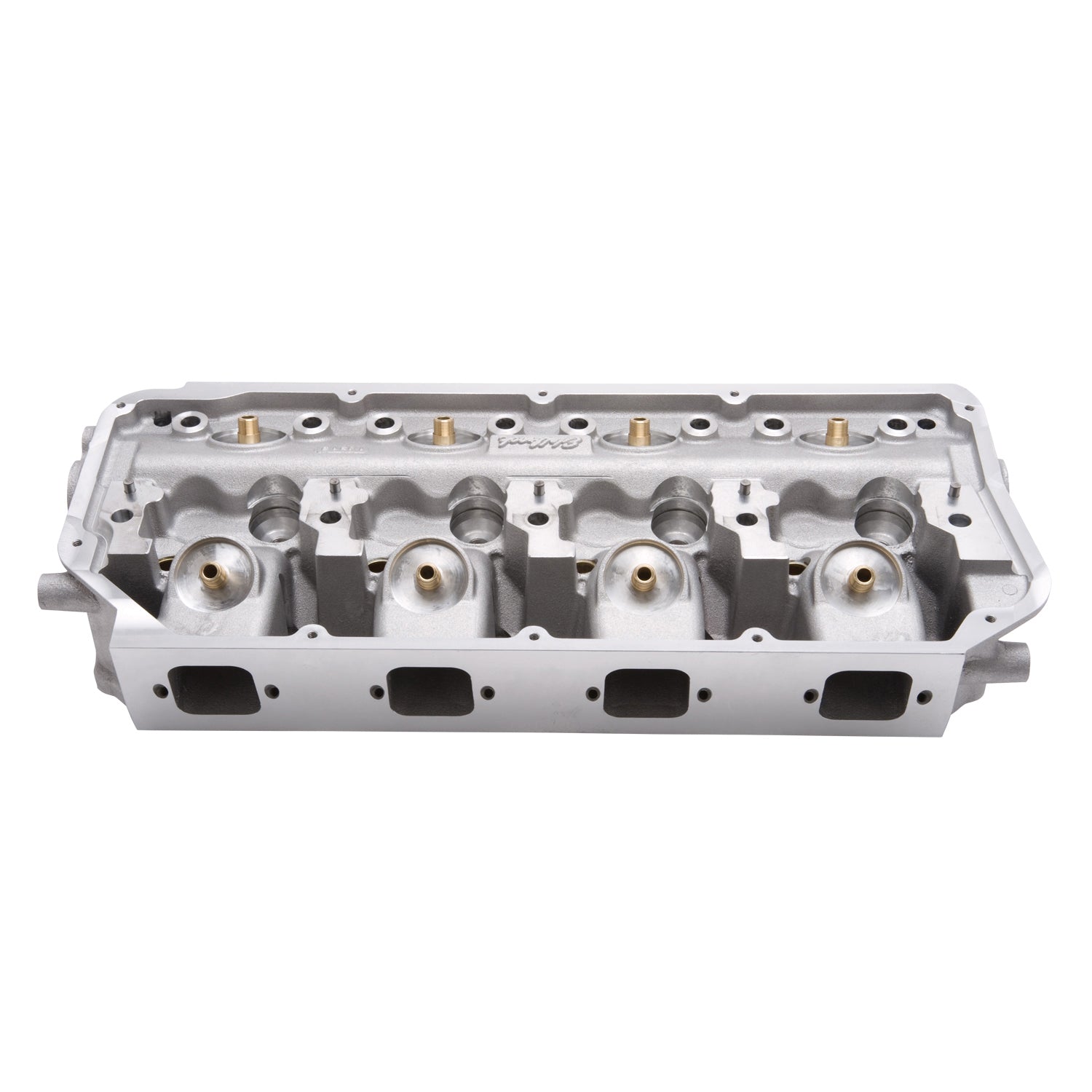

Victor Jr Gen II HEMI Chrysler Cylinder Head Bare

Our new Edelbrock #61169 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. Vehicle Specific

• Chrysler:Big-Block Gen II HEMI:426 (7.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347611690
• Assembled: No
• CNC Ported: Yes
• Combustion Chamber Volume: 170
• Construction Type: Bare
• Cylinder Head Gasket Included: No
• Deck Height: 10.72
• Deck Thickness: 0.625
• EGR Port: No
• Exhaust Port Location: Standard
• Exhaust Runner Volume: 105
• Family: Victor Jr.
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Guide Plates Included: No
• Head Casting Number: 31-6117
• Intake Runner Volume: 245
• Material: Aluminum
• Mounting Hardware Included: No
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: No
• Rocker Arm Studs/Bolts Included: No
• Rocker Arms Included: No
• Seat Angle: Exhaust 45 deg/Intake 45
• Seat Material: Ductile Iron
• Series: Victor Jr.
• Valve Angle: Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
• Valve Cover Gasket Included: No
• Valve Locks Included: No
• Valve Seals Included: No
• Valve Spring Retainers Included: No
• Valve Springs Included: No
• Valves Included: No

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25.875 x 10.75 x 8.5 inches
• Weight: 29.15 POUNDS
