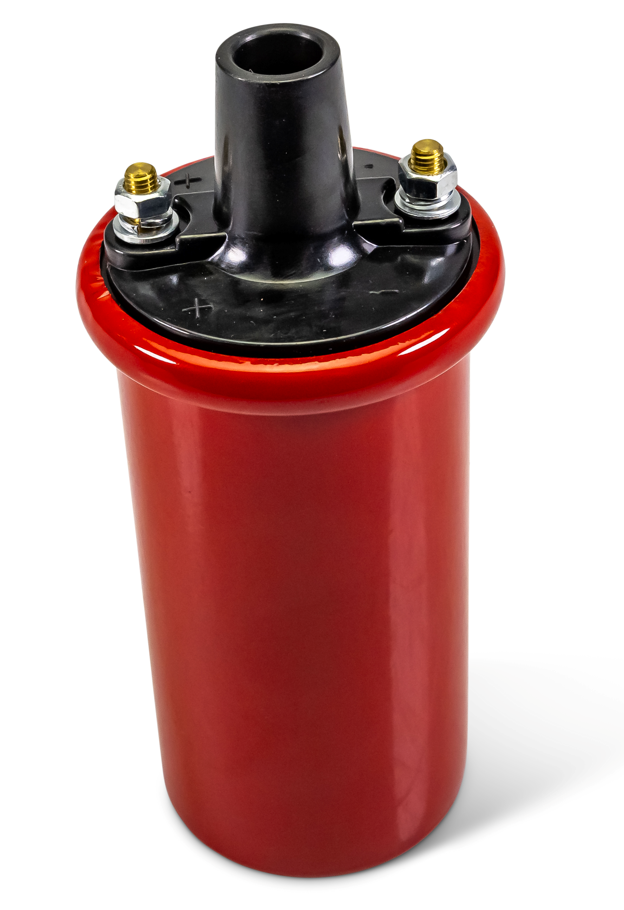

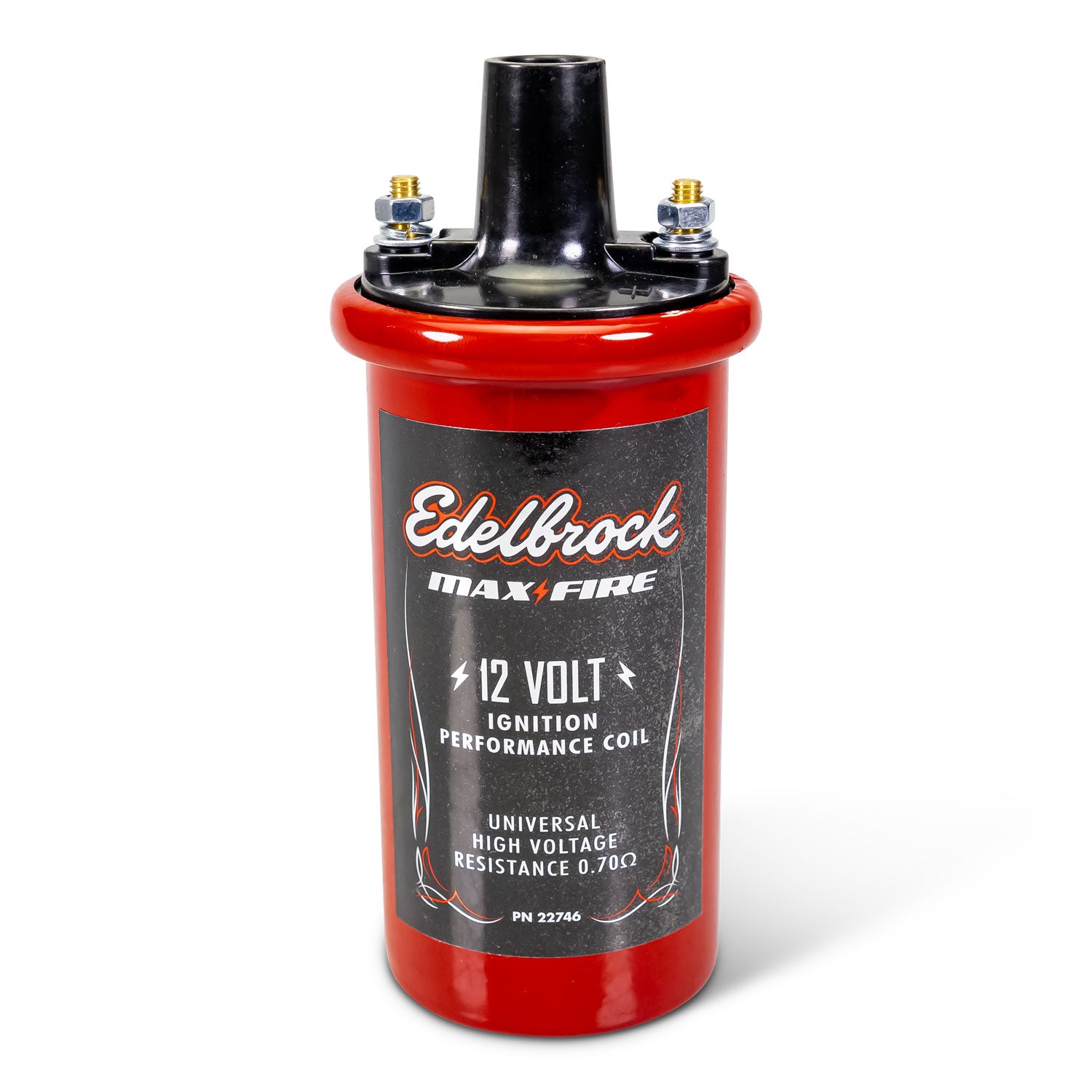

High-output Cannister-style Ignition Coil For Pro-Flo 4 And Aftermarket EFI

Edelbrock Ignition Coil #22746 is a high-output oil-filled cannister-style coil recommended for use with Pro-Flo 4 EFI applications and is also compatible with other aftermarket EFI and ready-to-run distributors. Features include a higher winding ratio for more voltage build-up and higher spark energy when compared to competitor coils. The main difference between the Edelbrock #22746 Coil and other cannister-style coils is the primary resistance of 0.7 ohms compared to 0.4 ohms for standard ignition systems. A primary resistance of 0.7 ohms is the minimum that we recommend for use with Pro-Flo 4 EFI systems.

• Oil-filled cannister design protects coil windings from vibration
• Higher winding ratio for more voltage build up and higher spark energy
• Primary resistance of 0.7 ohms for use with Pro-Flo 4 EFI
• Can be used with other aftermarket EFI

Vehicle Specific

• Universal

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347227464
• Color: Red
• Connector Gender: Female
• Internal Construction Type: Oil-Filled
• Primary Resistance: 0.70
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

• Country of Origin: China
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8 x 3 x 3 inches
• Weight: 1.4 POUNDS
