High-Flow

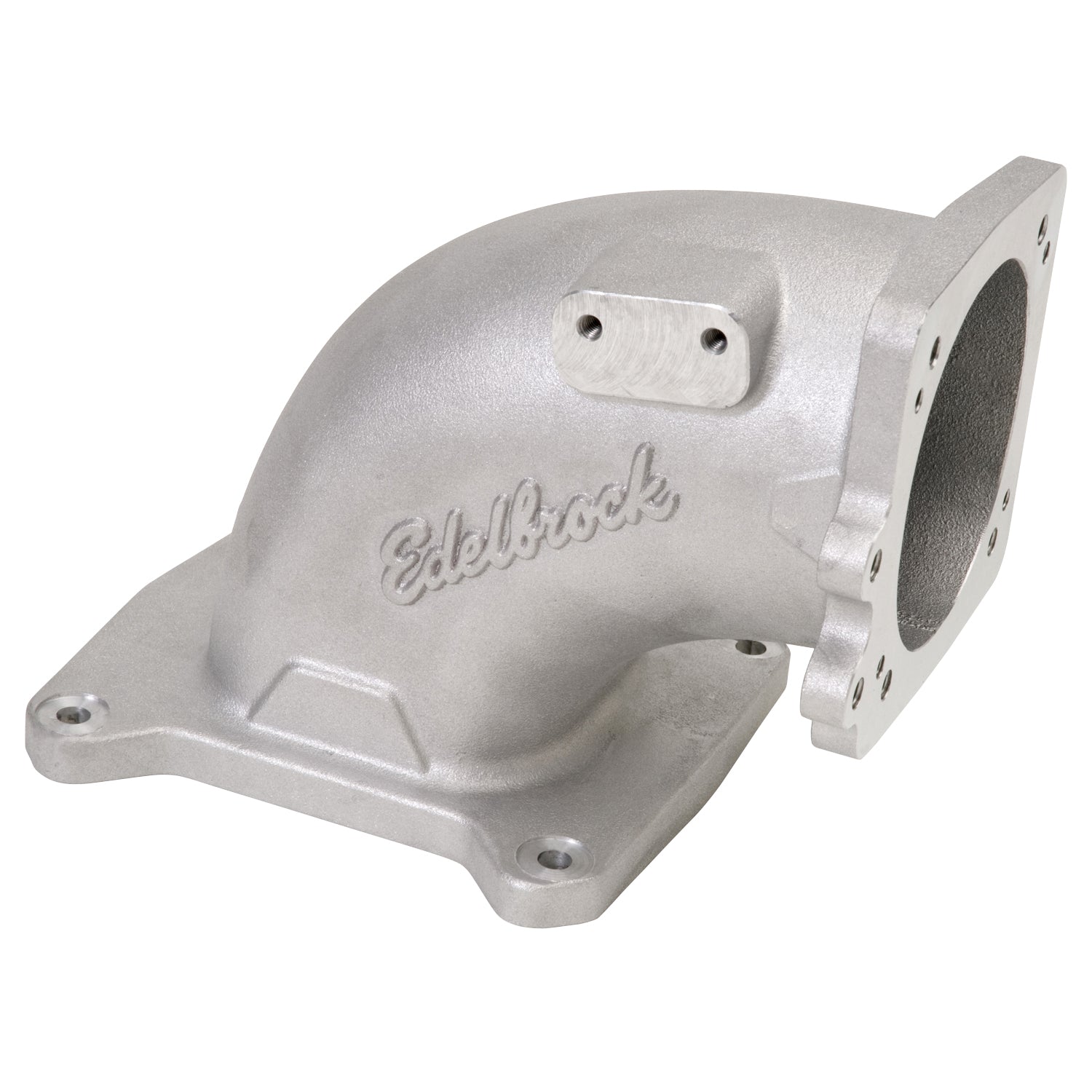

The Edelbrock High-Flow EFI Intake Elbow #3815 is intended for very high-power naturally aspirated EFI applications and turbocharged or centrifugal-supercharged engines making over 1,100 horsepower. This casting is CNC-machined to a 120mm opening and has a 4.250-inch-square throttle body bolt pattern with a base flange bolt pattern of 5.375-inch-square for use with 4500-series intake manifolds. The elbow has a 10-degree downward angle for a total of 100 degrees and can be mounted in a forward, backward or sideways configuration. An internal divider prevents flow from concentrating at the back of the manifold, which is a condition that commonly occurs with other elbows. Overall height of the High-Flow Elbow #3815 is 8.86 inches and it comes with a universal throttle bracket. For smaller 90mm throttle bodies, order High-Flow Elbow #3814. Vehicle Specific

• Universal

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347038152
• Adapter Included: No
• Bore Centerline Height: 6.0
• Finish: Satin
• Flange Angle: 100
• Gasket Or Seal Included: Yes
• Length: 8.0
• Material: Aluminum
• Overall Height: 8.86
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Size: 120
• Type: High Flow

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.25 x 9 x 8.25 inches
• Weight: 8.7 POUNDS
