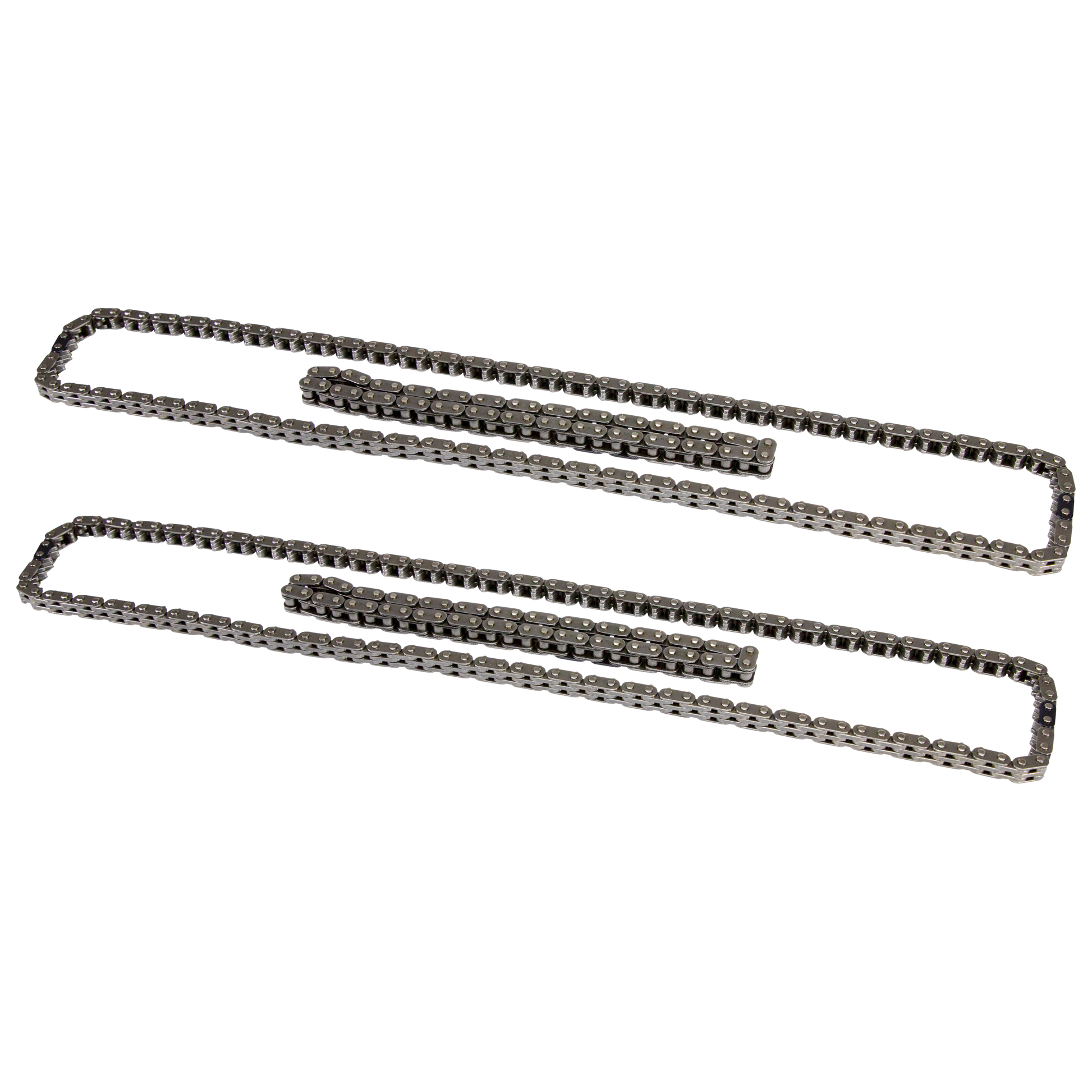

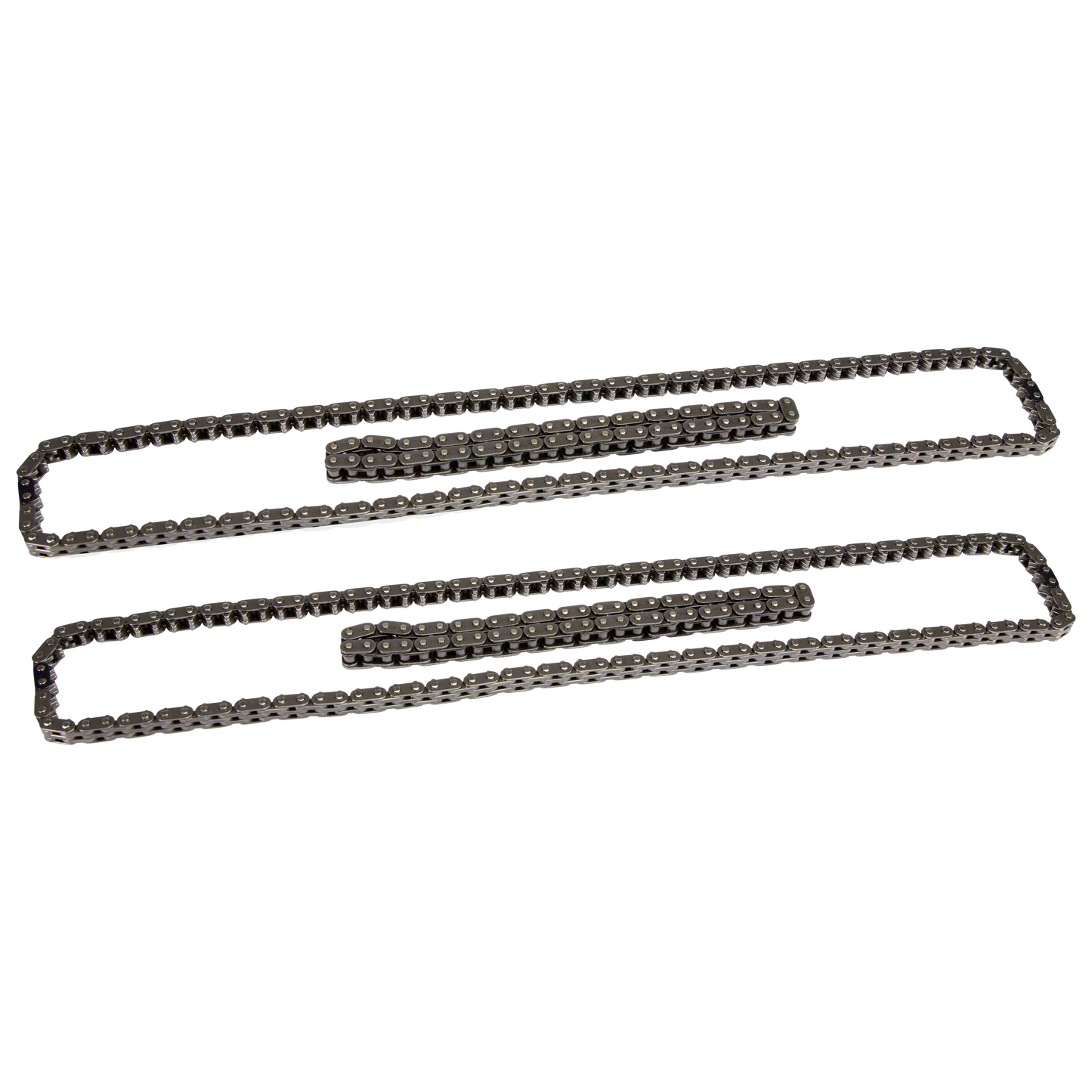

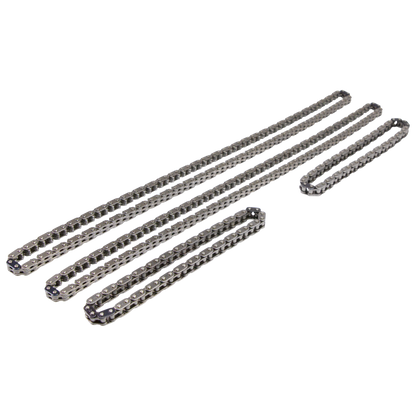

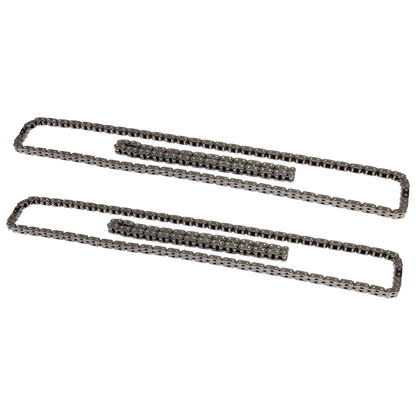

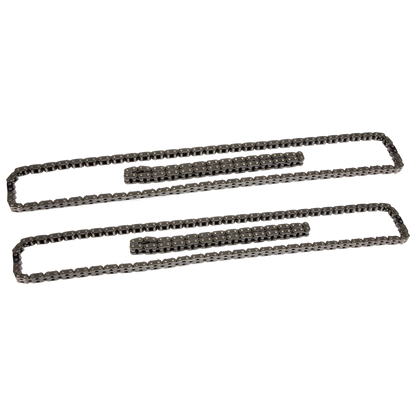

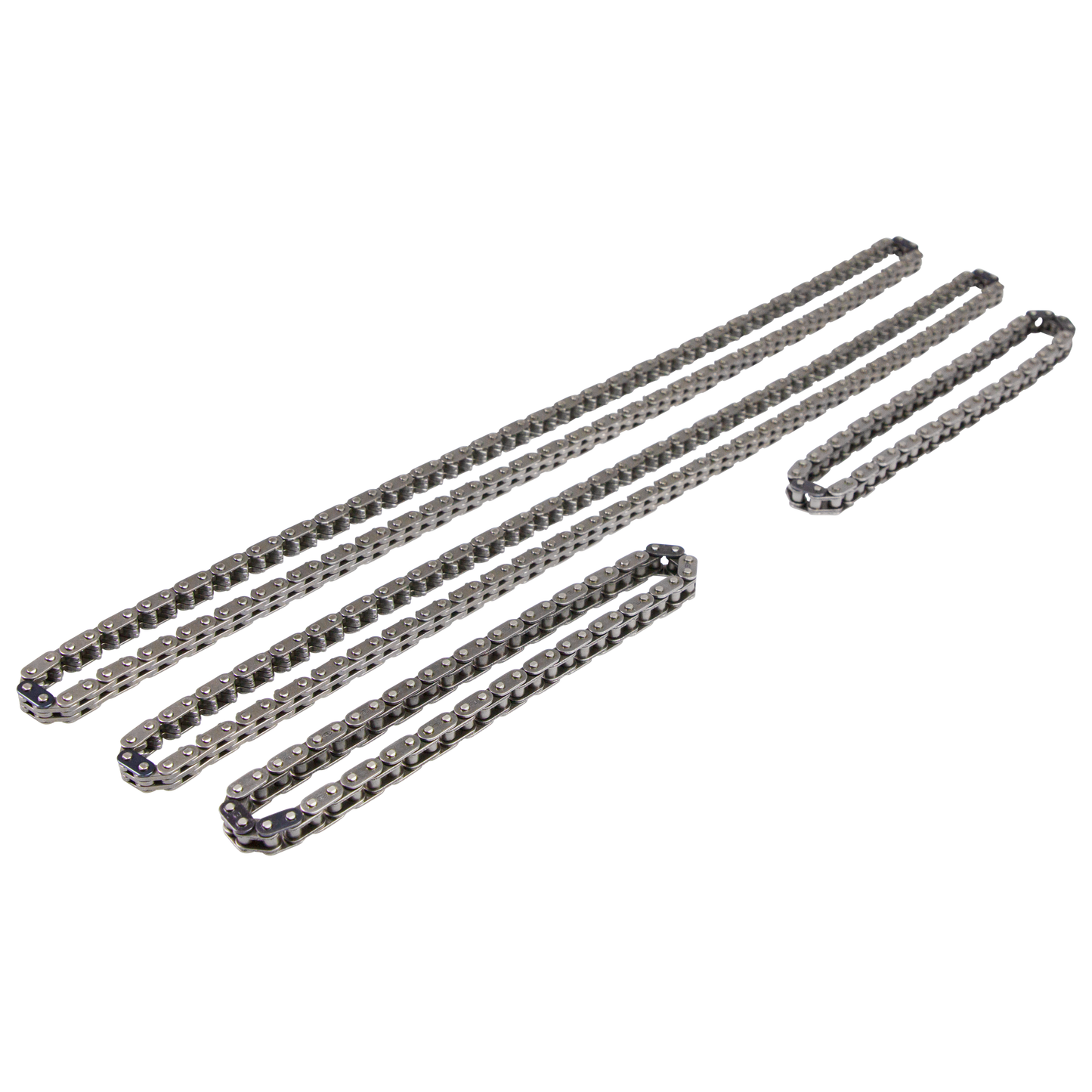

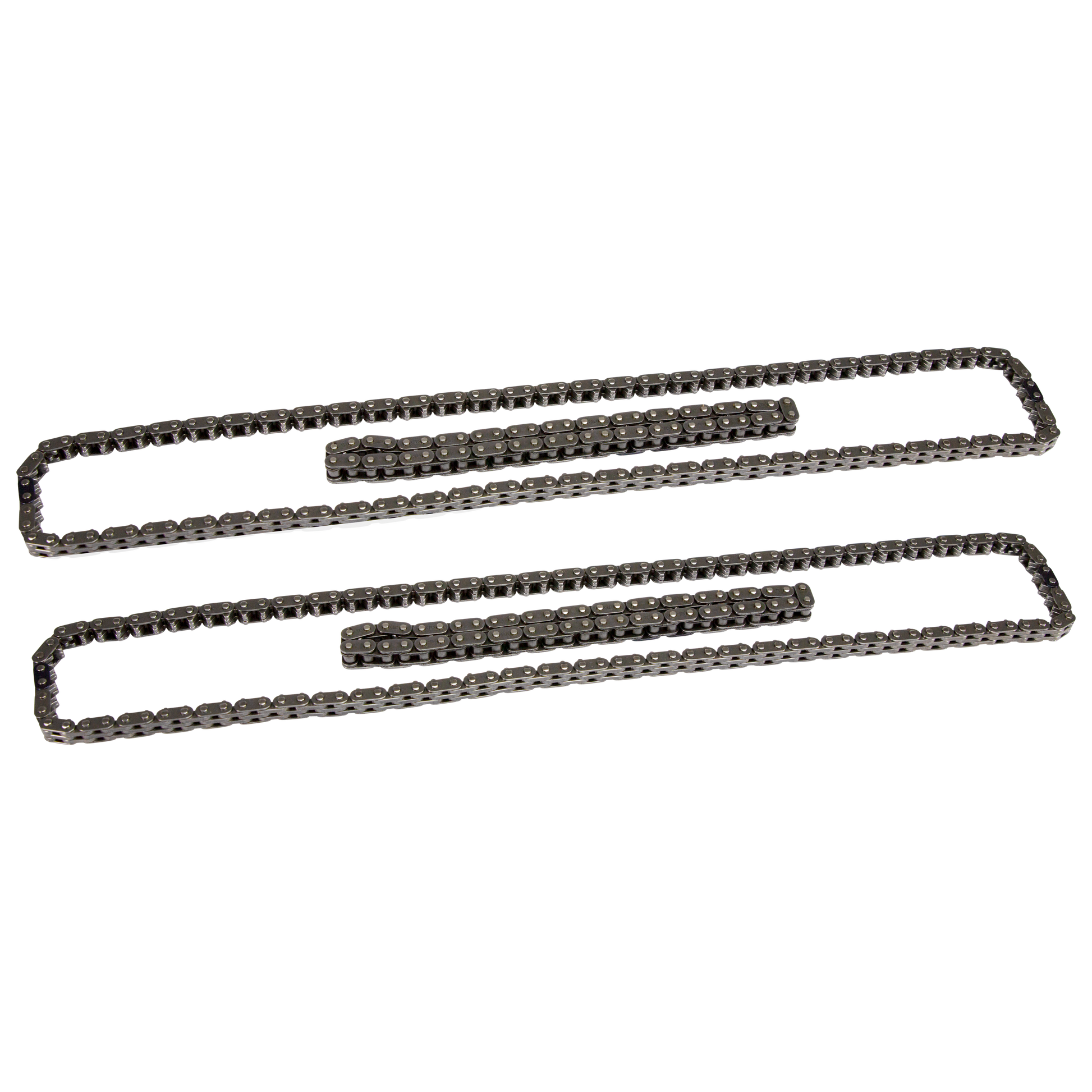

Hi-Tech Severe Duty Timing Chain Set For 2015-2018 Ford 5.0 Coyote

The COMP Cams Hi-Tech Timing Chain Sets for Ford Coyote engines are designed to withstand the stresses of upgraded, modified applications and are the perfect choice when replacing fatigued, worn out factory chains. Any time the cams are being upgraded in a Ford Coyote engine, or it is being built for high RPM racing use, replacing the tired, stock timing chains is a must. The new COMP Cams Hi-Tech Ford Coyote Timing Chain Sets feature heavy-duty secondary chains with 15% thicker plates than the factory chains, which helps to prevent common secondary chain failure. These kits also include premium quality primary chains that are ideal for any high performance or racing application. Whether simply upgrading camshafts or doing a full race engine build, these timing chain sets provide the durability needed in aggressive racing environments. Sets include two primary and two secondary chains. Vehicle Specific

• 2015-2018 Ford 5.0 Coyote

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584405450
• Cam Bolt Number: N/A
• Camshaft Sprocket Material: No sprocket included
• Chain Width: 0.347 primary, 0.430 secondary
• Clears Factory Timing Cover?: Yes
• Crankshaft Sprocket Material: No sprocket included
• Engine Family: Ford Coyote
• Includes Crank Position Trigger Wheel: No
• Includes Crankshaft Sprocket: No
• Includes Dowel Pin and Fasteners: No
• Includes Secondary Timing Chain Tensioners: No
• Includes Secondary Timing Chains: Yes
• Includes Tensioner Arms: No
• Includes Timing Chain Guides: No
• Includes Timing Chain Tensioners: No
• Keyway Adjustable: N/A
• Maximum Advance: N/A
• Maximum Advance At Camshaft: N/A
• Maximum Retard: N/A
• Maximum Retard At Camshaft: N/A
• Number of Crankshaft Keyways: N/A
• OE Number: M-6004-A504
• Pole Count: N/A
• Reluctor Count: No reluctor included
• Replacement Performance Chain Part Number: N/A
• Thrust Bearing Included?: No
• Timing Chain Type: Inverted tooth / roller
• Timing Set Series: Hi-Tech

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 6.5 x 2.75 inches
• Weight: 4 POUNDS
