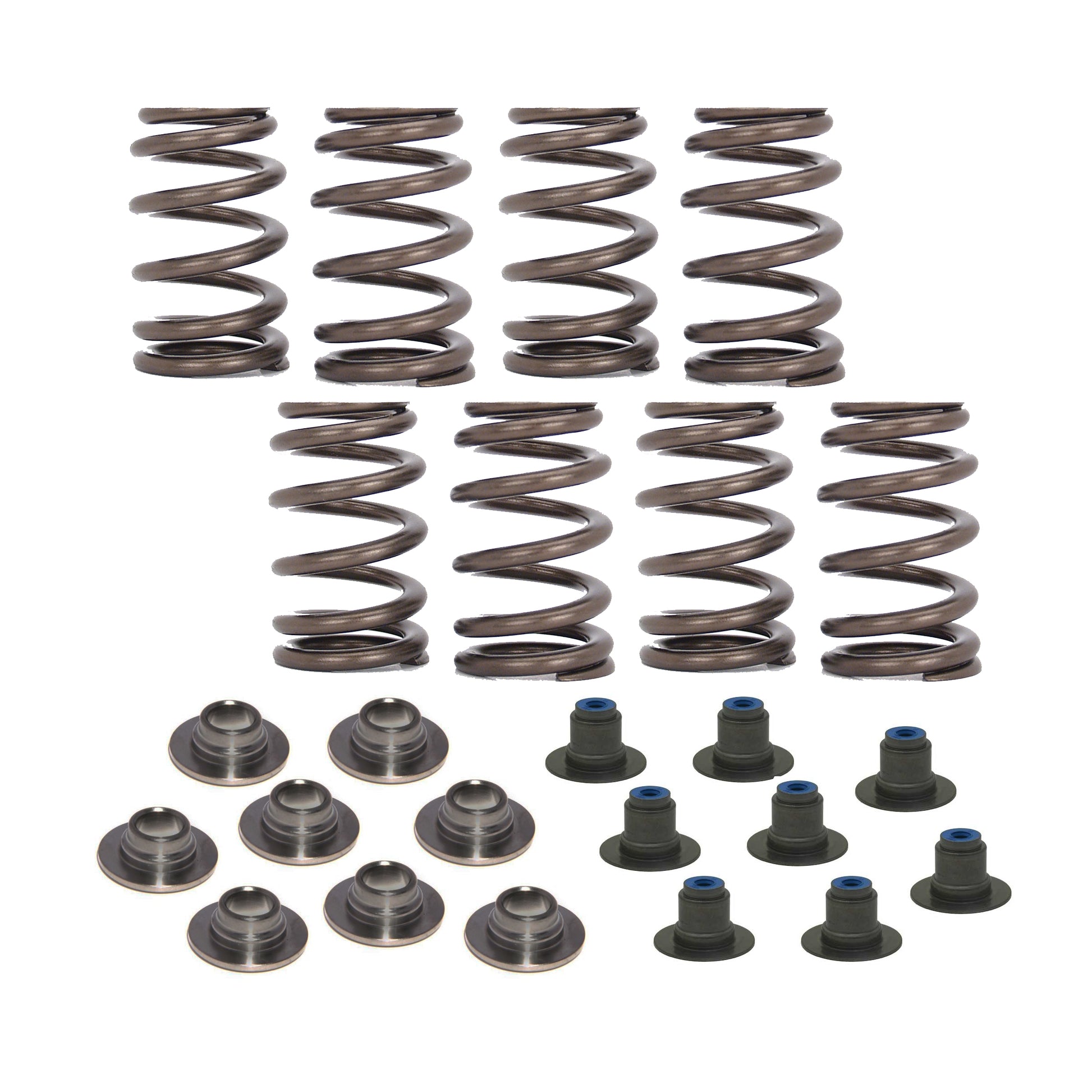

Harley Milwaukee 8 Beehive Spring Kit W/ Tool Steel Retainers; .530" Max Lift

The M8 Spring and Retainer kit features our Beehive springs for a .530" max lift and increased valvetrain stability. The kit includes our Tool Steel retainers for increased strength and light weight.

• The Harley M8 spring kit increases maximum valve lift to 0.540".
• Beehive valve spring design increases valvetrain stability
• Lightweight tool steel retainers reduce valvetrain weight while increasing rigidity

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584384137
• Amazon ASIN: N/A
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• Coil Bind Height: 0.900
• Installed Height: 1.500
• Machine Work Required?: No
• Maximum Valve Lift: 0.530
• Open Pressure: 251
• Seat Pressure: 80
• Spring Bottom Inner Diameter: 0.742
• Spring Bottom Outer Diameter: 1.105
• Spring Rate: 324
• Spring Top Inner Diameter: 0.580
• Spring Top Outer Diameter: 0.943

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 4.5 x 4.75 x 4.25 inches
• Weight: 2 POUNDS
