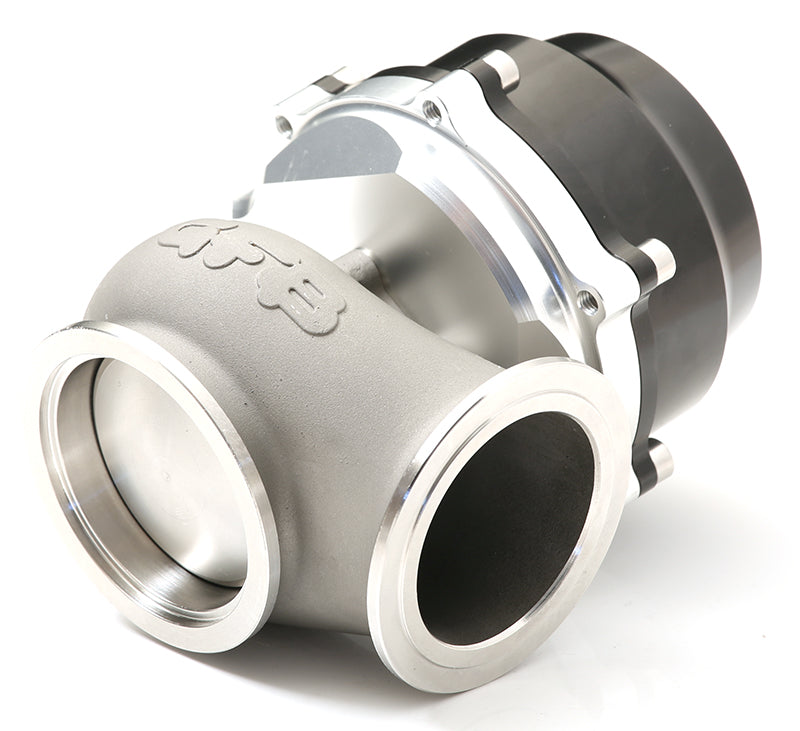

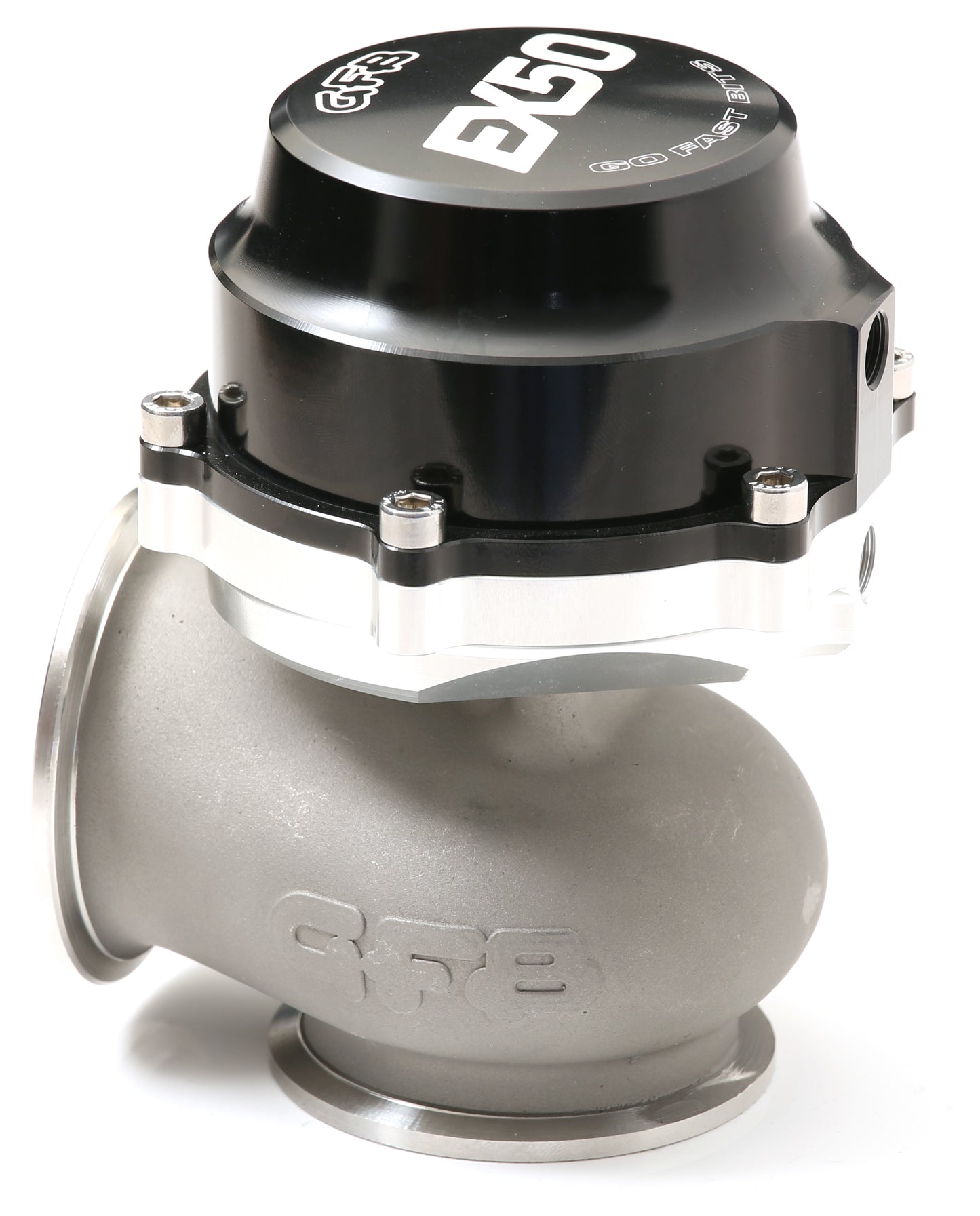

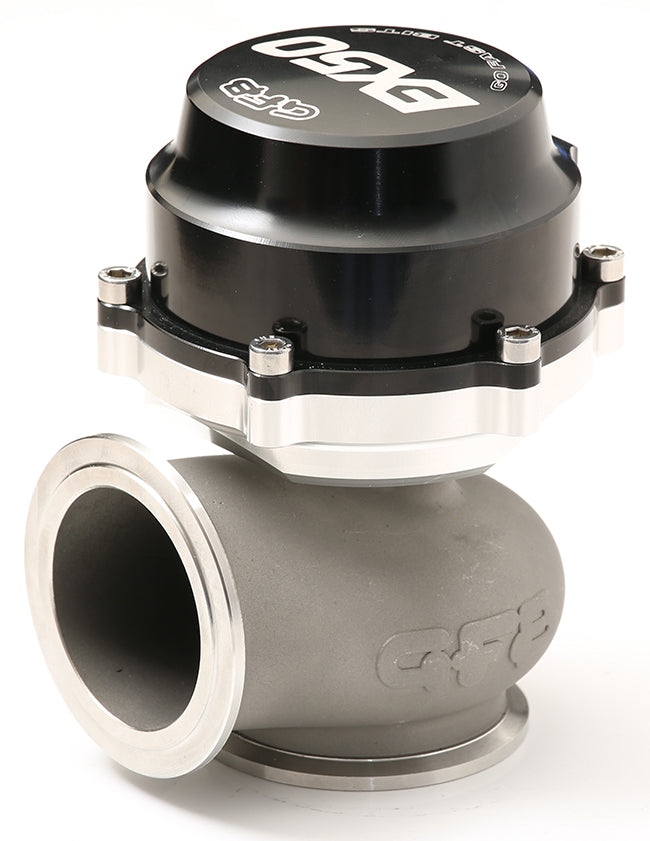

GFB EX 50mm Wastegate:

The 7001 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 50MM VALVE, ? V-BAND INLET AND OUTLET, ? 133MM OVERALL HEIGHT, ? SUPPLIED WITH 13PSI (OUTER) SPRING, ? ADDITIONAL SPRINGS AVAILABLE ARE 7PSI (INNER) AND 9PSI (MIDDLE), ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 7, 9, 13, 16, 20, 22 AND 29PSI,

• Most compact wastegate range on the market. Body, valve, seat and all mounting hardware is CNC machined from high-temp stainless steel. Actuator housing CNC machine from billet 6061-T6 aluminuim. Manufactured In Australia under ISO 9001

Attributes:

• Brand Name: GFB Go Fast Bits
• GTIN: 09328022007007
• Add-On: 7107
• Grade Type: Performance
• Housing Color: Silver
• Housing Material: Stainless Steel

Extended Information:

• Country of Origin: AU
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 18 centimeters
• Weight: 2.1 KILOGRAMS
