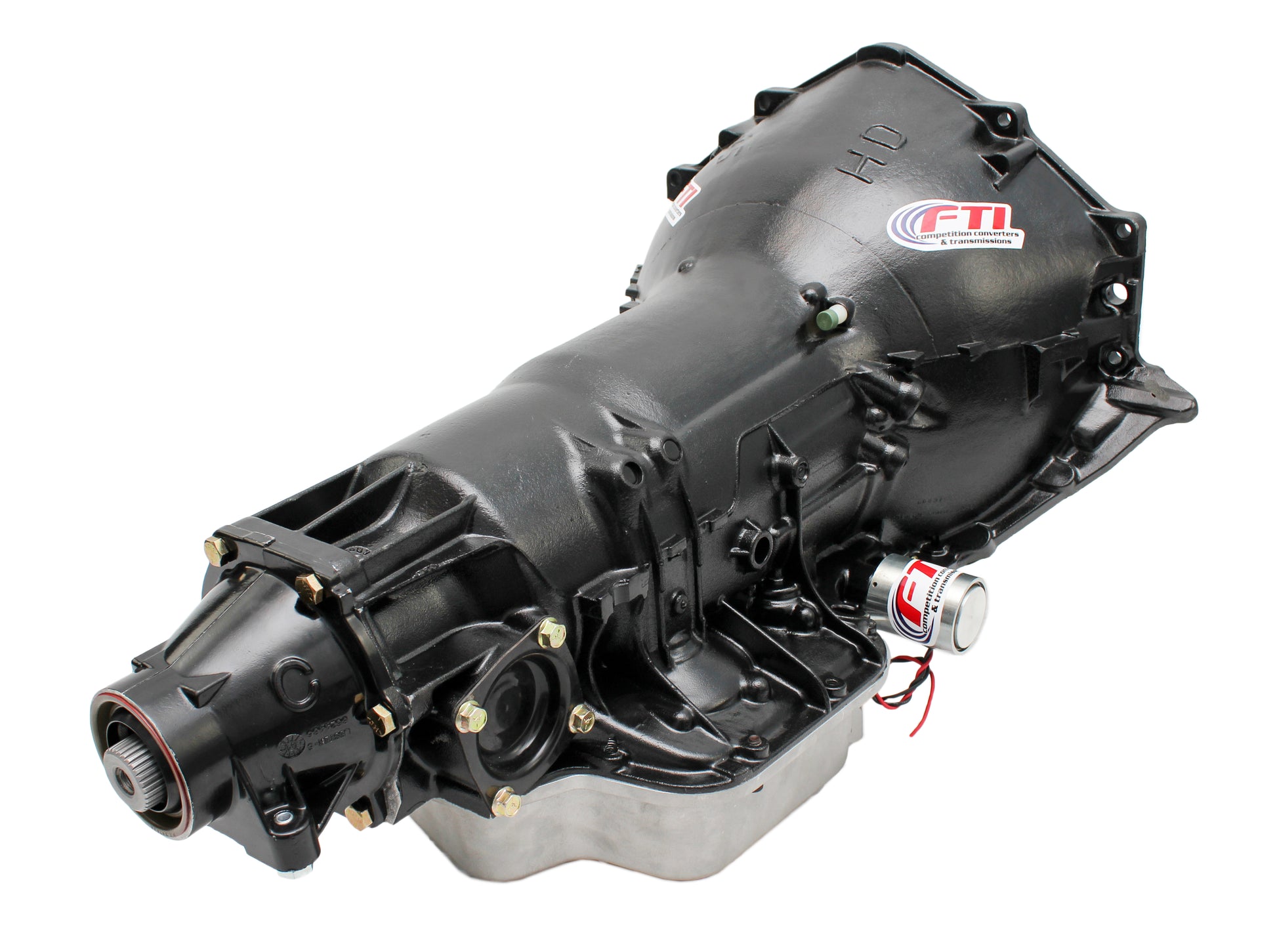

FTI Performance TH400 Level 4 Transmissions

FTI Performance TH400 Level 4 transmissions feature a full manual valve body equipped with a transbrake for the ultimate drag racer. They make an excellent choice for weekend bracket racers, high-powered street cars, and mud trucks. The transmissions have: a 34-element intermediate sprag, performance clutches and steels, high-flow pump, race-prepped stock case, deep aluminum pan, billet forward clutch hub, heavy-duty intermediate retainer, and a 4-clutch intermediate pack.

Attributes:

• Brand Name: FTI Performance
• GTIN: 00887753825568
• Bellhousing Bolt Pattern Manufacturer: Chevrolet
• Dipstick Included: Yes
• First Gear Ratio (Automatic Transmissions): 2.48:1
• Flexplate Shield Built In: No
• Fluid Fill Location: Case
• Input Shaft Material: Hardened Steel
• Input Spline Quantity: 30
• Number of Gears: 3
• Quantity: Sold individually.
• Remanufactured: Yes
• Torque Converter Included: No
• Trans-Brake Included: Yes
• Transmission Advertised Horsepower Rating: 900
• Transmission Case Finish: Black
• Transmission Case Material: Aluminum
• Transmission Case Style: OEM
• Transmission Pan Finish: Natural
• Transmission Pan Material: Aluminum
• Transmission Pan Style: Deep
• Transmission Shield Built In: No
• Valve Body Style: Full Manual
• Yoke Style: Slip-on

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 40 x 30 inches
• Weight: 200 POUNDS
