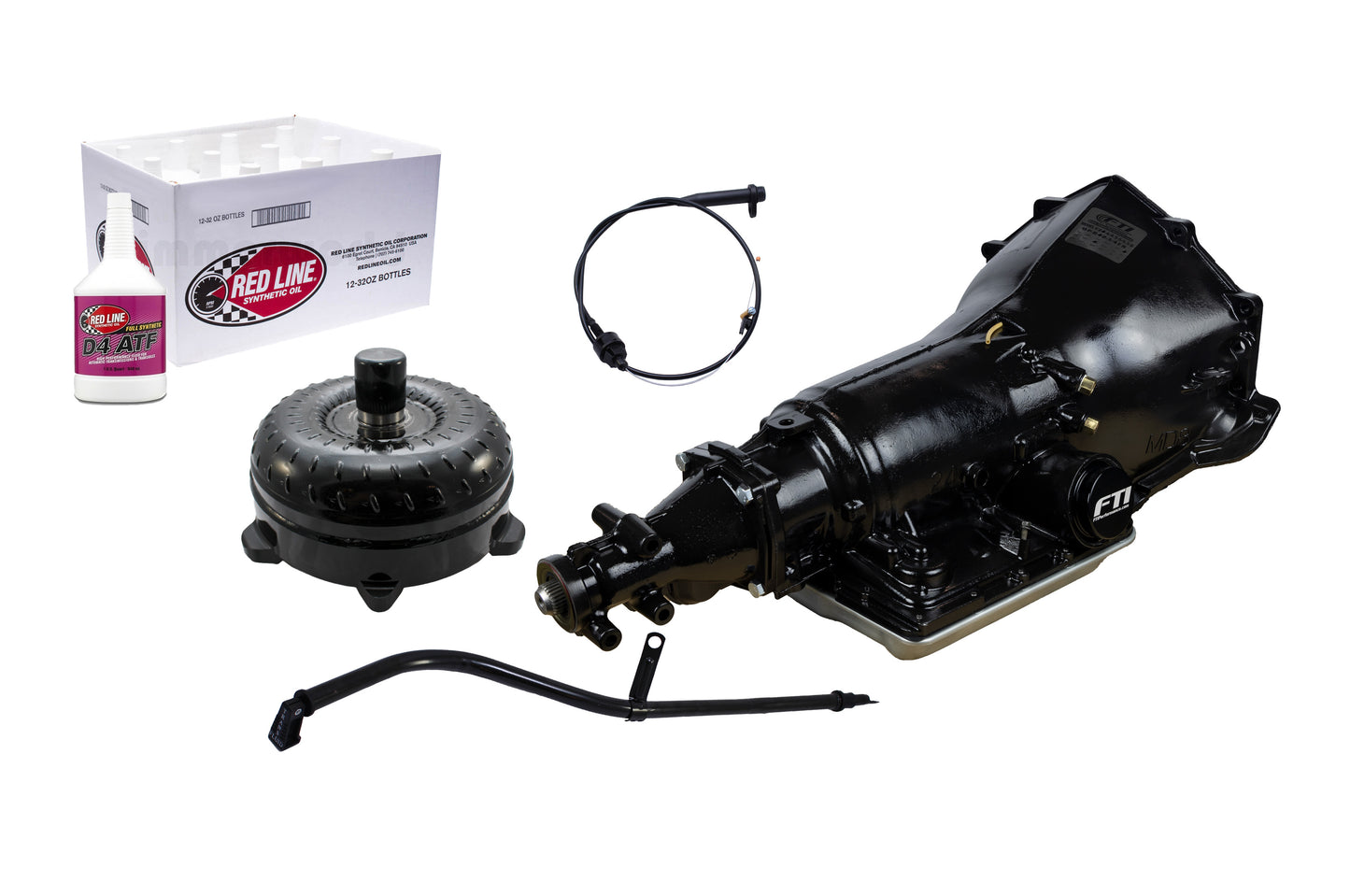

FTI Performance 700R4 Level 3 Transmission Kits

FTI Performance 700R4 level 3 transmission kits feature FTI's performance calibrated valvebody and billet servo designed with the serious hot rod enthusiast in mind. They make an excellent choice for street cars making up to 600HP that need a complete kit including a new billet torque converter and a case of FTI performance ATF. The transmissions have: an HD Borg Warner sprag, high capacity clutch packs, 30 spline input shaft, pre-wired 4th gear lock-up, performance wide band, hardened sun shell, wide HD low roller clutch, very firm shifts, and each transmission comes with a new locking filler tube, dipstick and tv cable.

Attributes:

• Brand Name: FTI Performance
• GTIN: 00887753817532
• Bellhousing Bolt Pattern Manufacturer: Chevrolet
• Dipstick Included: Yes
• First Gear Ratio (Automatic Transmissions): 3.06:1
• Flexplate Shield Built In: No
• Fluid Fill Location: Case
• Input Shaft Material: Factory
• Input Spline Quantity: 30
• Note: Street Rod Retro Fit AND Most 1986-1994 Full Size Chevy Trucks
• Number of Gears: 4
• Quantity: Sold as a kit.
• Remanufactured: Yes
• Torque Converter Included: Yes
• Trans-Brake Included: No
• Transmission Advertised Horsepower Rating: 600
• Transmission Case Finish: Black
• Transmission Case Material: Aluminum
• Transmission Case Style: OEM
• Transmission Pan Finish: Natural
• Transmission Pan Material: Steel
• Transmission Pan Style: Factory
• Transmission Shield Built In: No
• Valve Body Style: Automatic
• Yoke Style: Bushing

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 40 x 30 inches
• Weight: 250 POUNDS
