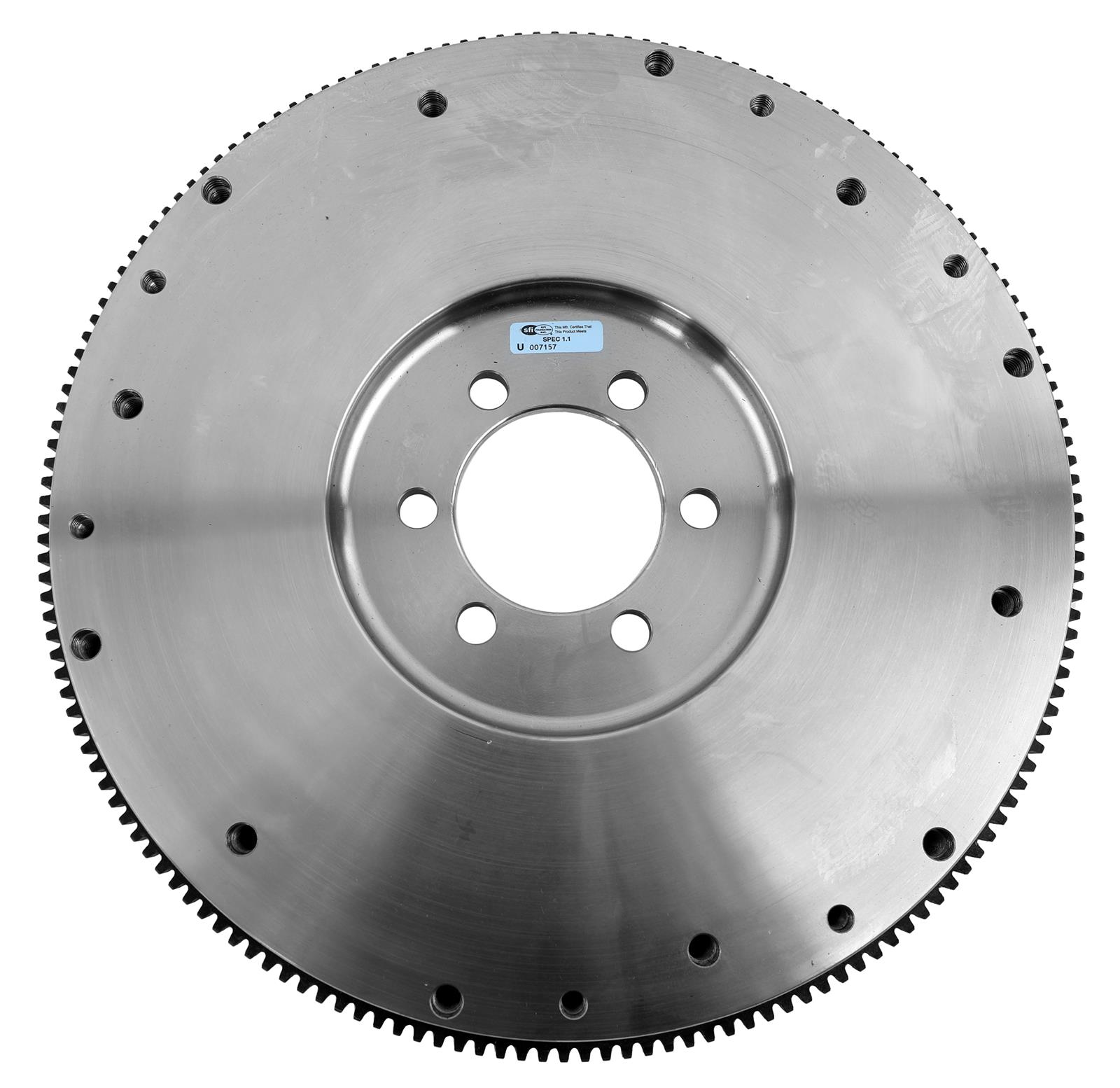

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Pontiac: Bonneville 61 - 64 6.4 L Engine, Pontiac: Bonneville 67 - 74 6.6 L Engine, Pontiac: Bonneville 63 - 66 6.9 L Engine, Pontiac: Bonneville 67 - 69 7 L Engine
• Pontiac: Bonneville 70 - 76 7.5 L Engine, Pontiac: Catalina 61 - 64 6.4 L Engine, Pontiac: Catalina 67 - 74 6.6 L Engine, Pontiac: Catalina 61 - 66 6.9 L Engine, Pontiac: Catalina 67 - 69 7 L Engine
• Pontiac: Catalina 70 - 76 7.5 L Engine, Pontiac: Executive 67 - 70 6.6 L Engine, Pontiac: Executive 67 - 69 7 L Engine, Pontiac: Executive 70 - 70 7.5 L Engine, Pontiac: Firebird 67 - 67 5.3 L Engine
• Pontiac: Firebird 67 - 74 6.6 L Engine, Pontiac: Firebird 71 - 76 7.5 L Engine, Pontiac: GTO 64 - 64 6.4 L Engine, Pontiac: GTO 67 - 73 6.6 L Engine, Pontiac: GTO 70 - 73 7.5 L Engine
• Pontiac: Grand Am 73 - 74 6.6 L Engine, Pontiac: Grand Am 73 - 75 7.5 L Engine, Pontiac: Grand LeMans 75 - 76 7.5 L Engine, Pontiac: Grand Prix 62 - 64 6.4 L Engine
• Pontiac: Grand Prix 67 - 74 6.6 L Engine, Pontiac: Grand Prix 63 - 66 6.9 L Engine, Pontiac: Grand Prix 67 - 69 7 L Engine, Pontiac: Grand Prix 70 - 76 7.5 L Engine
• Pontiac: Grand Safari 71 - 74 6.6 L Engine, Pontiac: Grand Safari 71 - 76 7.5 L Engine, Pontiac: Grandville 72 - 74 6.6 L Engine, Pontiac: Grandville 71 - 75 7.5 L Engine
• Pontiac: LeMans 63 - 67 5.3 L Engine, Pontiac: LeMans 68 - 74 6.6 L Engine, Pontiac: LeMans 70 - 76 7.5 L Engine, Pontiac: Star Chief 61 - 64 6.4 L Engine, Pontiac: Star Chief 63 - 66 6.9 L Engine
• Pontiac: Tempest 63 - 67 5.3 L Engine, Pontiac: Tempest 61 - 61 6.4 L Engine, Pontiac: Tempest 68 - 70 6.6 L Engine, Pontiac: Ventura 61 - 61 6.4 L Engine, Pontiac: Ventura 61 - 61 6.9 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753011787
• Counter Weight Kit Included: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 10.000/10.500/11.000/12.000 in.
• Engine: 1964-1985 Pontiac 326 thru 455
• Engine Balance: Internal/External
• Flywheel Material: Billet steel
• Make: Pontiac
• Marine Use: No
• Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Diaphragm
• Quantity: Sold individually.
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 166-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 POUNDS
