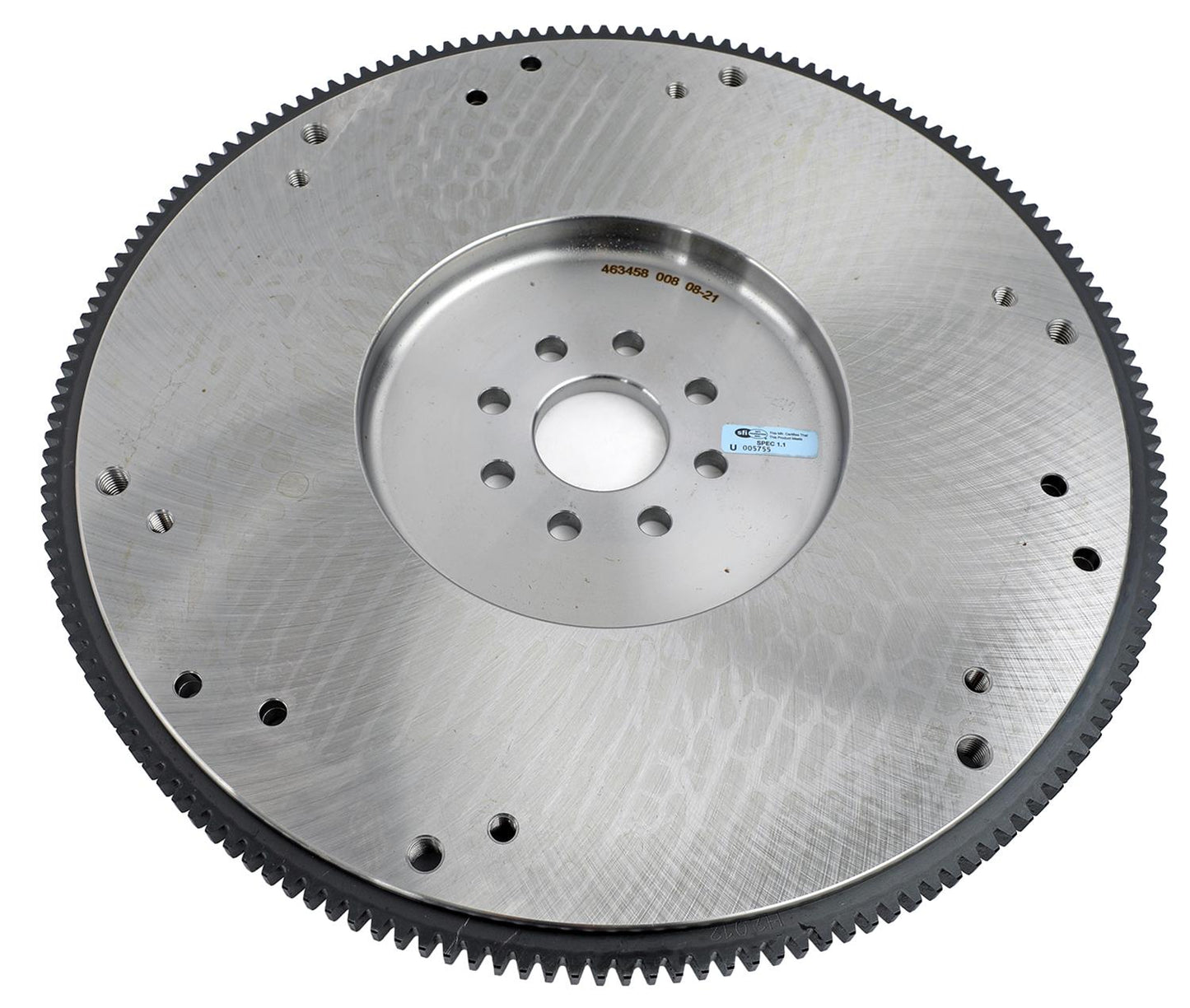

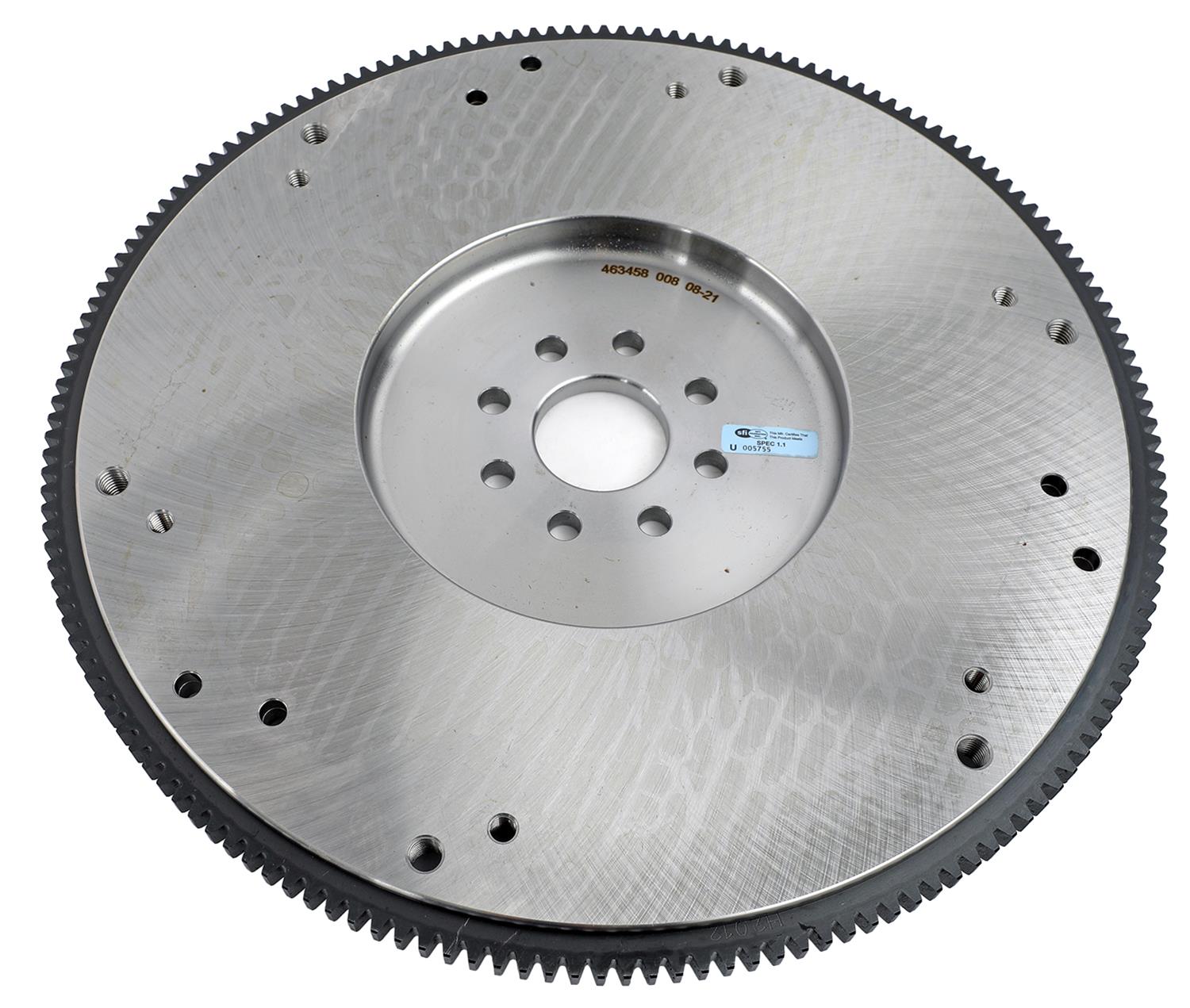

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Ford: Mustang 10 - 12 5.4 L Engine, Ford: Mustang 13 - 14 5.8 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753012128
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 9.688
• Engine: 2010-2014 Ford Mustang GT500 5.4L/5.8L 8 bolt crank
• Engine Balance: Internal
• Flywheel Material: Billet steel
• Make: Ford
• Marine Use: No
• Notes: This flywheel is made specifically for the McLeod RST/RXT and will not fit a conventional style clutch. Please call McLeod Tech for more details at 714-630-2764
• Pressure Plate Style: Diaphragm
• Quantity: Sold individually.
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 164-tooth
• SFI 1.1 Approved: Yes
• Weight: 22.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 17.5 POUNDS
