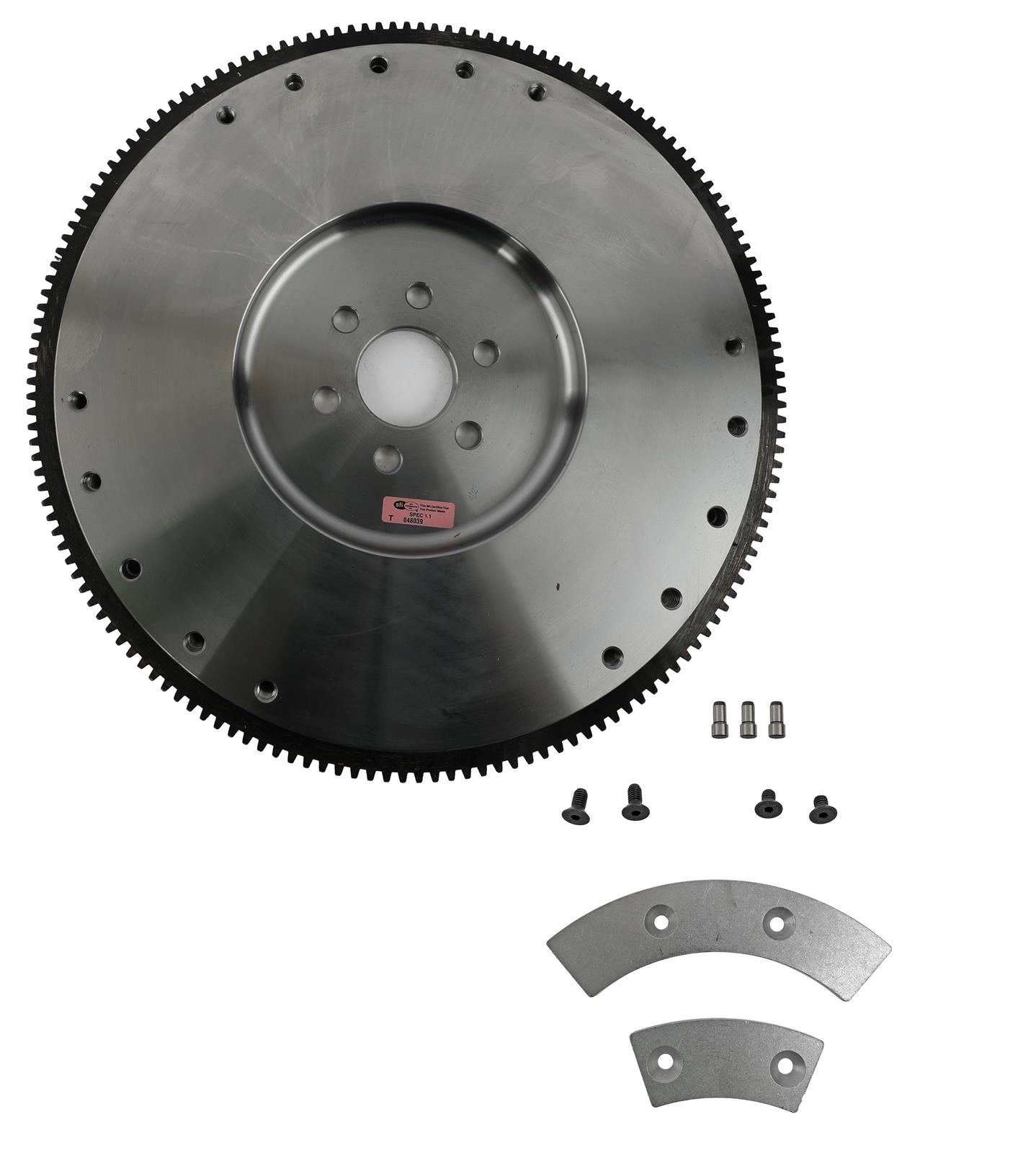

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Ford: 300 63 - 63 5.8 L Engine, Ford: 300 63 - 63 6.4 L Engine, Ford: 300 63 - 63 7 L Engine, Ford: Custom 64 - 67 5.8 L Engine, Ford: Custom 64 - 71 6.4 L Engine, Ford: Custom 64 - 70 7 L Engine
• Ford: Torino 68 - 70 7 L Engine
• Ford: F-100 60 - 63 5.4 L Engine, Ford: F-100 58 - 67 5.8 L Engine, Ford: F-100 68 - 75 5.9 L Engine, Ford: F-100 68 - 75 6.4 L Engine, Ford: F-150 75 - 76 5.9 L Engine
• Ford: F-150 75 - 76 6.4 L Engine, Ford: F-250 60 - 63 5.4 L Engine, Ford: F-250 58 - 67 5.8 L Engine, Ford: F-250 68 - 76 5.9 L Engine, Ford: F-250 68 - 76 6.4 L Engine
• Ford: F-350 60 - 63 5.4 L Engine, Ford: F-350 58 - 67 5.8 L Engine, Ford: F-350 64 - 76 5.9 L Engine, Ford: F-350 68 - 76 6.4 L Engine, Ford: Fairlane 58 - 59 5.4 L Engine
• Ford: Fairlane 58 - 66 5.8 L Engine, Ford: Fairlane 61 - 69 6.4 L Engine, Ford: Fairlane 64 - 69 7 L Engine, Ford: GT40 66 - 69 7 L Engine, Ford: Galaxie 59 - 59 5.4 L Engine
• Ford: Galaxie 59 - 67 5.8 L Engine, Ford: Galaxie 61 - 67 6.4 L Engine, Ford: Galaxie 63 - 67 7 L Engine, Ford: Galaxie 500 68 - 71 6.4 L Engine, Ford: Galaxie 500 68 - 70 7 L Engine
• Ford: LTD 66 - 67 5.8 L Engine, Ford: LTD 66 - 71 6.4 L Engine, Ford: LTD 66 - 70 7 L Engine, Ford: M-400 72 - 73 5.9 L Engine, Ford: M-400 72 - 73 6.4 L Engine, Ford: Mustang 67 - 69 6.4 L Engine
• Ford: Mustang 68 - 70 7 L Engine, Ford: P-350 65 - 67 5.8 L Engine, Ford: P-350 68 - 74 5.9 L Engine, Ford: P-350 68 - 74 6.4 L Engine, Ford: Ranchero 58 - 67 5.8 L Engine
• Ford: Ranchero 67 - 69 6.4 L Engine, Ford: Ranchero 68 - 69 7 L Engine, Ford: Thunderbird 58 - 59 5.4 L Engine, Ford: Thunderbird 58 - 60 5.8 L Engine, Ford: Torino 68 - 70 6.4 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753011831
• Counter Weight Kit Included: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000/11.500/12.000 in.
• Engine Balance: Internal/External
• Flywheel Material: Billet steel
• Make: Ford
• Marine Use: No
• Notes: 1986-Up 10.5In. Mustang Diaphragm w/Dowel Pins clutch pattern.
• Pressure Plate Style: Borg & Beck/Diaphragm/Long
• Quantity: Sold individually.
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 184-tooth
• SFI 1.1 Approved: Yes
• Weight: 28.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 POUNDS
