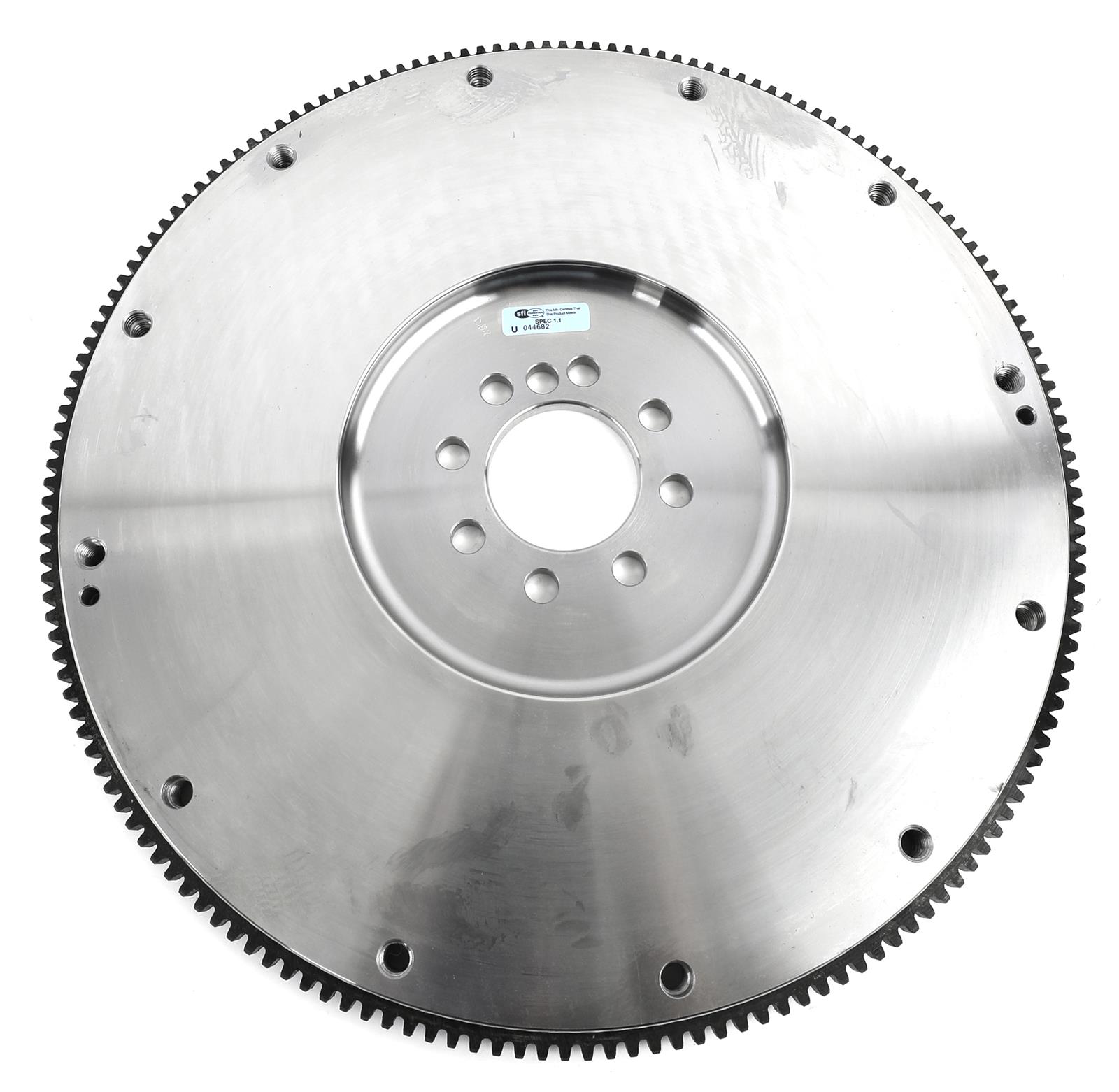

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Retro Fit Applications Only

Attributes:

• Brand Name: McLeod
• GTIN: 00887753317216
• Crankshaft to Flywheel Bolt Quantity: 9-bolt
• Disc Diameter (in.): 11.000/12.000 in.
• Engine: 2009-13 LS9 9 Bolt Crank (Retro Fit Application Only)
• Engine Balance: Internal
• Flywheel Material: Billet steel
• Make: Chevrolet
• Marine Use: No
• Notes: .400In. of material added to face to put clutch assembly in same position as SBC/BBC.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 1-piece
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 168-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: United States
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 POUNDS
