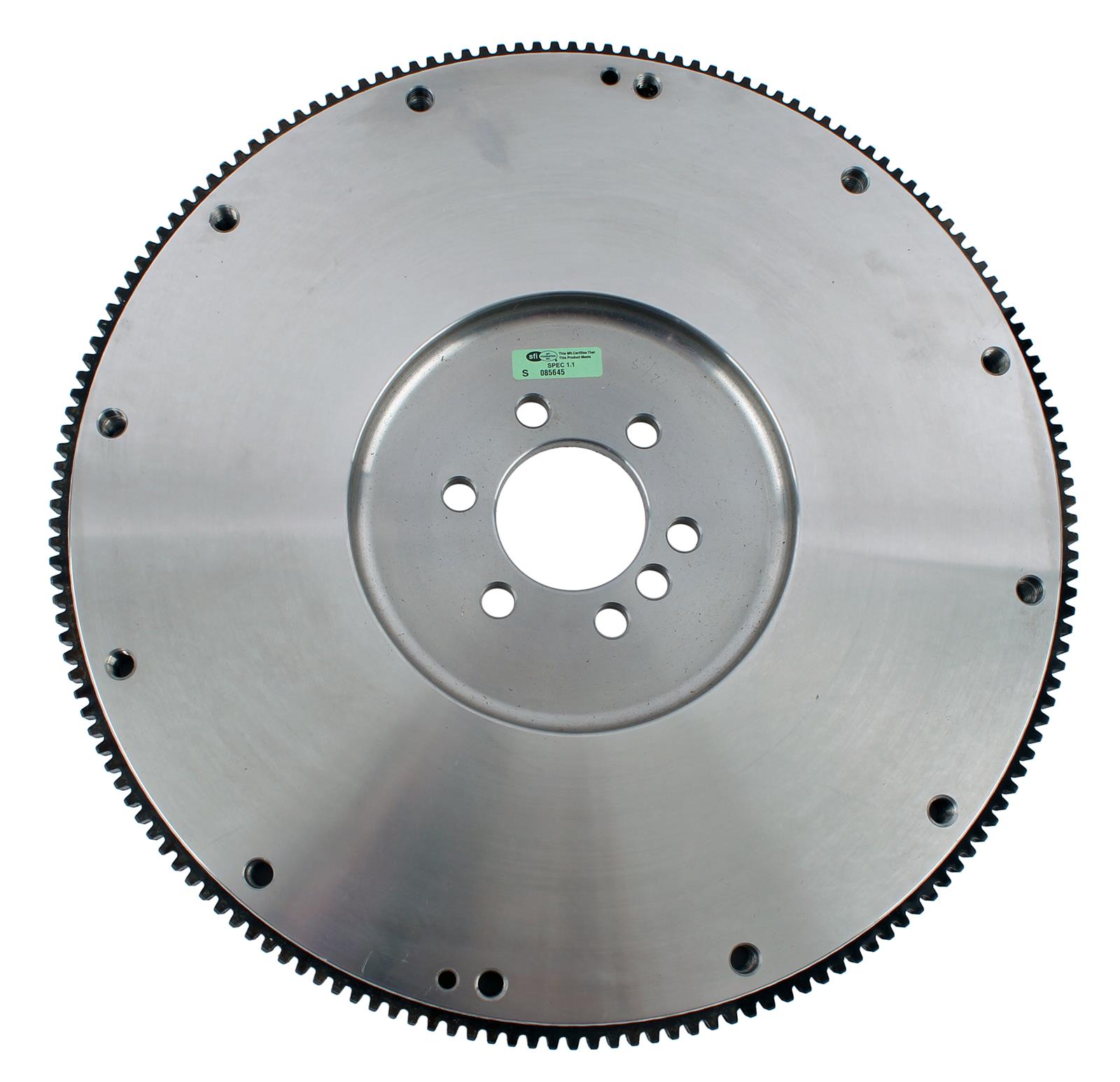

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
• Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Chevrolet: Silverado 1500 01 - 06 4.8 L Engine, Chevrolet: Silverado 1500 01 - 06 5.3 L Engine
• Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine
• Chevrolet: Silverado 2500 01 - 04 6 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine, Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Silverado 3500 01 - 06 6 L Engine
• Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, GMC: Sierra 1500 01 - 06 4.8 L Engine, GMC: Sierra 1500 01 - 06 5.3 L Engine, GMC: Sierra 1500 04 - 05 6 L Engine
• GMC: Sierra 1500 Classic 07 - 07 4.8 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine, GMC: Sierra 2500 01 - 04 6 L Engine, GMC: Sierra 2500 HD 01 - 06 6 L Engine
• GMC: Sierra 2500 HD Classic 07 - 07 6 L Engine, GMC: Sierra 3500 01 - 06 6 L Engine, GMC: Sierra 3500 Classic 07 - 07 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine
• Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753011718
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000/12.000 in.
• Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7
• Engine Balance: Internal
• Flywheel Material: Billet steel
• Make: Chevrolet
• Marine Use: No
• Notes: .400In. of material added to face to put clutch assembly in same position as SBC/BBC.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 1-piece
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 168-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 32 POUNDS
