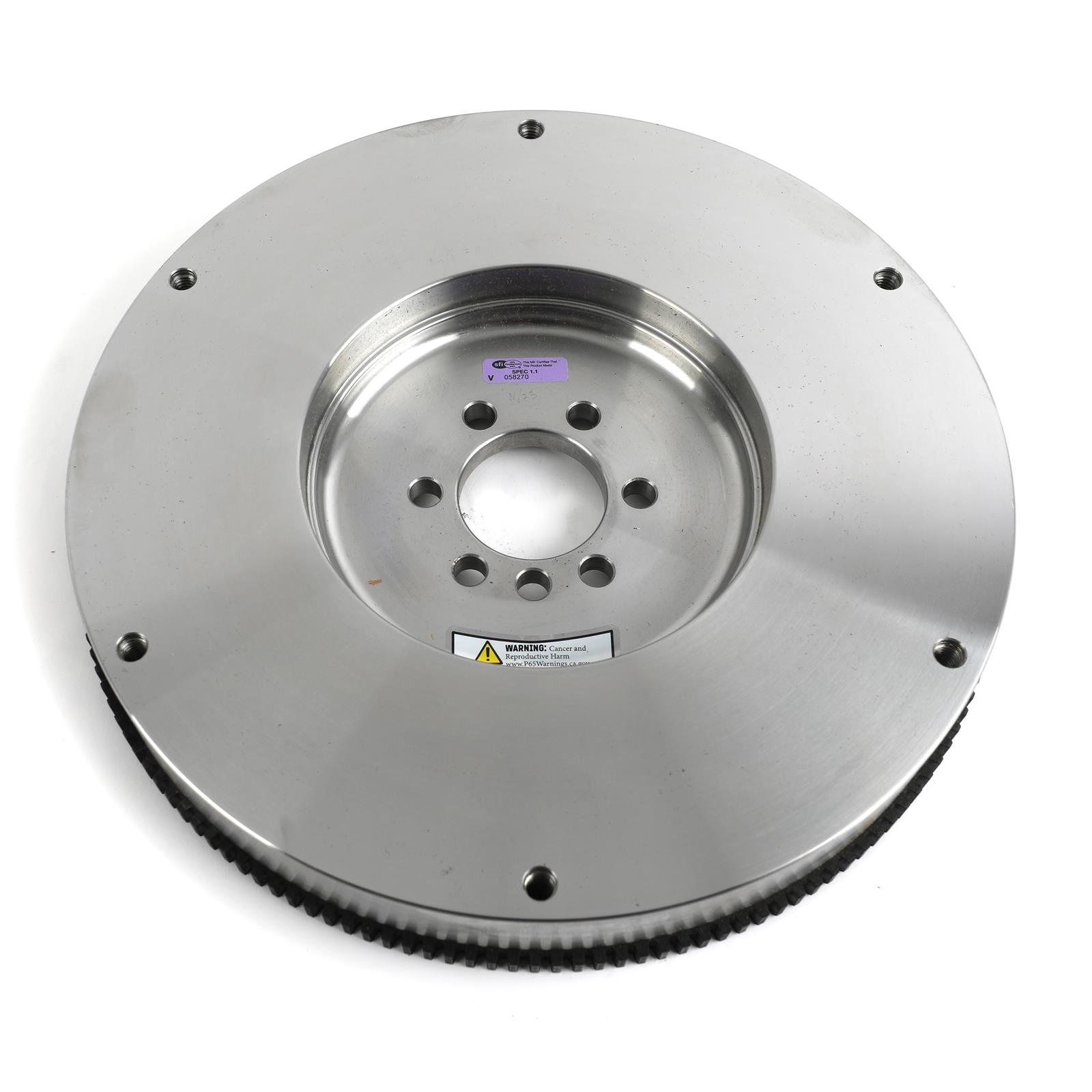

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Chevrolet: 1500 54 - 54 4.3 L Engine, Chevrolet: 3B 59 - 59 4.6 L Engine, Chevrolet: 3C 59 - 59 4.6 L Engine, Chevrolet: 3D 59 - 59 4.6 L Engine, Chevrolet: 3E 59 - 59 4.6 L Engine
• Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 61 - 61 6.7 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine
• Chevrolet: C10 75 - 78 4.1 L Engine, Chevrolet: C10 77 - 86 5 L Engine, Chevrolet: C10 75 - 86 5.7 L Engine, Chevrolet: C10 82 - 86 6.2 L Engine, Chevrolet: C10 76 - 80 6.6 L E
• Chevrolet: 3F 59 - 59 4.6 L Engine, Chevrolet: 3G 59 - 59 4.6 L Engine, Chevrolet: Bel Air 63 - 65 3.8 L Engine, Chevrolet: Bel Air 65 - 73 4.1 L Engine, Chevrolet: Bel Air 55 - 59 4.3 L Engine
• Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 59 - 69 5.3 L Engine, Chevrolet: Bel Air 58 - 75 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine
• Chevrolet: Bel Air 70 - 75 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 75 7.4 L Engine, Chevrolet: Biscayne 63 - 65 3.8 L Engine
• Chevrolet: Biscayne 65 - 72 4.1 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine
• Chevrolet: Biscayne 58 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine
• Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Blazer 69 - 74 4.1 L Engine, Chevrolet: Blazer 69 - 69 4.8 L Engine, Chevrolet: Blazer 69 - 73 5 L Engine
• Chevrolet: Blazer 69 - 74 5.7 L Engine, Chevrolet: Blazer 73 - 74 7.4 L Engine, Chevrolet: Brookwood 69 - 72 4.1 L Engine, Chevrolet: Brookwood 58 - 61 4.6 L Engine
• Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 58 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753011688
• Counter Weight Kit if Required: 560222 (sold separately)
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000
• Engine 1: 1955-85 SBC 2pc Seal (Large Register)
• Engine 2: 1970-1990 BBC 2pc Seal (Large Register)
• Engine 3: 1991-UP BBC 454,502,572 1pc Seal (Large Register)
• Engine Balance: Internal
• Flywheel Material: Billet steel
• Make: Chevrolet/Pontiac
• Marine Use: No
• Notes: This is a conversion flywheel to be used a 1993-97 LT-1 T-56 and a pull style clutch system.
• Pressure Plate Style: Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 2-piece
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 153-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 POUNDS
