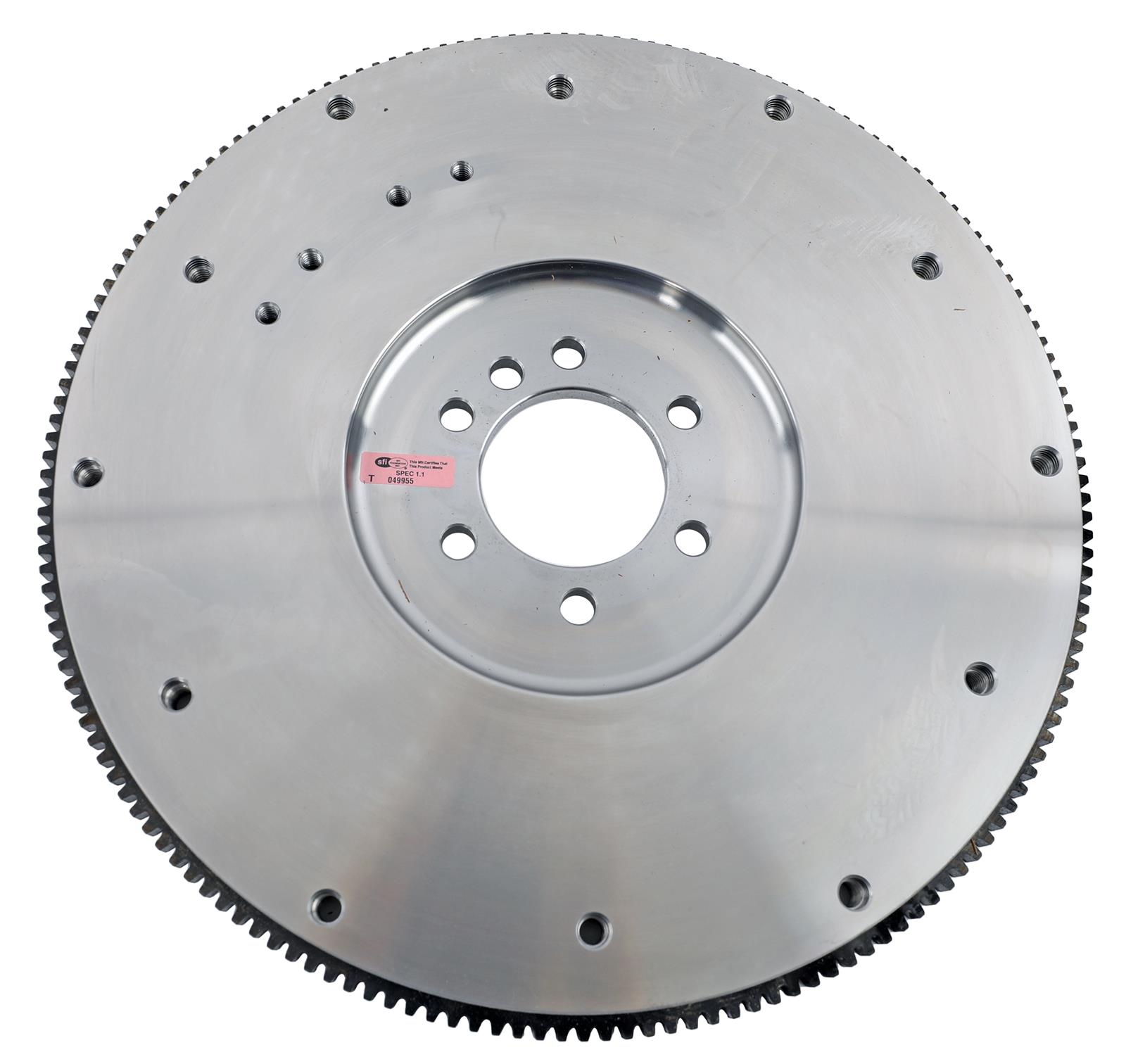

McLeod Steel Flywheels

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.

• • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Chevrolet: 3B 59 - 59 4.6 L Engine, Chevrolet: 3C 59 - 59 4.6 L Engine, Chevrolet: 3D 59 - 59 4.6 L Engine, Chevrolet: 3E 59 - 59 4.6 L Engine, Chevrolet: 3F 59 - 59 4.6 L Engine
• Chevrolet: Brookwood 61 - 61 6.7 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: C10 75 - 78 4.1 L Engine, Chevrolet: C10 77 - 85 5 L Engine
• Chevrolet: C10 75 - 85 5.7 L Engine, Chevrolet: C10 82 - 85 6.2 L Engine, Chevrolet: C10 76 - 80 6.6 L Engine, Chevrolet: C10 75 - 80 7.4 L En
• Chevrolet: 3G 59 - 59 4.6 L Engine, Chevrolet: Bel Air 63 - 65 3.8 L Engine, Chevrolet: Bel Air 65 - 73 4.1 L Engine, Chevrolet: Bel Air 55 - 59 4.3 L Engine, Chevrolet: Bel Air 57 - 67 4.6 L Engine
• Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 59 - 69 5.3 L Engine, Chevrolet: Bel Air 58 - 75 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 75 6.6 L Engine
• Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 75 7.4 L Engine, Chevrolet: Biscayne 63 - 65 3.8 L Engine, Chevrolet: Biscayne 65 - 72 4.1 L Engine
• Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 58 - 72 5.7 L Engine
• Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine
• Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Blazer 69 - 74 4.1 L Engine, Chevrolet: Blazer 69 - 69 4.8 L Engine, Chevrolet: Blazer 69 - 73 5 L Engine, Chevrolet: Blazer 69 - 74 5.7 L Engine
• Chevrolet: Blazer 73 - 74 7.4 L Engine, Chevrolet: Brookwood 69 - 72 4.1 L Engine, Chevrolet: Brookwood 58 - 61 4.6 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine
• Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 58 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753011633
• Counter Weight Kit if Required: 560222 (sold separately)
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 10.500/11.000/12.000 in.
• Engine 1: 1955-85 SBC 2pc Seal (Large Register)
• Engine 2: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
• Engine 3: 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
• Engine Balance: Internal
• Flywheel Material: Billet steel
• Make: Chevrolet
• Marine Use: No
• Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 2-piece
• Replaceable Friction Surface: No
• Ring Gear Tooth Quantity: 168-tooth
• SFI 1.1 Approved: Yes
• Weight: 30.000 lbs.

Extended Information:

• Country of Origin: TW
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 30 POUNDS
