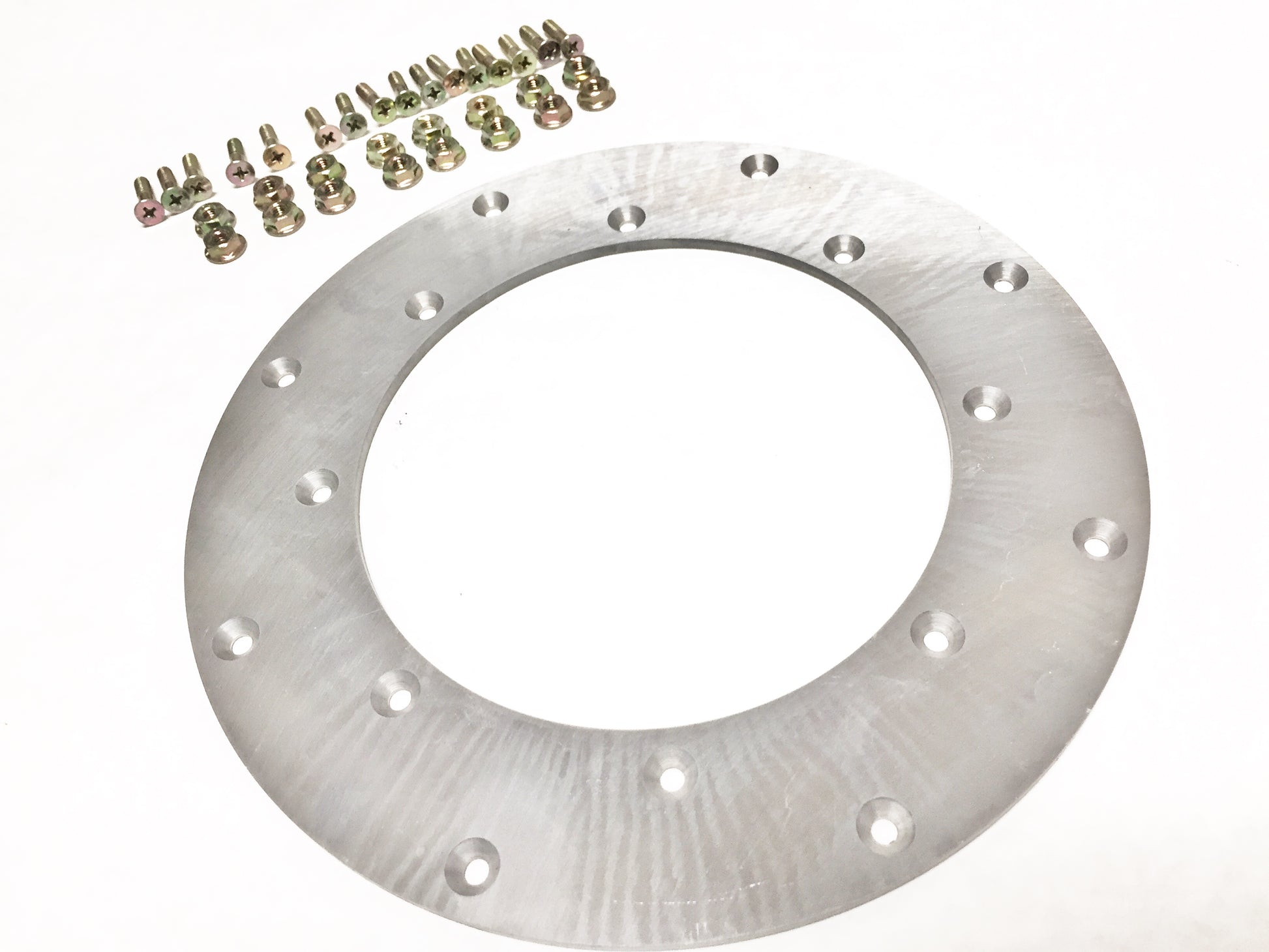

Mcleod Racing Flywheel Heat Shields

McLeod Racing Replacement Flywheel Friction Plates are constructed of incredibly strong A36 high carbon steel to deliver superior longevity and disc engagement. Each friction plate is heat-treated and meets high specifications for performance output. With McLeod Racing replacement flywheel heat shields, there is no need to resurface or replace the entire flywheel when changing or replacing the clutch, saving both time and money.

• The McLeod Racing removable heat shield allows users to replace the steel drive surface in the flywheel for a new drive surface when installing a new clutch system.

Vehicle Specific

• Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
• Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Chevrolet: Silverado 1500 01 - 06 4.8 L Engine, Chevrolet: Silverado 1500 01 - 06 5.3 L Engine
• Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine
• Chevrolet: Silverado 2500 01 - 04 6 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine, Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Silverado 3500 01 - 06 6 L Engine
• Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, GMC: Sierra 1500 01 - 06 4.8 L Engine, GMC: Sierra 1500 01 - 06 5.3 L Engine, GMC: Sierra 1500 04 - 05 6 L Engine
• GMC: Sierra 1500 Classic 07 - 07 4.8 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine, GMC: Sierra 2500 01 - 04 6 L Engine, GMC: Sierra 2500 HD 01 - 06 6 L Engine
• GMC: Sierra 2500 HD Classic 07 - 07 6 L Engine, GMC: Sierra 3500 01 - 06 6 L Engine, GMC: Sierra 3500 Classic 07 - 07 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine
• Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753676054
• Flywheel Insert Inside Diameter (in.): 6.125
• Flywheel Insert Material: Billet Steel
• Flywheel Insert Outside Diameter (in.): 12.000
• Hardware Included: Yes
• Mounting Hole Pattern: 20 Screws
• Note:: This replacement heat-shield kit is for McLeod Racing flywheels only! This kit will NOT transfer or convert a flywheel that was originally equipped with a riveted in heat-shield. For more info Call McLeod Tech at 714-630-2764
• Quantity: Sold individually.

Extended Information:

• Country of Origin: TW
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 5 POUNDS
