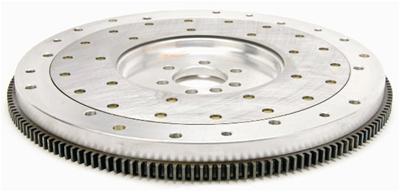

McLeod Aluminum Flywheels

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Ford: Mustang 11 - 17 3.7 L Engine, Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 11 - 17 5 L Engine, Ford: Mustang 00 - 00 5.4 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753012258
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 10.500/11.000 in.
• Engine: 1996-2017 4.6L/5.0L/5.4L, 2011-2017 3.7L 8 bolt crank
• Engine Balance: Internal
• Flywheel Material: Billet aluminum
• Make: Ford
• Marine Use: No
• Notes: This flywheel does NOT contain 2012-Up GT/Boss 302 9 bolt pressure plate pattern.
• Pressure Plate Style: Diaphragm
• Quantity: Sold individually.
• Replaceable Friction Surface: Yes
• Ring Gear Tooth Quantity: 164-tooth
• SFI 1.1 Approved: Yes
• Weight: 15.000 lbs.

Extended Information:

• Country of Origin: TW
• Emissions : 1

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 13 POUNDS
